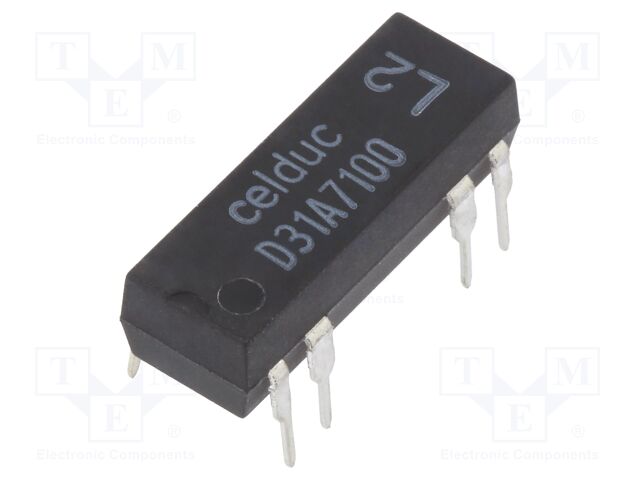

D31A7100 CELDUC
Hersteller: CELDUC
Category: Reed Electromagnetic Relays
Description: Relay: reed switch; SPST-NO; Ucoil: 24VDC; 1A; max.100VDC; 10W; PCB
Type of relay: reed switch
Contacts configuration: SPST-NO
Rated coil voltage: 24V DC
Contact current max.: 1A
Switched voltage: max. 100V DC
Coil resistance: 2.15kΩ
Mounting: PCB
Manufacturer series: D31A.1.0
Contact resistance: 0.15Ω
Operating temperature: -40...70°C
Body dimensions: 19.9x7.62x5.5mm
Terminal pitch: 2.54mm
Switching capacity: 10W
Coil voltage min.: 18V DC
Coil voltage max.: 32V DC
Case: DIP14
| Anzahl | Preis |
|---|---|
| 14+ | 5.31 EUR |
| 15+ | 4.99 EUR |
| 50+ | 4.69 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details D31A7100 CELDUC
Category: Reed Electromagnetic Relays, Description: Relay: reed switch; SPST-NO; Ucoil: 24VDC; 1A; max.100VDC; 10W; PCB, Type of relay: reed switch, Contacts configuration: SPST-NO, Rated coil voltage: 24V DC, Contact current max.: 1A, Switched voltage: max. 100V DC, Coil resistance: 2.15kΩ, Mounting: PCB, Manufacturer series: D31A.1.0, Contact resistance: 0.15Ω, Operating temperature: -40...70°C, Body dimensions: 19.9x7.62x5.5mm, Terminal pitch: 2.54mm, Switching capacity: 10W, Coil voltage min.: 18V DC, Coil voltage max.: 32V DC, Case: DIP14.
Weitere Produktangebote D31A7100 nach Preis ab 10.21 EUR bis 10.21 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis |
||
|---|---|---|---|---|---|---|---|
 |
D31A7100 | Celduc Inc. |
Description: REED RELAY 1A/24V Packaging: Tube Mounting Type: Through Hole Coil Voltage: 24VDC Operating Temperature: -40°C ~ 70°C Termination Style: PC Pin Coil Current: 11.2 mA Coil Type: Non Latching Contact Material: Rhodium (Rh) Contact Form: SPST-NO (1 Form A) Contact Rating (Current): 500 mA Switching Voltage: 100VDC - Max Must Release Voltage: 2 VDC Must Operate Voltage: 18 VDC Operate Time: 1 ms Release Time: 50 µs Part Status: Active |
auf Bestellung 112 Stücke: Lieferzeit 10-14 Tag (e) |
|
||
 |
D31A7100 | CELDUC |
Description: CELDUC - D31A7100 - Reed-Relais, SPST-NO, 24 VDC, D31A Series, Durchsteckmontage, 2.15 kohm, 500 mA tariffCode: 85364110 productTraceability: No Schaltspannung, max.: 100V rohsCompliant: YES Spulenwiderstand: 2.15kohm Relaismontage: Durchsteckmontage Schaltstrom, max.: 500mA Kontaktkonfiguration: SPST-NO Spulenspannung: 24VDC euEccn: NLR isCanonical: Y hazardous: false rohsPhthalatesCompliant: TBA usEccn: EAR99 Produktpalette: D31A Series SVHC: No SVHC (27-Jun-2024) |
auf Bestellung 82 Stücke: Lieferzeit 14-21 Tag (e) |
Im Einkaufswagen Stück im Wert von UAH |
| D31A7100 |
|
Hersteller: Celduc Inc.
Description: REED RELAY 1A/24V
Packaging: Tube
Mounting Type: Through Hole
Coil Voltage: 24VDC
Operating Temperature: -40°C ~ 70°C
Termination Style: PC Pin
Coil Current: 11.2 mA
Coil Type: Non Latching
Contact Material: Rhodium (Rh)
Contact Form: SPST-NO (1 Form A)
Contact Rating (Current): 500 mA
Switching Voltage: 100VDC - Max
Must Release Voltage: 2 VDC
Must Operate Voltage: 18 VDC
Operate Time: 1 ms
Release Time: 50 µs
Part Status: Active
Description: REED RELAY 1A/24V
Packaging: Tube
Mounting Type: Through Hole
Coil Voltage: 24VDC
Operating Temperature: -40°C ~ 70°C
Termination Style: PC Pin
Coil Current: 11.2 mA
Coil Type: Non Latching
Contact Material: Rhodium (Rh)
Contact Form: SPST-NO (1 Form A)
Contact Rating (Current): 500 mA
Switching Voltage: 100VDC - Max
Must Release Voltage: 2 VDC
Must Operate Voltage: 18 VDC
Operate Time: 1 ms
Release Time: 50 µs
Part Status: Active
auf Bestellung 112 Stücke:
Lieferzeit 10-14 Tag (e)| Anzahl | Preis |
|---|---|
| 2+ | 10.21 EUR |
| D31A7100 |
|
Hersteller: CELDUC
Description: CELDUC - D31A7100 - Reed-Relais, SPST-NO, 24 VDC, D31A Series, Durchsteckmontage, 2.15 kohm, 500 mA
tariffCode: 85364110
productTraceability: No
Schaltspannung, max.: 100V
rohsCompliant: YES
Spulenwiderstand: 2.15kohm
Relaismontage: Durchsteckmontage
Schaltstrom, max.: 500mA
Kontaktkonfiguration: SPST-NO
Spulenspannung: 24VDC
euEccn: NLR
isCanonical: Y
hazardous: false
rohsPhthalatesCompliant: TBA
usEccn: EAR99
Produktpalette: D31A Series
SVHC: No SVHC (27-Jun-2024)
Description: CELDUC - D31A7100 - Reed-Relais, SPST-NO, 24 VDC, D31A Series, Durchsteckmontage, 2.15 kohm, 500 mA
tariffCode: 85364110
productTraceability: No
Schaltspannung, max.: 100V
rohsCompliant: YES
Spulenwiderstand: 2.15kohm
Relaismontage: Durchsteckmontage
Schaltstrom, max.: 500mA
Kontaktkonfiguration: SPST-NO
Spulenspannung: 24VDC
euEccn: NLR
isCanonical: Y
hazardous: false
rohsPhthalatesCompliant: TBA
usEccn: EAR99
Produktpalette: D31A Series
SVHC: No SVHC (27-Jun-2024)
auf Bestellung 82 Stücke:
Lieferzeit 14-21 Tag (e)Im Einkaufswagen Stück im Wert von UAH
