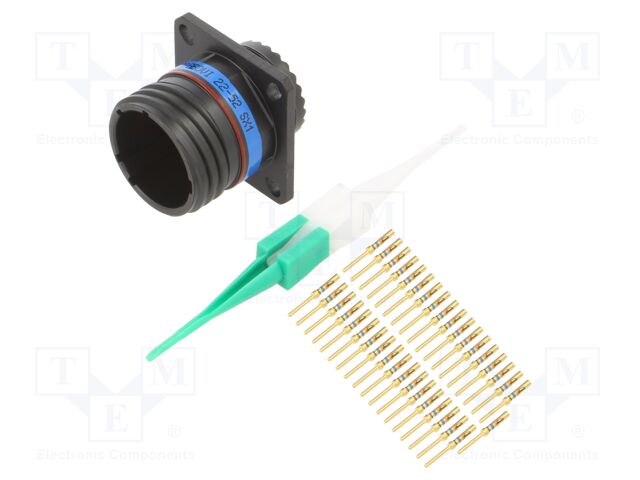

D38999/20ZD35PN AMPHENOL AIR

Category: D38999 Series III connectors
Description: Connector: military; socket; male; PIN: 37; straight; crimped; 5A
Connector: socket
Kind of connector: male
Contact plating: gold-plated
Case: size 15
Enclosure material: aluminium alloy
Current rating: 5A
Number of pins: 37
Connector variant: with contacts
Conform to the norm: MIL-DTL-38999; Military Standard
Wire cross-section: 0.095...0.38mm2
Wire size: 28AWG...22AWG
Body coating: zinc nickel
Locking system: external thread; threaded joint
Electrical mounting: crimped
Mechanical mounting: flange (4 holes); for panel mounting
Manufacturer series: MIL-DTL-38999 Series III
Spatial orientation: straight
Contact size: 22D
Colour: black
Type of connector: military
auf Bestellung 6 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl | Preis |
---|---|
2+ | 52.54 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details D38999/20ZD35PN AMPHENOL AIR
Category: D38999 Series III connectors, Description: Connector: military; socket; male; PIN: 37; straight; crimped; 5A, Connector: socket, Kind of connector: male, Contact plating: gold-plated, Case: size 15, Enclosure material: aluminium alloy, Current rating: 5A, Number of pins: 37, Connector variant: with contacts, Conform to the norm: MIL-DTL-38999; Military Standard, Wire cross-section: 0.095...0.38mm2, Wire size: 28AWG...22AWG, Body coating: zinc nickel, Locking system: external thread; threaded joint, Electrical mounting: crimped, Mechanical mounting: flange (4 holes); for panel mounting, Manufacturer series: MIL-DTL-38999 Series III, Spatial orientation: straight, Contact size: 22D, Colour: black, Type of connector: military, Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote D38999/20ZD35PN nach Preis ab 50.52 EUR bis 360.41 EUR
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis | ||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
D38999/20ZD35PN | Hersteller : AMPHENOL AIR |
![]() Description: Connector: military; socket; male; PIN: 37; straight; crimped; 5A Connector: socket Kind of connector: male Contact plating: gold-plated Case: size 15 Enclosure material: aluminium alloy Current rating: 5A Number of pins: 37 Connector variant: with contacts Conform to the norm: MIL-DTL-38999; Military Standard Wire cross-section: 0.095...0.38mm2 Wire size: 28AWG...22AWG Body coating: zinc nickel Locking system: external thread; threaded joint Electrical mounting: crimped Mechanical mounting: flange (4 holes); for panel mounting Manufacturer series: MIL-DTL-38999 Series III Spatial orientation: straight Contact size: 22D Colour: black Type of connector: military Anzahl je Verpackung: 1 Stücke |
auf Bestellung 6 Stücke: Lieferzeit 7-14 Tag (e) |
|
||||||||
![]() |
D38999/20ZD35PN | Hersteller : Amphenol Aerospace |
![]() |
auf Bestellung 7 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||
![]() |
D38999/20ZD35PN | Hersteller : Amphenol Aerospace Operations |
![]() Packaging: Bag Connector Type: Receptacle, Male Pins Color: Black Current Rating (Amps): 5A Mounting Type: Panel Mount Shielding: Shielded Number of Positions: 37 Orientation: N (Normal) Shell Size - Insert: 15-35 Operating Temperature: -65°C ~ 175°C Fastening Type: Threaded Termination: Crimp Ingress Protection: IP67 - Dust Tight, Waterproof Mounting Feature: Flange Shell Size, MIL: D Contact Finish - Mating: Gold Shell Material: Aluminum Shell Finish: Black Zinc Nickel Primary Material: Metal Grade: Military Qualification: MIL-DTL-38999 Series III |
auf Bestellung 8 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||
![]() |
D38999/20ZD35PN | Hersteller : Amphenol |
![]() |
Produkt ist nicht verfügbar |
|||||||||
D3899920ZD35PN | Hersteller : Souriau | Circular MIL Spec Connector |
Produkt ist nicht verfügbar |
||||||||||
|
D38999/20ZD35PN | Hersteller : TE Connectivity / DEUTSCH |
![]() |
Produkt ist nicht verfügbar |
