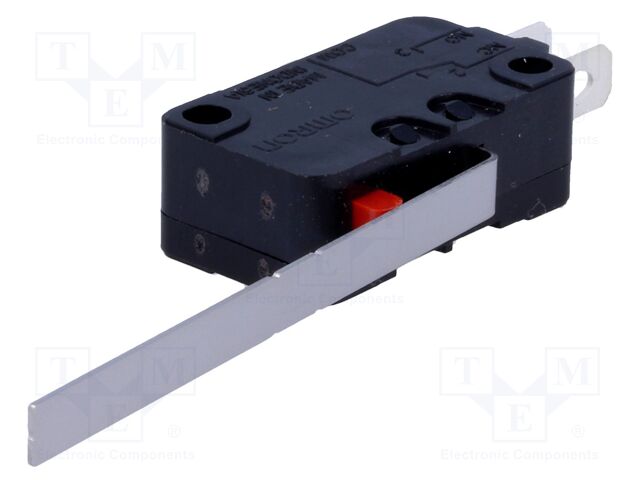

D3V-163-1A4 OMRON Electronic Components
Hersteller: OMRON Electronic Components
Category: Microswitches SNAP ACTION
Description: Microswitch SNAP ACTION; 16A/250VAC; 10A/30VDC; with lever; SPDT
Type of switch: microswitch SNAP ACTION
AC contacts rating @R: 16A / 250V AC
Switches features: with lever
Contacts configuration: SPDT
Switching method: ON-(ON)
Number of positions: 2
Manufacturer series: D3V
Stable positions number: 1
IP rating: IP40
Leads: connectors; for soldering
Body dimensions: 27.8x10.3x15.9mm
Operating temperature: -25...105°C
Operating Force: 0.98N
Lever length: 50.9mm
Contact plating: silver plated
DC contacts rating @R: 10A / 30V DC
Electrical life: 100000 cycles
Mechanical durability: 10000000 cycles
Min. insulation resistance: 0.1GΩ
Max. contact resistance:: 30mΩ
Leads dimensions: 4.75x0.5mm
| Anzahl | Preis |
|---|---|
| 45+ | 1.62 EUR |
| 47+ | 1.53 EUR |
| 49+ | 1.47 EUR |
| 52+ | 1.39 EUR |
| 55+ | 1.3 EUR |
| 100+ | 1.24 EUR |
| 300+ | 1.19 EUR |
| 500+ | 1.16 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details D3V-163-1A4 OMRON Electronic Components
Category: Microswitches SNAP ACTION, Description: Microswitch SNAP ACTION; 16A/250VAC; 10A/30VDC; with lever; SPDT, Type of switch: microswitch SNAP ACTION, AC contacts rating @R: 16A / 250V AC, Switches features: with lever, Contacts configuration: SPDT, Switching method: ON-(ON), Number of positions: 2, Manufacturer series: D3V, Stable positions number: 1, IP rating: IP40, Leads: connectors; for soldering, Body dimensions: 27.8x10.3x15.9mm, Operating temperature: -25...105°C, Operating Force: 0.98N, Lever length: 50.9mm, Contact plating: silver plated, DC contacts rating @R: 10A / 30V DC, Electrical life: 100000 cycles, Mechanical durability: 10000000 cycles, Min. insulation resistance: 0.1GΩ, Max. contact resistance:: 30mΩ, Leads dimensions: 4.75x0.5mm.
Weitere Produktangebote D3V-163-1A4 nach Preis ab 4.23 EUR bis 5.81 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Preis |
||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
D3V-163-1A4 | Omron Electronics Inc-EMC Div |
Description: SWITCH SNAP ACTION SPDT 16A 250V Voltage Rating - DC: 125 V Voltage Rating - AC: 250 V Part Status: Active Operating Position: 0.600" (15.2mm) Overtravel: 0.125" (3.2mm) Differential Travel: 0.110" (2.8mm) Pretravel: 0.354" (9.0mm) Ingress Protection: IP40 Operating Force: 35gf Actuator Type: Lever, Straight Termination Style: Solder, Quick Connect - 0.187" (4.7mm) Operating Temperature: -25°C ~ 105°C Switch Function: On-Mom Circuit: SPDT Mounting Type: Chassis Mount Current Rating (Amps): 16A (AC), 600mA (DC) Packaging: Bulk |
auf Bestellung 56 Stücke: Lieferzeit 10-14 Tag (e) |
|
| D3V-163-1A4 |
|
Hersteller: Omron Electronics Inc-EMC Div
Description: SWITCH SNAP ACTION SPDT 16A 250V
Voltage Rating - DC: 125 V
Voltage Rating - AC: 250 V
Part Status: Active
Operating Position: 0.600" (15.2mm)
Overtravel: 0.125" (3.2mm)
Differential Travel: 0.110" (2.8mm)
Pretravel: 0.354" (9.0mm)
Ingress Protection: IP40
Operating Force: 35gf
Actuator Type: Lever, Straight
Termination Style: Solder, Quick Connect - 0.187" (4.7mm)
Operating Temperature: -25°C ~ 105°C
Switch Function: On-Mom
Circuit: SPDT
Mounting Type: Chassis Mount
Current Rating (Amps): 16A (AC), 600mA (DC)
Packaging: Bulk
Description: SWITCH SNAP ACTION SPDT 16A 250V
Voltage Rating - DC: 125 V
Voltage Rating - AC: 250 V
Part Status: Active
Operating Position: 0.600" (15.2mm)
Overtravel: 0.125" (3.2mm)
Differential Travel: 0.110" (2.8mm)
Pretravel: 0.354" (9.0mm)
Ingress Protection: IP40
Operating Force: 35gf
Actuator Type: Lever, Straight
Termination Style: Solder, Quick Connect - 0.187" (4.7mm)
Operating Temperature: -25°C ~ 105°C
Switch Function: On-Mom
Circuit: SPDT
Mounting Type: Chassis Mount
Current Rating (Amps): 16A (AC), 600mA (DC)
Packaging: Bulk
auf Bestellung 56 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 4+ | 5.81 EUR |
| 10+ | 4.82 EUR |
| 25+ | 4.47 EUR |
| 50+ | 4.23 EUR |
