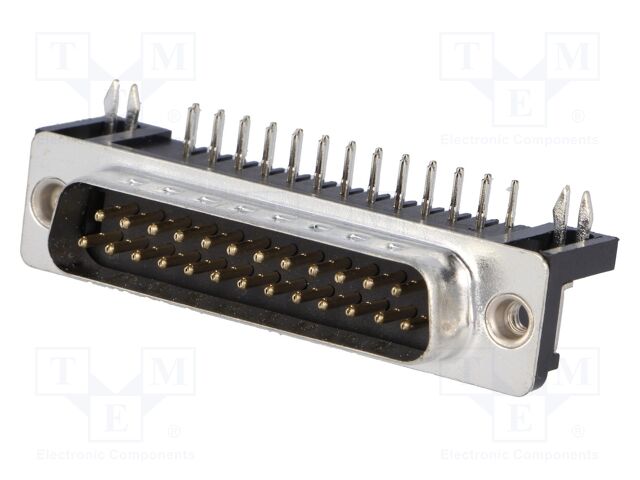

DB25-PL-24 ADAM TECH
Hersteller: ADAM TECH
Category: D-Sub plugs and sockets
Description: Connector: D-Sub; PIN: 25; socket; male; angled 90°; THT; UNC 4-40
Type of connector: D-Sub
Number of pins: 25
Connector: socket
Kind of connector: male
Spatial orientation: angled 90°
Electrical mounting: THT
Connector variant: 7,2mm standard
Locking system: screws
Thread: UNC 4-40
Operating temperature: -55...105°C
Max. contact resistance:: 20mΩ
Current rating: 3A
| Anzahl | Privatkunde |
|---|---|
| 45+ | 1.9 EUR |
| 52+ | 1.67 EUR |
| 55+ | 1.57 EUR |
| 57+ | 1.5 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details DB25-PL-24 ADAM TECH
Description: CONN D-SUB PLUG 25POS R/A SOLDER, Features: Board Lock, Grounding Indents, Packaging: Tray, Connector Type: Plug, Male Pins, Contact Finish: Gold, Current Rating (Amps): 3A, Mounting Type: Through Hole, Right Angle, Number of Positions: 25, Number of Rows: 2, Flange Feature: Housing/Shell (4-40), Termination: Solder, Connector Style: D-Sub, Contact Finish Thickness: FLASH, Material Flammability Rating: UL94 V-0, Shell Material, Finish: Steel, Tin Plated, Shell Size, Connector Layout: 3 (DB, B), Part Status: Active, Backset Spacing: 0.319" (8.10mm).
Weitere Produktangebote DB25-PL-24 nach Preis ab 2.51 EUR bis 4.65 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
DB25-PL-24 | Adam Tech |
Description: CONN D-SUB PLUG 25POS R/A SOLDER Features: Board Lock, Grounding Indents Packaging: Tray Connector Type: Plug, Male Pins Contact Finish: Gold Current Rating (Amps): 3A Mounting Type: Through Hole, Right Angle Number of Positions: 25 Number of Rows: 2 Flange Feature: Housing/Shell (4-40) Termination: Solder Connector Style: D-Sub Contact Finish Thickness: FLASH Material Flammability Rating: UL94 V-0 Shell Material, Finish: Steel, Tin Plated Shell Size, Connector Layout: 3 (DB, B) Part Status: Active Backset Spacing: 0.319" (8.10mm) |
auf Bestellung 2039 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||||
 |
DB25-PL-24 | Adam Tech |
D-Sub Standard Connectors CONN D-SUB PLUG 25POS R/A SLDR |
auf Bestellung 777 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||||
 |
DB25-PL-24 | Adam Technologies |
Conn D-Sub PIN 25 POS 1.38mm Solder RA Thru-Hole 25 Terminal 1 Port Tray |
auf Bestellung 67 Stücke: Lieferzeit 14-21 Tag (e) |
Mindestbestellmenge: 48 Stücke Im Einkaufswagen Stück im Wert von UAH |
| DB25-PL-24 |
|
Hersteller: Adam Tech
Description: CONN D-SUB PLUG 25POS R/A SOLDER
Features: Board Lock, Grounding Indents
Packaging: Tray
Connector Type: Plug, Male Pins
Contact Finish: Gold
Current Rating (Amps): 3A
Mounting Type: Through Hole, Right Angle
Number of Positions: 25
Number of Rows: 2
Flange Feature: Housing/Shell (4-40)
Termination: Solder
Connector Style: D-Sub
Contact Finish Thickness: FLASH
Material Flammability Rating: UL94 V-0
Shell Material, Finish: Steel, Tin Plated
Shell Size, Connector Layout: 3 (DB, B)
Part Status: Active
Backset Spacing: 0.319" (8.10mm)
Description: CONN D-SUB PLUG 25POS R/A SOLDER
Features: Board Lock, Grounding Indents
Packaging: Tray
Connector Type: Plug, Male Pins
Contact Finish: Gold
Current Rating (Amps): 3A
Mounting Type: Through Hole, Right Angle
Number of Positions: 25
Number of Rows: 2
Flange Feature: Housing/Shell (4-40)
Termination: Solder
Connector Style: D-Sub
Contact Finish Thickness: FLASH
Material Flammability Rating: UL94 V-0
Shell Material, Finish: Steel, Tin Plated
Shell Size, Connector Layout: 3 (DB, B)
Part Status: Active
Backset Spacing: 0.319" (8.10mm)
auf Bestellung 2039 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 6+ | 4.08 EUR |
| 10+ | 3.47 EUR |
| 25+ | 3.26 EUR |
| 50+ | 3.09 EUR |
| 100+ | 2.95 EUR |
| 250+ | 2.77 EUR |
| 500+ | 2.63 EUR |
| 1000+ | 2.51 EUR |
| DB25-PL-24 |
|
Hersteller: Adam Tech
D-Sub Standard Connectors CONN D-SUB PLUG 25POS R/A SLDR
D-Sub Standard Connectors CONN D-SUB PLUG 25POS R/A SLDR
auf Bestellung 777 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 1+ | 4.65 EUR |
| 10+ | 3.71 EUR |
| 50+ | 3.53 EUR |
| 100+ | 3.36 EUR |
| 250+ | 3.17 EUR |
| 500+ | 3 EUR |
| 1000+ | 2.76 EUR |
| DB25-PL-24 |
|
Hersteller: Adam Technologies
Conn D-Sub PIN 25 POS 1.38mm Solder RA Thru-Hole 25 Terminal 1 Port Tray
Conn D-Sub PIN 25 POS 1.38mm Solder RA Thru-Hole 25 Terminal 1 Port Tray
auf Bestellung 67 Stücke:
Lieferzeit 14-21 Tag (e)
