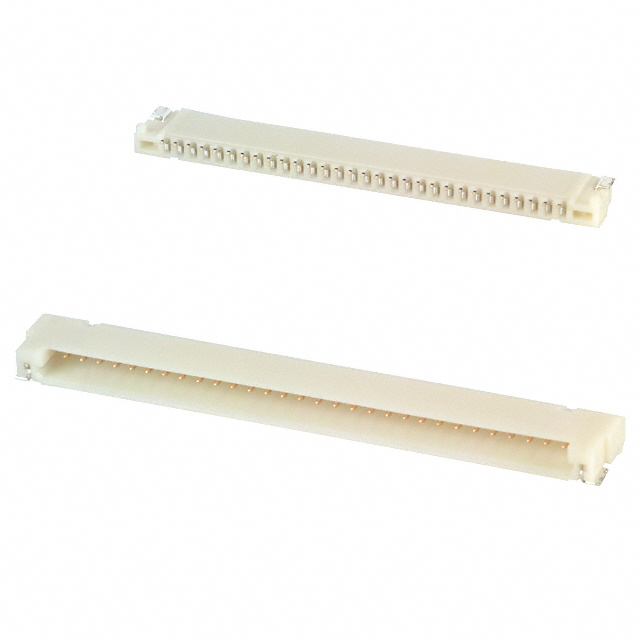

DF14-30P-1.25H(55) Hirose

Description: CONN HEADER SMD R/A 30POS 1.25MM, Contact Length - Mating: 0.086" (2.20mm), Insulation Material: Polyamide (PA), Nylon, Shrouding: Shrouded - 4 Wall, Insulation Height: 0.098" (2.50mm), Contact Shape: Square, Contact Finish - Post: Tin-Copper, Contact Finish Thickness - Mating: 3.90µin (0.099µm), Contact Finish - Mating: Gold, Pitch - Mating: 0.049" (1.25mm), Insulation Color: Beige, Contact Material: Brass, Material Flammability Rating: UL94 V-0, Termination: Solder, Number of Positions Loaded: All, Fastening Type: Push-Pull, Contact Type: Male Pin, Operating Temperature: -35°C ~ 85°C, Style: Board to Cable/Wire, Number of Rows: 1, Number of Positions: 30, Mounting Type: Surface Mount, Right Angle, Current Rating (Amps): 1A, Voltage Rating: 150V, Connector Type: Header, Features: Board Guide, Solder Retention, Packaging: Tube.
