Produkte > DEGSON ELECTRONICS > DG107V-7.62-03P-14-00AH
DG107V-7.62-03P-14-00AH

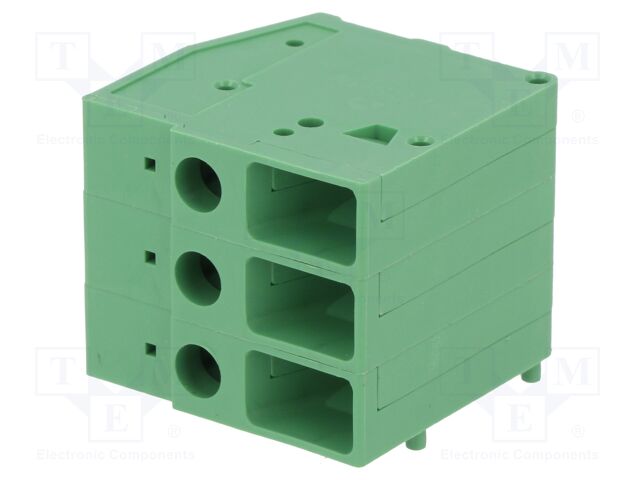

DG107V-7.62-03P-14-00AH DEGSON ELECTRONICS

pVersion=0046&contRep=ZT&docId=005056AB752F1ED6B08D3349377F9E27&compId=DG107V-7.62.pdf?ci_sign=f6a9403fe6abac43a34498fd240ac8168ef6a301 Hersteller: DEGSON ELECTRONICS
Category: PCB terminal blocks
Description: Connector: PCB terminal block; terminal; 32A; 630V; straight; 1x3
Spatial orientation: straight
Connectors features: assembling possibility
Colour: green
Contact material: copper
Electrical mounting: screw terminal; THT
Body material: polyamide 66
Mechanical mounting: on PCBs
Contact plating: tinned
Type of connector: PCB terminal block
Connector: terminal
Flammability rating: UL94V-0
Operating temperature: -40...105°C
Wire cross-section: 4mm2
Terminal pitch: 7.62x10.16mm
Contacts pitch: 7.62mm
Height: 26mm
Length: 22.86mm
Depth: 26mm
Number of ways: 3
Wire size: 24AWG...10AWG
Current rating: 32A
Rated voltage: 630V
Connector pinout layout: 1x3
Conform to the norm: UL
auf Bestellung 219 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
34+2.14 EUR
47+1.54 EUR
50+1.46 EUR
Mindestbestellmenge: 34
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details DG107V-7.62-03P-14-00AH DEGSON ELECTRONICS

Category: PCB terminal blocks, Description: Connector: PCB terminal block; terminal; 32A; 630V; straight; 1x3, Spatial orientation: straight, Connectors features: assembling possibility, Colour: green, Contact material: copper, Electrical mounting: screw terminal; THT, Body material: polyamide 66, Mechanical mounting: on PCBs, Contact plating: tinned, Type of connector: PCB terminal block, Connector: terminal, Flammability rating: UL94V-0, Operating temperature: -40...105°C, Wire cross-section: 4mm2, Terminal pitch: 7.62x10.16mm, Contacts pitch: 7.62mm, Height: 26mm, Length: 22.86mm, Depth: 26mm, Number of ways: 3, Wire size: 24AWG...10AWG, Current rating: 32A, Rated voltage: 630V, Connector pinout layout: 1x3, Conform to the norm: UL, Anzahl je Verpackung: 1 Stücke.
