Produkte > DEGSON ELECTRONICS > DG240W-2.54-02P-11-00A(H)

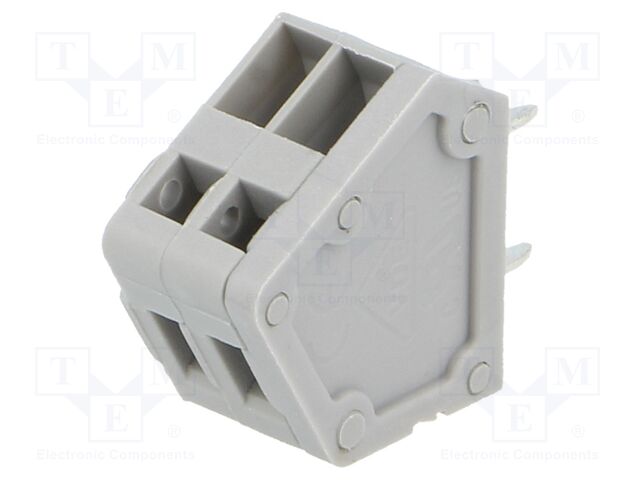

DG240W-2.54-02P-11-00A(H)

DG240W-2.54-02P-11-00A(H) DEGSON ELECTRONICS

pVersion=0046&contRep=ZT&docId=005056AB752F1ED6B3855547CDC6BE28&compId=dg240w.pdf?ci_sign=09ee1b678c98411b4b814caa8ba06941f1581b6a Hersteller: DEGSON ELECTRONICS
Category: PCB terminal blocks
Description: Connector: PCB terminal block; terminal; 4A; 150V; angled; on PCBs
Type of connector: PCB terminal block
Connector: terminal
Spatial orientation: angled
Mechanical mounting: on PCBs
Electrical mounting: spring clamp; THT
Contact material: phosphor bronze
Contact plating: tinned
Colour: grey
Body material: polyamide 66
Contacts pitch: 2.54mm
Number of ways: 2
Flammability rating: UL94V-0
Operating temperature: -40...105°C
Wire cross-section: 0.2...0.5mm2
Length: 6.53mm
Depth: 12.35mm
Height: 11.72mm
Current rating: 4A
Wire size: 28AWG...20AWG
Rated voltage: 150V
Connector pinout layout: 1x2
Conform to the norm: CE; UL
auf Bestellung 1531 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
159+0.45 EUR
190+0.38 EUR
215+0.33 EUR
600+0.3 EUR
Mindestbestellmenge: 159
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details DG240W-2.54-02P-11-00A(H) DEGSON ELECTRONICS

Category: PCB terminal blocks, Description: Connector: PCB terminal block; terminal; 4A; 150V; angled; on PCBs, Type of connector: PCB terminal block, Connector: terminal, Spatial orientation: angled, Mechanical mounting: on PCBs, Electrical mounting: spring clamp; THT, Contact material: phosphor bronze, Contact plating: tinned, Colour: grey, Body material: polyamide 66, Contacts pitch: 2.54mm, Number of ways: 2, Flammability rating: UL94V-0, Operating temperature: -40...105°C, Wire cross-section: 0.2...0.5mm2, Length: 6.53mm, Depth: 12.35mm, Height: 11.72mm, Current rating: 4A, Wire size: 28AWG...20AWG, Rated voltage: 150V, Connector pinout layout: 1x2, Conform to the norm: CE; UL, Anzahl je Verpackung: 1 Stücke.

Weitere Produktangebote DG240W-2.54-02P-11-00A(H) nach Preis ab 0.27 EUR bis 0.45 EUR

Foto Bezeichnung Hersteller Beschreibung Verfügbarkeit
Preis
DG240W-2.54-02P-11-00A(H) DG240W-2.54-02P-11-00A(H) Hersteller : DEGSON ELECTRONICS pVersion=0046&contRep=ZT&docId=005056AB752F1ED6B3855547CDC6BE28&compId=dg240w.pdf?ci_sign=09ee1b678c98411b4b814caa8ba06941f1581b6a Category: PCB terminal blocks
Description: Connector: PCB terminal block; terminal; 4A; 150V; angled; on PCBs
Type of connector: PCB terminal block
Connector: terminal
Spatial orientation: angled
Mechanical mounting: on PCBs
Electrical mounting: spring clamp; THT
Contact material: phosphor bronze
Contact plating: tinned
Colour: grey
Body material: polyamide 66
Contacts pitch: 2.54mm
Number of ways: 2
Flammability rating: UL94V-0
Operating temperature: -40...105°C
Wire cross-section: 0.2...0.5mm2
Length: 6.53mm
Depth: 12.35mm
Height: 11.72mm
Current rating: 4A
Wire size: 28AWG...20AWG
Rated voltage: 150V
Connector pinout layout: 1x2
Conform to the norm: CE; UL
Anzahl je Verpackung: 1 Stücke
auf Bestellung 1531 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl Preis
159+0.45 EUR
190+0.38 EUR
215+0.33 EUR
600+0.3 EUR
1800+0.27 EUR
Mindestbestellmenge: 159
Im Einkaufswagen  Stück im Wert von  UAH
