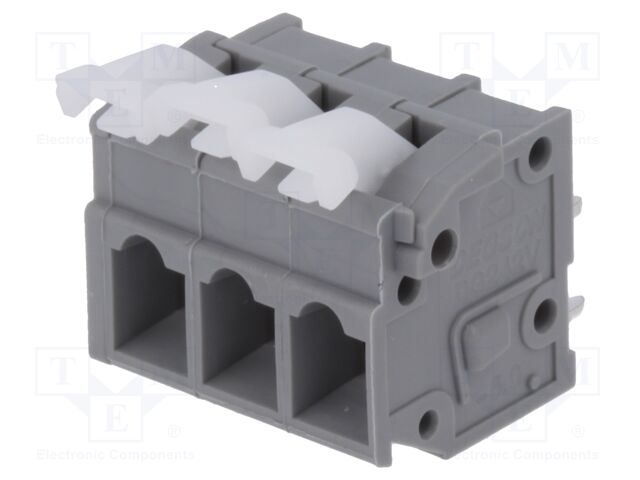

DG242V-5.0-03P-11-00AH DEGSON ELECTRONICS
Hersteller: DEGSON ELECTRONICS
Category: PCB terminal blocks
Description: PCB terminal block; straight; 5mm; ways: 3; on PCBs; 0.2÷2.5mm2
Connector: terminal
Type of connector: PCB terminal block
Contacts pitch: 5mm
Connector variant: with lever
Electrical mounting: spring clamp; THT
Mechanical mounting: on PCBs
Wire size: 28AWG...12AWG
Rated voltage: 300V
Current rating: 15A
Contact material: phosphor bronze
Contact plating: tinned
Flammability rating: UL94V-0
Operating temperature: -40...105°C
Connector pinout layout: 1x3
Spatial orientation: straight
Colour: grey
Wire cross-section: 0.2...2.5mm2
Body material: polyamide 66
Terminal pitch: 5x5mm
Height: 13.2mm
Depth: 14mm
Conform to the norm: CE; UL; VDE
Number of ways: 3
Category: PCB terminal blocks
Description: PCB terminal block; straight; 5mm; ways: 3; on PCBs; 0.2÷2.5mm2
Connector: terminal
Type of connector: PCB terminal block
Contacts pitch: 5mm
Connector variant: with lever
Electrical mounting: spring clamp; THT
Mechanical mounting: on PCBs
Wire size: 28AWG...12AWG
Rated voltage: 300V
Current rating: 15A
Contact material: phosphor bronze
Contact plating: tinned
Flammability rating: UL94V-0
Operating temperature: -40...105°C
Connector pinout layout: 1x3
Spatial orientation: straight
Colour: grey
Wire cross-section: 0.2...2.5mm2
Body material: polyamide 66
Terminal pitch: 5x5mm
Height: 13.2mm
Depth: 14mm
Conform to the norm: CE; UL; VDE
Number of ways: 3
auf Bestellung 687 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
108+ | 0.66 EUR |
155+ | 0.46 EUR |
164+ | 0.44 EUR |
