Produkte > DEGSON ELECTRONICS > DG301-5.0-09P-12-00A(H)
DG301-5.0-09P-12-00A(H)

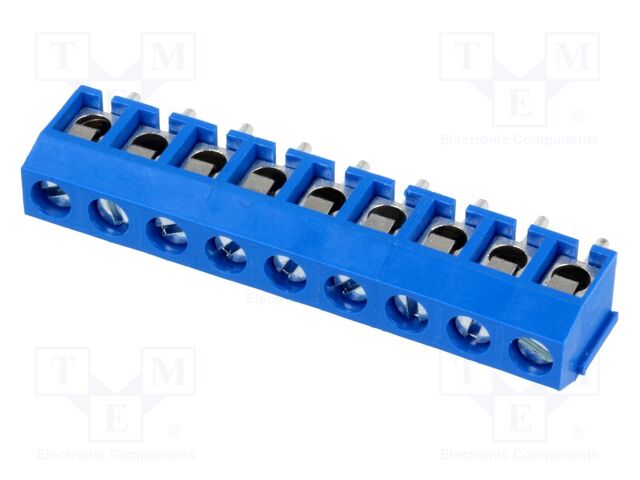

DG301-5.0-09P-12-00A(H) DEGSON ELECTRONICS


pVersion=0046&contRep=ZT&docId=005056AB752F1EE382B338902B3BACAD&compId=DG301-5.0.pdf?ci_sign=e83d0a820611ca2d0e5d95dc266e384844f6181a Hersteller: DEGSON ELECTRONICS
Category: PCB terminal blocks
Description: Connector: PCB terminal block; terminal; 17.5A; 250V; angled 90°
Connector: terminal
Contact plating: tinned
Flammability rating: UL94V-0
Connector variant: with wire protector
Operating temperature: -30...120°C
Wire cross-section: 1.5mm2
Contacts pitch: 5mm
Lead length: 4.3mm
Length: 45mm
Depth: 7.6mm
Height: 10mm
Number of ways: 9
Current rating: 17.5A
Wire size: 22AWG...14AWG
Rated voltage: 250V
Connector pinout layout: 1x9
Conform to the norm: CE; UL; VDE
Spatial orientation: angled 90°
Connectors features: assembling possibility
Colour: blue
Contact material: brass
Electrical mounting: screw terminal; THT
Mechanical mounting: on PCBs
Body material: PBT
Type of connector: PCB terminal block
Anzahl je Verpackung: 1 Stücke
auf Bestellung 790 Stücke:

Lieferzeit 7-14 Tag (e)
Anzahl Preis
71+1.02 EUR
114+0.63 EUR
146+0.49 EUR
154+0.47 EUR
Mindestbestellmenge: 71
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details DG301-5.0-09P-12-00A(H) DEGSON ELECTRONICS

Category: PCB terminal blocks, Description: Connector: PCB terminal block; terminal; 17.5A; 250V; angled 90°, Connector: terminal, Contact plating: tinned, Flammability rating: UL94V-0, Connector variant: with wire protector, Operating temperature: -30...120°C, Wire cross-section: 1.5mm2, Contacts pitch: 5mm, Lead length: 4.3mm, Length: 45mm, Depth: 7.6mm, Height: 10mm, Number of ways: 9, Current rating: 17.5A, Wire size: 22AWG...14AWG, Rated voltage: 250V, Connector pinout layout: 1x9, Conform to the norm: CE; UL; VDE, Spatial orientation: angled 90°, Connectors features: assembling possibility, Colour: blue, Contact material: brass, Electrical mounting: screw terminal; THT, Mechanical mounting: on PCBs, Body material: PBT, Type of connector: PCB terminal block, Anzahl je Verpackung: 1 Stücke.

Weitere Produktangebote DG301-5.0-09P-12-00A(H) nach Preis ab 0.47 EUR bis 1.02 EUR

Foto Bezeichnung Hersteller Beschreibung Verfügbarkeit
Preis
DG301-5.0-09P-12-00A(H) DG301-5.0-09P-12-00A(H) Hersteller : DEGSON ELECTRONICS pVersion=0046&contRep=ZT&docId=005056AB752F1EE382B338902B3BACAD&compId=DG301-5.0.pdf?ci_sign=e83d0a820611ca2d0e5d95dc266e384844f6181a Category: PCB terminal blocks
Description: Connector: PCB terminal block; terminal; 17.5A; 250V; angled 90°
Connector: terminal
Contact plating: tinned
Flammability rating: UL94V-0
Connector variant: with wire protector
Operating temperature: -30...120°C
Wire cross-section: 1.5mm2
Contacts pitch: 5mm
Lead length: 4.3mm
Length: 45mm
Depth: 7.6mm
Height: 10mm
Number of ways: 9
Current rating: 17.5A
Wire size: 22AWG...14AWG
Rated voltage: 250V
Connector pinout layout: 1x9
Conform to the norm: CE; UL; VDE
Spatial orientation: angled 90°
Connectors features: assembling possibility
Colour: blue
Contact material: brass
Electrical mounting: screw terminal; THT
Mechanical mounting: on PCBs
Body material: PBT
Type of connector: PCB terminal block
auf Bestellung 790 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
71+1.02 EUR
114+0.63 EUR
146+0.49 EUR
154+0.47 EUR
Mindestbestellmenge: 71
Im Einkaufswagen  Stück im Wert von  UAH
DG301-5.0-09P-12-00A(H)
Produktcode: 139796
zu Favoriten hinzufügen Lieblingsprodukt

Steckverbinder, Reihenklemmen > Steckverbindungen Schaltsteckverbindungen DIN
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
DG301-5.0-09P-12-00A(H) Hersteller : DEGSON Germany GmbH 1382736458935127941.pdf Blue Connector Terminal Blocks
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
