Produkte > DEGSON ELECTRONICS > DG500B-5.08-06P-14

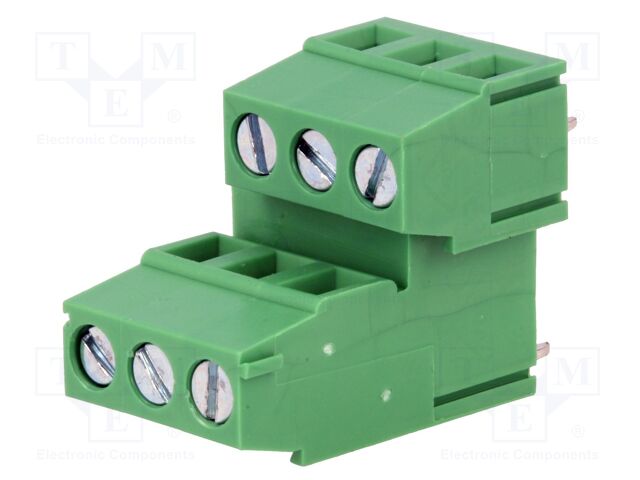

DG500B-5.08-06P-14

DG500B-5.08-06P-14 DEGSON ELECTRONICS

pVersion=0046&contRep=ZT&docId=E1F03B43CD70CDF1A303005056AB0C4F&compId=DG500B.pdf?ci_sign=5a025821136d21a21ac9594e297702e2bb57125e Hersteller: DEGSON ELECTRONICS
Category: PCB terminal blocks
Description: Connector: PCB terminal block; terminal; 10A; 300V; angled 90°
Type of connector: PCB terminal block
Connector: terminal
Current rating: 10A
Rated voltage: 300V
Spatial orientation: angled 90°
Mechanical mounting: on PCBs
Electrical mounting: cage clamp; screw terminal; THT
Contact material: brass
Contact plating: tinned
Colour: green
Flammability rating: UL94V-0
Body material: polyamide 66
Wire size: 24AWG...12AWG
Depth: 21.6mm
Length: 17.78mm
Connector pinout layout: 2x3
Wire cross-section: 2.5mm2
Contacts pitch: 5.08mm
Number of ways: 6
Height: 25.2mm
Connectors features: assembling possibility
Conform to the norm: CE; UL; VDE
Operating temperature: -40...105°C
Connector variant: double deck
auf Bestellung 2000 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
55+1.3 EUR
66+1.09 EUR
100+0.94 EUR
450+0.87 EUR
Mindestbestellmenge: 55
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details DG500B-5.08-06P-14 DEGSON ELECTRONICS

Category: PCB terminal blocks, Description: Connector: PCB terminal block; terminal; 10A; 300V; angled 90°, Type of connector: PCB terminal block, Connector: terminal, Current rating: 10A, Rated voltage: 300V, Spatial orientation: angled 90°, Mechanical mounting: on PCBs, Electrical mounting: cage clamp; screw terminal; THT, Contact material: brass, Contact plating: tinned, Colour: green, Flammability rating: UL94V-0, Body material: polyamide 66, Wire size: 24AWG...12AWG, Depth: 21.6mm, Length: 17.78mm, Connector pinout layout: 2x3, Wire cross-section: 2.5mm2, Contacts pitch: 5.08mm, Number of ways: 6, Height: 25.2mm, Connectors features: assembling possibility, Conform to the norm: CE; UL; VDE, Operating temperature: -40...105°C, Connector variant: double deck, Anzahl je Verpackung: 1 Stücke.
