Produkte > MEDER > DIP12-1A72-12L

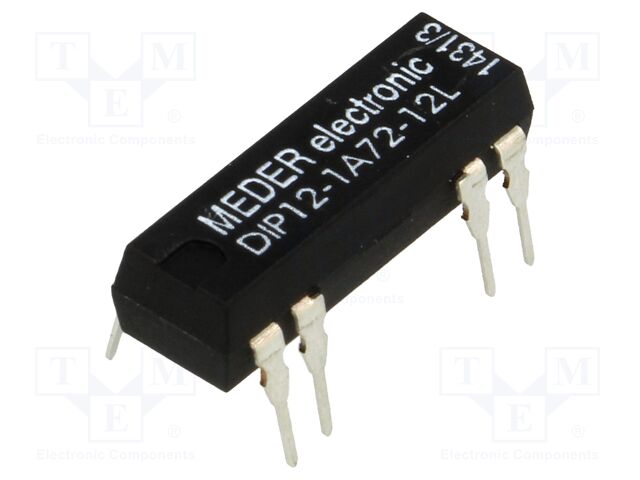

DIP12-1A72-12L

DIP12-1A72-12L MEDER


pVersion=0046&contRep=ZT&docId=E2016A00E63057F1A303005056AB0C4F&compId=Relay_DIP_Series_E.pdf?ci_sign=e282a72d70bf231cf59754b8118c9b441b88383d Hersteller: MEDER
Category: Reed Electromagnetic Relays
Description: Relay: reed switch; SPST-NO; Ucoil: 12VDC; 1A; max.200VDC; 145mW
Mounting: PCB
Operating temperature: -20...70°C
Soldering temperature: 260°C
Body dimensions: 19.3x5.1x6.4mm
Coil resistance: 1kΩ
Contacts configuration: SPST-NO
Type of relay: reed switch
Rated coil voltage: 12V DC
Coil voltage min.: 8.4V DC
Coil voltage max.: 16V DC
Coil power consumption: 145mW
Switched voltage: max. 200V AC; max. 200V DC
Contact current max.: 1A
Contact resistance: 0.15Ω
Manufacturer series: DIP
Terminal pitch: 2.54mm
Case: DIP14
auf Bestellung 964 Stücke:

Lieferzeit 14-21 Tag (e)
Anzahl Preis
22+3.37 EUR
25+2.95 EUR
31+2.32 EUR
33+2.20 EUR
500+2.12 EUR
Mindestbestellmenge: 22
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details DIP12-1A72-12L MEDER

Category: Reed Electromagnetic Relays, Description: Relay: reed switch; SPST-NO; Ucoil: 12VDC; 1A; max.200VDC; 145mW, Mounting: PCB, Operating temperature: -20...70°C, Soldering temperature: 260°C, Body dimensions: 19.3x5.1x6.4mm, Coil resistance: 1kΩ, Contacts configuration: SPST-NO, Type of relay: reed switch, Rated coil voltage: 12V DC, Coil voltage min.: 8.4V DC, Coil voltage max.: 16V DC, Coil power consumption: 145mW, Switched voltage: max. 200V AC; max. 200V DC, Contact current max.: 1A, Contact resistance: 0.15Ω, Manufacturer series: DIP, Terminal pitch: 2.54mm, Case: DIP14, Anzahl je Verpackung: 1 Stücke.

Weitere Produktangebote DIP12-1A72-12L nach Preis ab 2.12 EUR bis 7.95 EUR

Foto Bezeichnung Hersteller Beschreibung Verfügbarkeit
Preis
DIP12-1A72-12L DIP12-1A72-12L Hersteller : MEDER pVersion=0046&contRep=ZT&docId=E2016A00E63057F1A303005056AB0C4F&compId=Relay_DIP_Series_E.pdf?ci_sign=e282a72d70bf231cf59754b8118c9b441b88383d Category: Reed Electromagnetic Relays
Description: Relay: reed switch; SPST-NO; Ucoil: 12VDC; 1A; max.200VDC; 145mW
Mounting: PCB
Operating temperature: -20...70°C
Soldering temperature: 260°C
Body dimensions: 19.3x5.1x6.4mm
Coil resistance: 1kΩ
Contacts configuration: SPST-NO
Type of relay: reed switch
Rated coil voltage: 12V DC
Coil voltage min.: 8.4V DC
Coil voltage max.: 16V DC
Coil power consumption: 145mW
Switched voltage: max. 200V AC; max. 200V DC
Contact current max.: 1A
Contact resistance: 0.15Ω
Manufacturer series: DIP
Terminal pitch: 2.54mm
Case: DIP14
Anzahl je Verpackung: 1 Stücke
auf Bestellung 964 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl Preis
22+3.37 EUR
25+2.95 EUR
31+2.32 EUR
33+2.20 EUR
500+2.12 EUR
Mindestbestellmenge: 22
Im Einkaufswagen  Stück im Wert von  UAH
DIP12-1A72-12L DIP12-1A72-12L Hersteller : Standex-Meder Electronics 3212100012e.pdf Description: RELAY REED SPST 1A 12V
Packaging: Tube
Mounting Type: Through Hole
Coil Voltage: 12VDC
Operating Temperature: -20°C ~ 70°C
Termination Style: PC Pin
Coil Current: 12 mA
Coil Type: Non Latching
Contact Form: SPST-NO (1 Form A)
Contact Rating (Current): 1 A
Switching Voltage: 200VAC, 200VDC - Max
Must Release Voltage: 1.8 VDC
Must Operate Voltage: 8.4 VDC
Operate Time: 0.5 ms
Release Time: 0.1 ms
Part Status: Active
auf Bestellung 165 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
3+7.02 EUR
10+6.12 EUR
25+5.79 EUR
100+5.32 EUR
Mindestbestellmenge: 3
Im Einkaufswagen  Stück im Wert von  UAH
DIP12-1A72-12L DIP12-1A72-12L Hersteller : StandexMeder Electronics reed_relay_dip.pdf Reed Relay 12VDC 1KOhm 0.5A SPST-NO(19.3x7.62x5.7)mm THT Dry
auf Bestellung 30 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
21+7.13 EUR
Mindestbestellmenge: 21
Im Einkaufswagen  Stück im Wert von  UAH
DIP12-1A72-12L DIP12-1A72-12L Hersteller : MEDER electronic (Standex) 3212100012e-1633432.pdf Reed Relays 1 Form A, SPST-NO 12V Molded DIP
auf Bestellung 260 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
1+7.23 EUR
10+6.28 EUR
25+5.39 EUR
100+5.16 EUR
250+4.52 EUR
500+3.77 EUR
1000+3.68 EUR
Im Einkaufswagen  Stück im Wert von  UAH
DIP12-1A72-12L DIP12-1A72-12L Hersteller : MEDER electronic 3212100012e-1633432.pdf Reed Relays 1 Form A, SPST-NO 12V Molded DIP
auf Bestellung 260 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
1+7.71 EUR
10+6.28 EUR
25+5.40 EUR
100+5.12 EUR
250+4.61 EUR
500+4.38 EUR
1000+4.10 EUR
Im Einkaufswagen  Stück im Wert von  UAH
DIP12-1A72-12L DIP12-1A72-12L Hersteller : STANDEXMEDER 1493386.pdf Description: STANDEXMEDER - DIP12-1A72-12L - Reed-Relais, SPST-NO, 12 VDC, DIP, Durchsteckmontage, 1 kohm, 500 mA
tariffCode: 85364110
productTraceability: No
Schaltspannung, max.: 200V
rohsCompliant: YES
Spulenwiderstand: 1kohm
Relaismontage: Durchsteckmontage
Schaltstrom, max.: 500mA
Kontaktkonfiguration: SPST-NO
Spulenspannung: 12VDC
euEccn: NLR
hazardous: false
rohsPhthalatesCompliant: YES
usEccn: EAR99
Produktpalette: DIP
auf Bestellung 350 Stücke:
Lieferzeit 14-21 Tag (e)
Im Einkaufswagen  Stück im Wert von  UAH
DIP12-1A72-12L DIP12-1A72-12L Hersteller : StandexMeder Electronics GmbH 44398564729637664datasheet_reed_relay_dip.pdf Reed Relay 12VDC 1KOhm 0.5A SPST-NO(19.3x7.62x5.7)mm THT Dry
auf Bestellung 35 Stücke:
Lieferzeit 14-21 Tag (e)
Im Einkaufswagen  Stück im Wert von  UAH
DIP12-1A72-12L DIP12-1A72-12L Hersteller : StandexMeder Electronics reed_relay_dip.pdf Reed Relay 12VDC 1KOhm 0.5A SPST-NO(19.3x7.62x5.7)mm THT Dry
auf Bestellung 35 Stücke:
Lieferzeit 14-21 Tag (e)
Im Einkaufswagen  Stück im Wert von  UAH
DIP12-1A72-12L DIP12-1A72-12L Hersteller : StandexMeder Electronics reed_relay_dip.pdf Reed Relay 12VDC 1KOhm 0.5A SPST-NO(19.3x7.62x5.7)mm THT Dry
auf Bestellung 33 Stücke:
Lieferzeit 14-21 Tag (e)
Im Einkaufswagen  Stück im Wert von  UAH
DIP12-1A72-12L Hersteller : Meder Electronic 3212100012e.pdf 1A, 12V ,SPST-NO, 1A, DIP14 -20°C - 70°C DIP12-1A72-12L reed relay "DIP14" P DIP121a7212l
Anzahl je Verpackung: 25 Stücke
auf Bestellung 25 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl Preis
25+7.95 EUR
Mindestbestellmenge: 25
Im Einkaufswagen  Stück im Wert von  UAH
DIP12-1A72-12L
Produktcode: 128007
zu Favoriten hinzufügen Lieblingsprodukt

3212100012e.pdf Relais
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
DIP12-1A72-12L DIP12-1A72-12L Hersteller : StandexMeder Electronics reed_relay_dip.pdf Reed Relay 12VDC 1KOhm 0.5A SPST-NO(19.3x7.62x5.7)mm THT Dry
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
