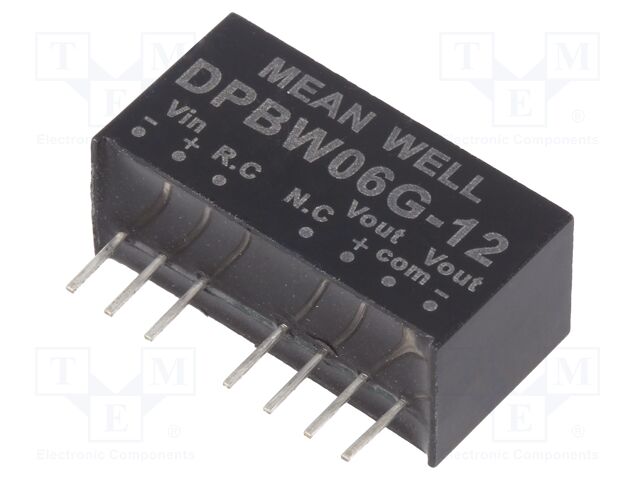

Technische Details DPBW06G-12 MEAN WELL
Description: DC DC CONVERTER +/-12V 6W, Applications: ITE (Commercial), Operating Temperature: -40°C ~ 85°C (With Derating), Type: Isolated Module, Mounting Type: Through Hole, Size / Dimension: 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm), Package / Case: 8-SIP Module, 7 Leads, Features: Remote On/Off, OCP, SCP, Control Features: Enable, Active Low, Voltage - Output 2: -12V, Voltage - Output 1: 12V, Voltage - Input (Min): 18V, Current - Output (Max): 250mA, 250mA, Efficiency: 89%, Voltage - Input (Max): 75V, Voltage - Isolation: 1.5 kV, Number of Outputs: 2, Power (Watts): 6 W.
Weitere Produktangebote DPBW06G-12 nach Preis ab 12.02 EUR bis 26.31 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
DPBW06G-12 | MEAN WELL USA Inc. |
 Description: DC DC CONVERTER +/-12V 6WApplications: ITE (Commercial) Operating Temperature: -40°C ~ 85°C (With Derating) Type: Isolated Module Mounting Type: Through Hole Size / Dimension: 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) Package / Case: 8-SIP Module, 7 Leads Features: Remote On/Off, OCP, SCP Control Features: Enable, Active Low Voltage - Output 2: -12V Voltage - Output 1: 12V Voltage - Input (Min): 18V Current - Output (Max): 250mA, 250mA Efficiency: 89% Voltage - Input (Max): 75V Voltage - Isolation: 1.5 kV Number of Outputs: 2 Power (Watts): 6 W |
auf Bestellung 62 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||
 |
DPBW06G-12 | MEAN WELL |
Category: DC/DC Converters Description: Converter: DC/DC; 6W; Uin: 18÷75VDC; Uout: 12VDC; Uout2: -12VDC; SIP8 Type of converter: DC/DC Power: 6W Input voltage: 18...75V DC Output voltage: 12V DC Output voltage 2: -12V DC Output current: 0...250mA Output current 2: 0...250mA Case: SIP8 Mounting: THT Manufacturer series: DPBW03 Body dimensions: 21.8x9.2x11.1mm Efficiency: 89% Operating temperature: -40...85°C Switching frequency: 580kHz Protection: anti-overload OPP; short circuit protection SCP Insulation voltage: 1.5kV DC Number of outputs: 2 |
auf Bestellung 60 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||
 |
DPBW06G-12 | Mean-Well USA, Inc. |
Module DC-DC 48VIN 2-OUT -12V/12V -0.25A/0.25A 6W 7-Pin SIP Module Tube |
auf Bestellung 13 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||
|
|
DPBW06G-12 | Mean-Well USA, Inc. |
Module DC-DC 48VIN 2-OUT -12V/12V -0.25A/0.25A 6W 7-Pin SIP Module Tube |
auf Bestellung 60 Stücke: Lieferzeit 14-21 Tag (e) |
|
| DPBW06G-12 |
|
Hersteller: MEAN WELL USA Inc.
Description: DC DC CONVERTER +/-12V 6W
Applications: ITE (Commercial)
Operating Temperature: -40°C ~ 85°C (With Derating)
Type: Isolated Module
Mounting Type: Through Hole
Size / Dimension: 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm)
Package / Case: 8-SIP Module, 7 Leads
Features: Remote On/Off, OCP, SCP
Control Features: Enable, Active Low
Voltage - Output 2: -12V
Voltage - Output 1: 12V
Voltage - Input (Min): 18V
Current - Output (Max): 250mA, 250mA
Efficiency: 89%
Voltage - Input (Max): 75V
Voltage - Isolation: 1.5 kV
Number of Outputs: 2
Power (Watts): 6 W
Description: DC DC CONVERTER +/-12V 6W
Applications: ITE (Commercial)
Operating Temperature: -40°C ~ 85°C (With Derating)
Type: Isolated Module
Mounting Type: Through Hole
Size / Dimension: 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm)
Package / Case: 8-SIP Module, 7 Leads
Features: Remote On/Off, OCP, SCP
Control Features: Enable, Active Low
Voltage - Output 2: -12V
Voltage - Output 1: 12V
Voltage - Input (Min): 18V
Current - Output (Max): 250mA, 250mA
Efficiency: 89%
Voltage - Input (Max): 75V
Voltage - Isolation: 1.5 kV
Number of Outputs: 2
Power (Watts): 6 W
auf Bestellung 62 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 2+ | 15.4 EUR |
| DPBW06G-12 |
|
Hersteller: MEAN WELL
Category: DC/DC Converters
Description: Converter: DC/DC; 6W; Uin: 18÷75VDC; Uout: 12VDC; Uout2: -12VDC; SIP8
Type of converter: DC/DC
Power: 6W
Input voltage: 18...75V DC
Output voltage: 12V DC
Output voltage 2: -12V DC
Output current: 0...250mA
Output current 2: 0...250mA
Case: SIP8
Mounting: THT
Manufacturer series: DPBW03
Body dimensions: 21.8x9.2x11.1mm
Efficiency: 89%
Operating temperature: -40...85°C
Switching frequency: 580kHz
Protection: anti-overload OPP; short circuit protection SCP
Insulation voltage: 1.5kV DC
Number of outputs: 2
Category: DC/DC Converters
Description: Converter: DC/DC; 6W; Uin: 18÷75VDC; Uout: 12VDC; Uout2: -12VDC; SIP8
Type of converter: DC/DC
Power: 6W
Input voltage: 18...75V DC
Output voltage: 12V DC
Output voltage 2: -12V DC
Output current: 0...250mA
Output current 2: 0...250mA
Case: SIP8
Mounting: THT
Manufacturer series: DPBW03
Body dimensions: 21.8x9.2x11.1mm
Efficiency: 89%
Operating temperature: -40...85°C
Switching frequency: 580kHz
Protection: anti-overload OPP; short circuit protection SCP
Insulation voltage: 1.5kV DC
Number of outputs: 2
auf Bestellung 60 Stücke:
Lieferzeit 14-21 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 5+ | 18.16 EUR |
| 6+ | 15.8 EUR |
| 10+ | 13.73 EUR |
| 20+ | 12.02 EUR |
| DPBW06G-12 |
|
Hersteller: Mean-Well USA, Inc.
Module DC-DC 48VIN 2-OUT -12V/12V -0.25A/0.25A 6W 7-Pin SIP Module Tube
Module DC-DC 48VIN 2-OUT -12V/12V -0.25A/0.25A 6W 7-Pin SIP Module Tube
auf Bestellung 13 Stücke:
Lieferzeit 14-21 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 9+ | 20.52 EUR |
| 10+ | 18.15 EUR |
| DPBW06G-12 |
|
Hersteller: Mean-Well USA, Inc.
Module DC-DC 48VIN 2-OUT -12V/12V -0.25A/0.25A 6W 7-Pin SIP Module Tube
Module DC-DC 48VIN 2-OUT -12V/12V -0.25A/0.25A 6W 7-Pin SIP Module Tube
auf Bestellung 60 Stücke:
Lieferzeit 14-21 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 7+ | 26.31 EUR |
| 10+ | 22.24 EUR |
| 20+ | 18.75 EUR |
