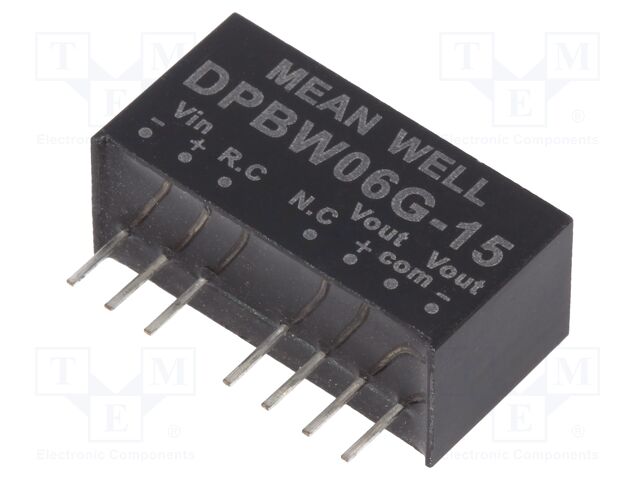

DPBW06G-15 MEAN WELL
Hersteller: MEAN WELL
Category: DC/DC Converters
Description: Converter: DC/DC; 6W; Uin: 18÷75VDC; Uout: 15VDC; Uout2: -15VDC; SIP8
Type of converter: DC/DC
Power: 6W
Input voltage: 18...75V DC
Output voltage: 15V DC
Output voltage 2: -15V DC
Output current: 0...200mA
Output current 2: 0...200mA
Case: SIP8
Mounting: THT
Manufacturer series: DPBW03
Body dimensions: 21.8x9.2x11.1mm
Efficiency: 88%
Operating temperature: -40...85°C
Switching frequency: 580kHz
Protection: anti-overload OPP; short circuit protection SCP
Insulation voltage: 1.5kV DC
Number of outputs: 2
Produktrezensionen
Produktbewertung abgeben
Technische Details DPBW06G-15 MEAN WELL
Description: DC DC CONVERTER +/-15V 6W, Packaging: Tube, Features: Remote On/Off, OCP, SCP, Package / Case: 8-SIP Module, 7 Leads, Size / Dimension: 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm), Mounting Type: Through Hole, Type: Isolated Module, Operating Temperature: -40°C ~ 85°C (With Derating), Applications: ITE (Commercial), Voltage - Input (Max): 75V, Efficiency: 88%, Current - Output (Max): 200mA, 200mA, Voltage - Input (Min): 18V, Voltage - Output 1: 15V, Voltage - Output 2: -15V, Control Features: Enable, Active Low, Power (Watts): 6 W, Number of Outputs: 2, Voltage - Isolation: 1.5 kV.
Weitere Produktangebote DPBW06G-15 nach Preis ab 15.12 EUR bis 20.15 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde | ||
|---|---|---|---|---|---|---|---|
 |
DPBW06G-15 | MEAN WELL |
DC/DC Converters - Through Hole 18-75Vin +/-15Vout +/-200mA SIP Reg Iso |
auf Bestellung 68 Stücke: Lieferzeit 10-14 Tag (e) |
|
||
 |
DPBW06G-15 | MEAN WELL USA Inc. |
Description: DC DC CONVERTER +/-15V 6W Packaging: Tube Features: Remote On/Off, OCP, SCP Package / Case: 8-SIP Module, 7 Leads Size / Dimension: 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) Mounting Type: Through Hole Type: Isolated Module Operating Temperature: -40°C ~ 85°C (With Derating) Applications: ITE (Commercial) Voltage - Input (Max): 75V Efficiency: 88% Current - Output (Max): 200mA, 200mA Voltage - Input (Min): 18V Voltage - Output 1: 15V Voltage - Output 2: -15V Control Features: Enable, Active Low Power (Watts): 6 W Number of Outputs: 2 Voltage - Isolation: 1.5 kV |
auf Bestellung 1853 Stücke: Lieferzeit 10-14 Tag (e) |
|
||
 |
DPBW06G-15 | Mean-Well USA, Inc. |
Module DC-DC 48VIN 2-OUT -15V/15V -0.2A/0.2A 6W 7-Pin SIP Module Tube |
auf Bestellung 10 Stücke: Lieferzeit 14-21 Tag (e) |
|
| DPBW06G-15 |
|
Hersteller: MEAN WELL
DC/DC Converters - Through Hole 18-75Vin +/-15Vout +/-200mA SIP Reg Iso
DC/DC Converters - Through Hole 18-75Vin +/-15Vout +/-200mA SIP Reg Iso
auf Bestellung 68 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 1+ | 15.12 EUR |
| DPBW06G-15 |
|
Hersteller: MEAN WELL USA Inc.
Description: DC DC CONVERTER +/-15V 6W
Packaging: Tube
Features: Remote On/Off, OCP, SCP
Package / Case: 8-SIP Module, 7 Leads
Size / Dimension: 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm)
Mounting Type: Through Hole
Type: Isolated Module
Operating Temperature: -40°C ~ 85°C (With Derating)
Applications: ITE (Commercial)
Voltage - Input (Max): 75V
Efficiency: 88%
Current - Output (Max): 200mA, 200mA
Voltage - Input (Min): 18V
Voltage - Output 1: 15V
Voltage - Output 2: -15V
Control Features: Enable, Active Low
Power (Watts): 6 W
Number of Outputs: 2
Voltage - Isolation: 1.5 kV
Description: DC DC CONVERTER +/-15V 6W
Packaging: Tube
Features: Remote On/Off, OCP, SCP
Package / Case: 8-SIP Module, 7 Leads
Size / Dimension: 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm)
Mounting Type: Through Hole
Type: Isolated Module
Operating Temperature: -40°C ~ 85°C (With Derating)
Applications: ITE (Commercial)
Voltage - Input (Max): 75V
Efficiency: 88%
Current - Output (Max): 200mA, 200mA
Voltage - Input (Min): 18V
Voltage - Output 1: 15V
Voltage - Output 2: -15V
Control Features: Enable, Active Low
Power (Watts): 6 W
Number of Outputs: 2
Voltage - Isolation: 1.5 kV
auf Bestellung 1853 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 2+ | 15.4 EUR |
| DPBW06G-15 |
|
Hersteller: Mean-Well USA, Inc.
Module DC-DC 48VIN 2-OUT -15V/15V -0.2A/0.2A 6W 7-Pin SIP Module Tube
Module DC-DC 48VIN 2-OUT -15V/15V -0.2A/0.2A 6W 7-Pin SIP Module Tube
auf Bestellung 10 Stücke:
Lieferzeit 14-21 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 9+ | 20.15 EUR |
