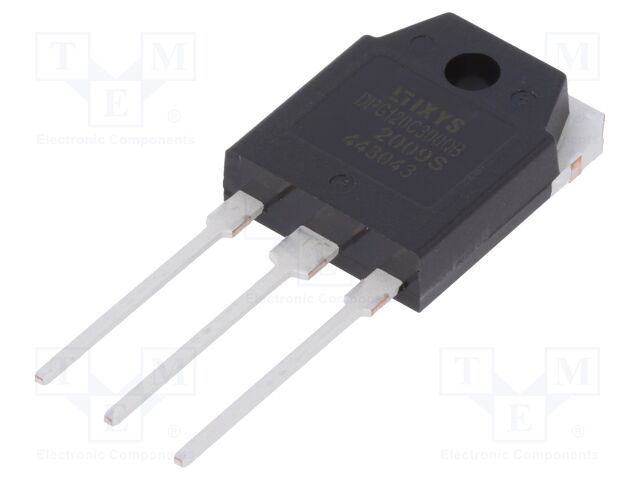

DPG120C300QB IXYS

Category: THT universal diodes
Description: Diode: rectifying; THT; 300V; 60Ax2; tube; Ifsm: 450A; TO3P; 275W
Max. off-state voltage: 300V
Max. forward voltage: 1.4V
Load current: 60A x2
Semiconductor structure: common cathode; double
Reverse recovery time: 35ns
Max. forward impulse current: 0.45kA
Power dissipation: 275W
Kind of package: tube
Type of diode: rectifying
Features of semiconductor devices: fast switching
Technology: HiPerFRED™ 2nd Gen
Mounting: THT
Case: TO3P
Anzahl je Verpackung: 1 Stücke
auf Bestellung 26 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl | Preis |
---|---|
6+ | 12.73 EUR |
8+ | 9.12 EUR |
9+ | 8.62 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details DPG120C300QB IXYS
Description: IXYS SEMICONDUCTOR - DPG120C300QB - Diode mit kurzer/ultrakurzer Erholzeit, leistungsstark, 300 V, 60 A, Zweifach, gemeinsame Kathode, tariffCode: 85411000, Bauform - Diode: TO-3P, Durchlassstoßstrom: 550A, rohsCompliant: YES, hazardous: false, rohsPhthalatesCompliant: YES, Diodenkonfiguration: Zweifach, gemeinsame Kathode, Qualifikation: -, Durchlassspannung, max.: 1.4V, Sperrverzögerungszeit: 35ns, usEccn: EAR99, Durchschnittlicher Durchlassstrom: 60A, euEccn: NLR, Wiederkehrende Spitzensperrspannung: 300V, Anzahl der Pins: 3 Pins, Produktpalette: DPG12, productTraceability: Yes-Date/Lot Code, Betriebstemperatur, max.: 175°C, SVHC: No SVHC (17-Jan-2023).
Weitere Produktangebote DPG120C300QB nach Preis ab 8.62 EUR bis 16.47 EUR
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis | ||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
DPG120C300QB | Hersteller : IXYS |
![]() Description: Diode: rectifying; THT; 300V; 60Ax2; tube; Ifsm: 450A; TO3P; 275W Max. off-state voltage: 300V Max. forward voltage: 1.4V Load current: 60A x2 Semiconductor structure: common cathode; double Reverse recovery time: 35ns Max. forward impulse current: 0.45kA Power dissipation: 275W Kind of package: tube Type of diode: rectifying Features of semiconductor devices: fast switching Technology: HiPerFRED™ 2nd Gen Mounting: THT Case: TO3P |
auf Bestellung 26 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||
![]() |
DPG120C300QB | Hersteller : IXYS |
![]() |
auf Bestellung 28 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||
![]() |
DPG120C300QB | Hersteller : IXYS |
![]() Packaging: Tube Package / Case: TO-3P-3, SC-65-3 Mounting Type: Through Hole Speed: Fast Recovery =< 500ns, > 200mA (Io) Reverse Recovery Time (trr): 35 ns Technology: Standard Diode Configuration: 1 Pair Common Cathode Current - Average Rectified (Io) (per Diode): 60A Supplier Device Package: TO-3P Operating Temperature - Junction: -55°C ~ 175°C Part Status: Active Voltage - DC Reverse (Vr) (Max): 300 V Voltage - Forward (Vf) (Max) @ If: 1.4 V @ 60 A Current - Reverse Leakage @ Vr: 1 µA @ 300 V |
auf Bestellung 196 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||
![]() |
DPG120C300QB | Hersteller : IXYS SEMICONDUCTOR |
![]() tariffCode: 85411000 Bauform - Diode: TO-3P Durchlassstoßstrom: 550A rohsCompliant: YES hazardous: false rohsPhthalatesCompliant: YES Diodenkonfiguration: Zweifach, gemeinsame Kathode Qualifikation: - Durchlassspannung, max.: 1.4V Sperrverzögerungszeit: 35ns usEccn: EAR99 Durchschnittlicher Durchlassstrom: 60A euEccn: NLR Wiederkehrende Spitzensperrspannung: 300V Anzahl der Pins: 3 Pins Produktpalette: DPG12 productTraceability: Yes-Date/Lot Code Betriebstemperatur, max.: 175°C SVHC: No SVHC (17-Jan-2023) |
auf Bestellung 9 Stücke: Lieferzeit 14-21 Tag (e) |
