Produkte > TEXAS INSTRUMENTS > DRV8231DDAR

DRV8231DDAR Texas Instruments


drv8231.pdf
Hersteller: Texas Instruments
Description: 33V H BRIDGE MOTOR DRIVER WITH C
Packaging: Cut Tape (CT)
Package / Case: 8-PowerSOIC (0.154", 3.90mm Width)
Mounting Type: Surface Mount
Function: Driver - Fully Integrated, Control and Power Stage
Current - Output: 3.7A
Interface: PWM
Operating Temperature: -40°C ~ 150°C (TJ)
Output Configuration: Half Bridge (2)
Voltage - Supply: 4.5V ~ 33V
Applications: Printer
Technology: NMOS
Voltage - Load: 4.5V ~ 33V
Supplier Device Package: 8-SO PowerPad
Motor Type - Stepper: Bipolar
Motor Type - AC, DC: Brushed DC
Part Status: Active
auf Bestellung 132 Stücke:
Lieferzeit 10-14 Tag (e)
AnzahlPrivatkunde
8+2.87 EUR
11+2.09 EUR
25+1.89 EUR
100+1.69 EUR
Mindestbestellmenge: 8 Stücke
Im Einkaufswagen  Stück im Wert von  UAH
Artikel auf Bestellung
Nicht an unserem Lager — wir beziehen ihn nach Ihrer Bestellung vom Lieferantenlager.
Lieferzeit: 10-14 Tag (e)
Mindestmenge: 8 Stücke
Produktrezensionen
Produktbewertung abgeben

Technische Details DRV8231DDAR Texas Instruments

Description: 33V H BRIDGE MOTOR DRIVER WITH C, Packaging: Tape & Reel (TR), Package / Case: 8-PowerSOIC (0.154", 3.90mm Width), Mounting Type: Surface Mount, Function: Driver - Fully Integrated, Control and Power Stage, Current - Output: 3.7A, Interface: PWM, Operating Temperature: -40°C ~ 150°C (TJ), Output Configuration: Half Bridge (2), Voltage - Supply: 4.5V ~ 33V, Applications: Printer, Technology: NMOS, Voltage - Load: 4.5V ~ 33V, Supplier Device Package: 8-SO PowerPad, Motor Type - Stepper: Bipolar, Motor Type - AC, DC: Brushed DC, Part Status: Active.

Weitere Produktangebote DRV8231DDAR

Foto Bezeichnung Hersteller Beschreibung Verfügbarkeit Privatkunde

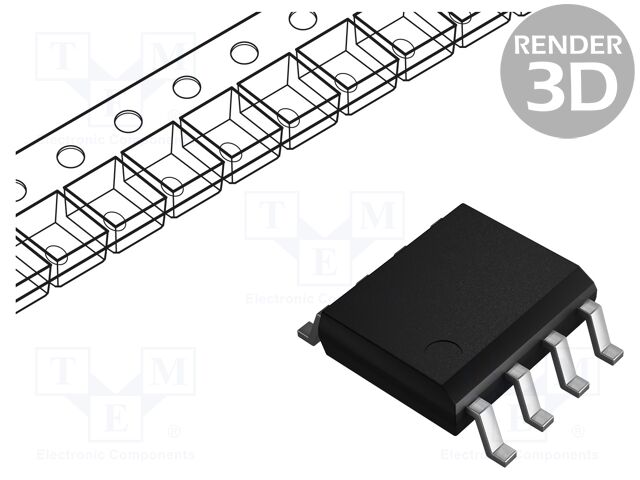

DRV8231DDAR DRV8231DDAR TEXAS INSTRUMENTS drv8231.pdf Category: Motor and PWM drivers
Description: IC: driver; H-bridge; brush motor controller; HSOP8; Ch: 1; 200kHz
Type of integrated circuit: driver
Topology: H-bridge
Kind of integrated circuit: brush motor controller
Case: HSOP8
Number of channels: 1
Supply voltage: 4.5...33V DC
Mounting: SMD
Operating temperature: -40...150°C
Frequency: 200kHz
Application: DC motors
auf Bestellung 216 Stücke:
Lieferzeit 14-21 Tag (e)
Im Einkaufswagen  Stück im Wert von  UAH
DRV8231DDAR drv8231.pdf
Hersteller: TEXAS INSTRUMENTS
Category: Motor and PWM drivers
Description: IC: driver; H-bridge; brush motor controller; HSOP8; Ch: 1; 200kHz
Type of integrated circuit: driver
Topology: H-bridge
Kind of integrated circuit: brush motor controller
Case: HSOP8
Number of channels: 1
Supply voltage: 4.5...33V DC
Mounting: SMD
Operating temperature: -40...150°C
Frequency: 200kHz
Application: DC motors
auf Bestellung 216 Stücke:
Lieferzeit 14-21 Tag (e)
Im Einkaufswagen  Stück im Wert von  UAH
