Produkte > AMPHENOL > DS3102A 12S-3S
DS3102A 12S-3S

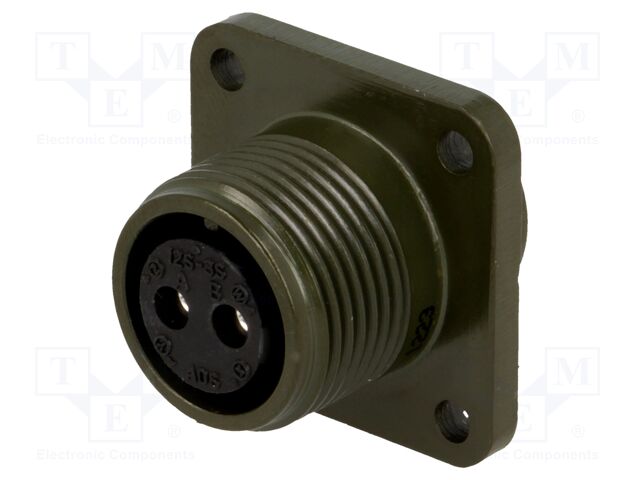

DS3102A 12S-3S AMPHENOL

pVersion=0046&contRep=ZT&docId=E1D7EAF7609942F1A704005056AB0C4F&compId=MS3100A-C.pdf?ci_sign=c92b39deb689d5b156f4c04687fb80e63226930c pVersion=0046&contRep=ZT&docId=E1C04A7DD53066F1A6F5005056AB5A8F&compId=ds3102a.pdf?ci_sign=23befdc261548296efd34cd5986607fd94ed17fd Hersteller: AMPHENOL
Category: AMPHENOL connectors
Description: Connector: circular; socket; PIN: 2; female; soldering; MS/DS; 13A
Rated voltage: 200V AC; 250V DC
Enclosure material: aluminium alloy
Type of connector: circular
Conform to the norm: MIL-C-5015
Locking system: external thread; threaded joint
Kind of connector: female
Mechanical mounting: flange (4 holes); for panel mounting
Plating material: zinc
Colour: olive
Connector: socket
Contact plating: silver plated
Electrical mounting: soldering
Spatial orientation: straight
Operating temperature: -55...125°C
Wire cross-section: 0.5...1.5mm2
Number of pins: 2
Current rating: 13A
Contact size: 16
Manufacturer series: MS/DS
Case: size 12S
auf Bestellung 45 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
5+15.62 EUR
6+12.48 EUR
7+11.8 EUR
Mindestbestellmenge: 5
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details DS3102A 12S-3S AMPHENOL

Category: AMPHENOL connectors, Description: Connector: circular; socket; PIN: 2; female; soldering; MS/DS; 13A, Rated voltage: 200V AC; 250V DC, Enclosure material: aluminium alloy, Type of connector: circular, Conform to the norm: MIL-C-5015, Locking system: external thread; threaded joint, Kind of connector: female, Mechanical mounting: flange (4 holes); for panel mounting, Plating material: zinc, Colour: olive, Connector: socket, Contact plating: silver plated, Electrical mounting: soldering, Spatial orientation: straight, Operating temperature: -55...125°C, Wire cross-section: 0.5...1.5mm2, Number of pins: 2, Current rating: 13A, Contact size: 16, Manufacturer series: MS/DS, Case: size 12S, Anzahl je Verpackung: 1 Stücke.

Weitere Produktangebote DS3102A 12S-3S nach Preis ab 11.8 EUR bis 21.66 EUR

Foto Bezeichnung Hersteller Beschreibung Verfügbarkeit
Preis
DS3102A 12S-3S DS3102A 12S-3S Hersteller : AMPHENOL pVersion=0046&contRep=ZT&docId=E1D7EAF7609942F1A704005056AB0C4F&compId=MS3100A-C.pdf?ci_sign=c92b39deb689d5b156f4c04687fb80e63226930c pVersion=0046&contRep=ZT&docId=E1C04A7DD53066F1A6F5005056AB5A8F&compId=ds3102a.pdf?ci_sign=23befdc261548296efd34cd5986607fd94ed17fd Category: AMPHENOL connectors
Description: Connector: circular; socket; PIN: 2; female; soldering; MS/DS; 13A
Rated voltage: 200V AC; 250V DC
Enclosure material: aluminium alloy
Type of connector: circular
Conform to the norm: MIL-C-5015
Locking system: external thread; threaded joint
Kind of connector: female
Mechanical mounting: flange (4 holes); for panel mounting
Plating material: zinc
Colour: olive
Connector: socket
Contact plating: silver plated
Electrical mounting: soldering
Spatial orientation: straight
Operating temperature: -55...125°C
Wire cross-section: 0.5...1.5mm2
Number of pins: 2
Current rating: 13A
Contact size: 16
Manufacturer series: MS/DS
Case: size 12S
Anzahl je Verpackung: 1 Stücke
auf Bestellung 45 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl Preis
5+15.62 EUR
6+12.48 EUR
7+11.8 EUR
Mindestbestellmenge: 5
Im Einkaufswagen  Stück im Wert von  UAH
DS3102A 12S-3S Hersteller : Amphenol Conn Circular SKT 2 POS Solder ST Box Mount 2 Terminal 1 Port Automotive
auf Bestellung 45 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
7+21.66 EUR
20+18.28 EUR
Mindestbestellmenge: 7
Im Einkaufswagen  Stück im Wert von  UAH
