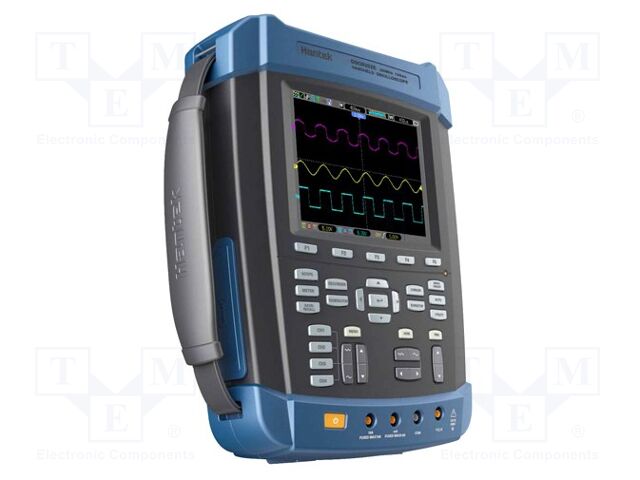

DSO8072E
Produktcode: 206732
zu Favoriten hinzufügen
Lieblingsprodukt
Hersteller:
Werkzeuge und Geräte > Messgeräte
Produktrezensionen
Produktbewertung abgeben
Weitere Produktangebote DSO8072E nach Preis ab 1006.76 EUR bis 1006.76 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde | ||
|---|---|---|---|---|---|---|---|
 |
DSO8072E | HANTEK |
 Category: Portable Oscilloscopes, ScopemetersDescription: Portable oscilloscope; 70MHz; 8bit; colour,LCD TFT 5,6"; Ch: 2 Type of oscilloscope: portable oscilloscope Number of channels: 2 Band: 70MHz Sampling: 1Gsps Memory record length: 2Mpts Kind of display used: colour; LCD TFT 5,6" Trigger: falling-edge; impulse width; rising-edge; video signal Time base: 4n...2ks/div Max. input voltage: 30V Interface: USB Rise time: ≤5ns Input impedance: 1MΩ/20pF Input sensitivity: 2mV/div Measuring instrument features: automatic measurement of many parameters; FFT analysis; mathematical functions: addition, subtraction, division, multiplication and FFT; Pass/Fail function; X-Y operation mode Standard equipment: mains cable; oscilloscope probe x2; test leads; USB cable Dimensions: 260x220x75mm Supply voltage: 100...240V AC Trigger source: CH1; CH2; supply voltage source Power supply: rechargeable battery Li-Ion x1 Manufacturer series: DSO8000E Vertical resolution: 8bit Continuity test: acoustic indication Display resolution: 640x480 Measurement memory: 1000 Connectors for the country: Europe Measurement: AC current; AC voltage; capacitance; DC current; DC voltage; resistance Test: diodes Trigger modes: automatic; normal; single |
auf Bestellung 1 Stücke: Lieferzeit 14-21 Tag (e) |
|
| DSO8072E |
|
Hersteller: HANTEK
Category: Portable Oscilloscopes, Scopemeters
Description: Portable oscilloscope; 70MHz; 8bit; colour,LCD TFT 5,6"; Ch: 2
Type of oscilloscope: portable oscilloscope
Number of channels: 2
Band: 70MHz
Sampling: 1Gsps
Memory record length: 2Mpts
Kind of display used: colour; LCD TFT 5,6"
Trigger: falling-edge; impulse width; rising-edge; video signal
Time base: 4n...2ks/div
Max. input voltage: 30V
Interface: USB
Rise time: ≤5ns
Input impedance: 1MΩ/20pF
Input sensitivity: 2mV/div
Measuring instrument features: automatic measurement of many parameters; FFT analysis; mathematical functions: addition, subtraction, division, multiplication and FFT; Pass/Fail function; X-Y operation mode
Standard equipment: mains cable; oscilloscope probe x2; test leads; USB cable
Dimensions: 260x220x75mm
Supply voltage: 100...240V AC
Trigger source: CH1; CH2; supply voltage source
Power supply: rechargeable battery Li-Ion x1
Manufacturer series: DSO8000E
Vertical resolution: 8bit
Continuity test: acoustic indication
Display resolution: 640x480
Measurement memory: 1000
Connectors for the country: Europe
Measurement: AC current; AC voltage; capacitance; DC current; DC voltage; resistance
Test: diodes
Trigger modes: automatic; normal; single
Category: Portable Oscilloscopes, Scopemeters
Description: Portable oscilloscope; 70MHz; 8bit; colour,LCD TFT 5,6"; Ch: 2
Type of oscilloscope: portable oscilloscope
Number of channels: 2
Band: 70MHz
Sampling: 1Gsps
Memory record length: 2Mpts
Kind of display used: colour; LCD TFT 5,6"
Trigger: falling-edge; impulse width; rising-edge; video signal
Time base: 4n...2ks/div
Max. input voltage: 30V
Interface: USB
Rise time: ≤5ns
Input impedance: 1MΩ/20pF
Input sensitivity: 2mV/div
Measuring instrument features: automatic measurement of many parameters; FFT analysis; mathematical functions: addition, subtraction, division, multiplication and FFT; Pass/Fail function; X-Y operation mode
Standard equipment: mains cable; oscilloscope probe x2; test leads; USB cable
Dimensions: 260x220x75mm
Supply voltage: 100...240V AC
Trigger source: CH1; CH2; supply voltage source
Power supply: rechargeable battery Li-Ion x1
Manufacturer series: DSO8000E
Vertical resolution: 8bit
Continuity test: acoustic indication
Display resolution: 640x480
Measurement memory: 1000
Connectors for the country: Europe
Measurement: AC current; AC voltage; capacitance; DC current; DC voltage; resistance
Test: diodes
Trigger modes: automatic; normal; single
auf Bestellung 1 Stücke:
Lieferzeit 14-21 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 1+ | 1006.76 EUR |
