Produkte > ADAM TECH > EBHA-02-D
EBHA-02-D

EBHA-02-D Adam Tech

ebha-xx-d-data-sheet.pdf
Hersteller: Adam Tech

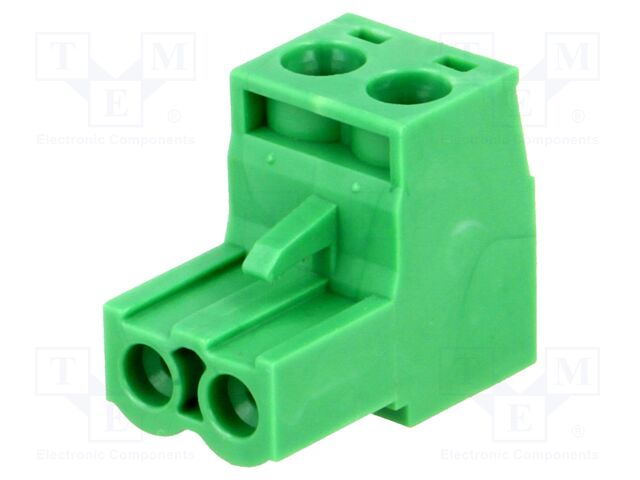

Description: TERM BLOCK PLUG 2POS 5.08MM
Features: Retention Latches (Non-Wire Side)
Packaging: Box
Color: Green
Mounting Type: Free Hanging (In-Line)
Number of Positions: 2
Pitch: 0.200" (5.08mm)
Type: Plug, Female Sockets
Operating Temperature: -40°C ~ 105°C
Termination Style: Screw - Leaf Spring, Wire Guard
Number of Levels: 1
Wire Gauge or Range - AWG: 14-28 AWG
Wire Gauge or Range - mm²: 2.5mm²
Positions Per Level: 2
Plug Wire Entry: 180°
Contact Mating Finish: Nickel
Current - UL: 15 A
Voltage - UL: 300 V
auf Bestellung 11731 Stücke:
Lieferzeit 10-14 Tag (e)
AnzahlPrivatkunde
14+1.57 EUR
19+1.17 EUR
25+1.01 EUR
50+0.92 EUR
200+0.75 EUR
400+0.69 EUR
600+0.65 EUR
1000+0.63 EUR
5000+0.55 EUR
Mindestbestellmenge: 14 Stücke
Im Einkaufswagen  Stück im Wert von  UAH
Artikel auf Bestellung
Nicht an unserem Lager — wir beziehen ihn nach Ihrer Bestellung vom Lieferantenlager.
Lieferzeit: 10-14 Tag (e)
Mindestmenge: 14 Stücke
Produktrezensionen
Produktbewertung abgeben

Technische Details EBHA-02-D Adam Tech

Category: Pluggable terminal blocks, Description: Connector: pluggable terminal block; plug; female; 15A; 300V; 1x2, Type of connector: pluggable terminal block, Connector: plug, Current rating: 15A, Rated voltage: 0.3kV, Spatial orientation: straight, Mechanical mounting: for cable, Electrical mounting: screw terminal, Contact material: phosphor bronze, Contact plating: nickel plated, Colour: green, Flammability rating: UL94V-0, Body material: polyamide 66, Connector pinout layout: 1x2, Contacts pitch: 5.08mm, Number of ways: 2, Operating temperature: -40...105°C, Wire size: 28AWG...14AWG, Number of terminals: 2, Wire cross-section: 2.5mm2, Locking system: latch, Conform to the norm: UL, Kind of connector: female.
