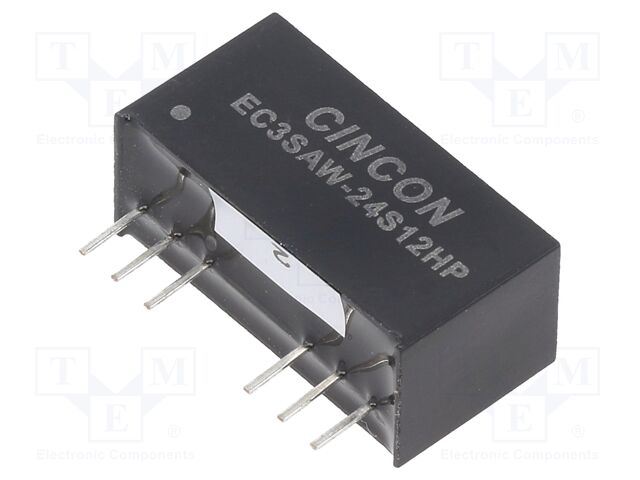

EC3SAW-24S12HP CINCON
Hersteller: CINCON
Category: DC/DC Converters
Description: Converter: DC/DC; 3W; Uin: 9÷36VDC; Uout: 12VDC; Iout: 250mA; THT
Type of converter: DC/DC
Power: 3W
Input voltage: 9...36V DC
Output voltage: 12V DC
Output current: 0.25A
Number of outputs: 1
Efficiency: 83%
Manufacturer series: EC3SAWH
Body dimensions: 21.8x9.2x11.1mm
Mounting: THT
Insulation voltage: 3kV DC
Operating temperature: -40...85°C
Switching frequency: 100kHz
Protection: anti-overload OPP; short circuit protection SCP
| Anzahl | Privatkunde |
|---|---|
| 4+ | 23.16 EUR |
| 5+ | 21.12 EUR |
| 14+ | 19.84 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details EC3SAW-24S12HP CINCON
Description: DC DC CONVERTER 12V 3W, Features: Adjustable Output, Remote On/Off, Packaging: Tube, Package / Case: 8-SIP Module, 7 Leads, Size / Dimension: 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm), Mounting Type: Through Hole, Type: Isolated Module, Operating Temperature: -40°C ~ 85°C (With Derating), Applications: ITE (Commercial), Voltage - Input (Max): 36V, Approval Agency: CE, UL, Efficiency: 84%, Current - Output (Max): 250mA, Voltage - Input (Min): 9V, Voltage - Output 1: 12V, Power (Watts): 3 W, Number of Outputs: 1, Voltage - Isolation: 1.5 kV.
Weitere Produktangebote EC3SAW-24S12HP nach Preis ab 23.69 EUR bis 24.99 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
EC3SAW-24S12HP | Cincon Electronics Co. LTD |
Description: DC DC CONVERTER 12V 3W Features: Adjustable Output, Remote On/Off Packaging: Tube Package / Case: 8-SIP Module, 7 Leads Size / Dimension: 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) Mounting Type: Through Hole Type: Isolated Module Operating Temperature: -40°C ~ 85°C (With Derating) Applications: ITE (Commercial) Voltage - Input (Max): 36V Approval Agency: CE, UL Efficiency: 84% Current - Output (Max): 250mA Voltage - Input (Min): 9V Voltage - Output 1: 12V Power (Watts): 3 W Number of Outputs: 1 Voltage - Isolation: 1.5 kV |
auf Bestellung 23 Stücke: Lieferzeit 10-14 Tag (e) |
|
| EC3SAW-24S12HP |
|
Hersteller: Cincon Electronics Co. LTD
Description: DC DC CONVERTER 12V 3W
Features: Adjustable Output, Remote On/Off
Packaging: Tube
Package / Case: 8-SIP Module, 7 Leads
Size / Dimension: 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm)
Mounting Type: Through Hole
Type: Isolated Module
Operating Temperature: -40°C ~ 85°C (With Derating)
Applications: ITE (Commercial)
Voltage - Input (Max): 36V
Approval Agency: CE, UL
Efficiency: 84%
Current - Output (Max): 250mA
Voltage - Input (Min): 9V
Voltage - Output 1: 12V
Power (Watts): 3 W
Number of Outputs: 1
Voltage - Isolation: 1.5 kV
Description: DC DC CONVERTER 12V 3W
Features: Adjustable Output, Remote On/Off
Packaging: Tube
Package / Case: 8-SIP Module, 7 Leads
Size / Dimension: 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm)
Mounting Type: Through Hole
Type: Isolated Module
Operating Temperature: -40°C ~ 85°C (With Derating)
Applications: ITE (Commercial)
Voltage - Input (Max): 36V
Approval Agency: CE, UL
Efficiency: 84%
Current - Output (Max): 250mA
Voltage - Input (Min): 9V
Voltage - Output 1: 12V
Power (Watts): 3 W
Number of Outputs: 1
Voltage - Isolation: 1.5 kV
auf Bestellung 23 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 1+ | 24.99 EUR |
| 5+ | 24.43 EUR |
| 10+ | 23.69 EUR |
