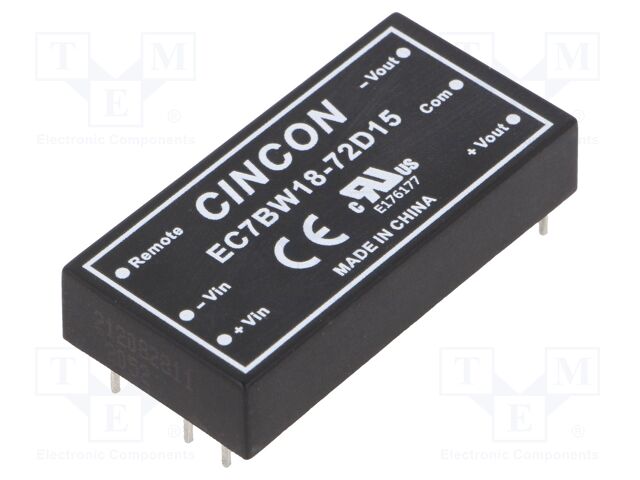

EC7BW18-72D15 Cincon
| Anzahl | Privatkunde |
|---|---|
| 1+ | 119.36 EUR |
| 5+ | 117.95 EUR |
| 10+ | 113.48 EUR |
| 25+ | 108.93 EUR |
| 50+ | 103.48 EUR |
| 100+ | 101.55 EUR |
Artikel auf Bestellung
Nicht an unserem Lager — wir beziehen ihn nach Ihrer Bestellung vom Lieferantenlager.
Lieferzeit:
10-14 Tag (e)
Produktrezensionen
Produktbewertung abgeben
Technische Details EC7BW18-72D15 Cincon
Description: DC DC CONVERTER +/-15V 20W, Features: Adjustable Output, Remote On/Off, Packaging: Tube, Package / Case: 6-DIP Module, Size / Dimension: 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm), Mounting Type: Through Hole, Type: Isolated Module, Operating Temperature: -40°C ~ 105°C (With Derating), Applications: ITE (Commercial), Railway, Voltage - Input (Max): 160V, Approval Agency: CB, CE, cURus, Efficiency: 89%, Current - Output (Max): 667mA, 667mA, Voltage - Input (Min): 8.5V, Voltage - Output 1: 15V, Voltage - Output 2: -15V, Control Features: Enable, Active High, Part Status: Active, Power (Watts): 20 W, Number of Outputs: 2, Voltage - Isolation: 3 kV, Standard Number: 50155; 62368-1.
Weitere Produktangebote EC7BW18-72D15 nach Preis ab 131.95 EUR bis 131.95 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde | ||
|---|---|---|---|---|---|---|---|
 |
EC7BW18-72D15 | Cincon Electronics Co. LTD |
 Description: DC DC CONVERTER +/-15V 20WFeatures: Adjustable Output, Remote On/Off Packaging: Tube Package / Case: 6-DIP Module Size / Dimension: 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) Mounting Type: Through Hole Type: Isolated Module Operating Temperature: -40°C ~ 105°C (With Derating) Applications: ITE (Commercial), Railway Voltage - Input (Max): 160V Approval Agency: CB, CE, cURus Efficiency: 89% Current - Output (Max): 667mA, 667mA Voltage - Input (Min): 8.5V Voltage - Output 1: 15V Voltage - Output 2: -15V Control Features: Enable, Active High Part Status: Active Power (Watts): 20 W Number of Outputs: 2 Voltage - Isolation: 3 kV Standard Number: 50155; 62368-1 |
auf Bestellung 2 Stücke: Lieferzeit 10-14 Tag (e) |
|
||
 |
EC7BW18-72D15 | CINCON |
Category: DC/DC Converters Description: Converter: DC/DC; 20W; Uin: 8.5÷160VDC; Uout: 15VDC; Uout2: -15VDC Mounting: THT Operating temperature: -40...85°C Manufacturer series: EC7BW18 Input voltage: 8.5...160V DC Switching frequency: 200kHz Output current: 0.667A Type of converter: DC/DC Protection: anti-overload OPP; over current OCP; short circuit protection SCP; voltage drop BOP Body dimensions: 50.8x25.4x10.2mm Efficiency: 88% Application: railway industry Insulation voltage: 3kV DC Power: 20W Output voltage: 15V DC Conform to the norm: EN 50155 Number of outputs: 2 Output voltage 2: -15V DC |
auf Bestellung 10 Stücke: Lieferzeit 14-21 Tag (e) |
Im Einkaufswagen Stück im Wert von UAH |
| EC7BW18-72D15 |
|
Hersteller: Cincon Electronics Co. LTD
Description: DC DC CONVERTER +/-15V 20W
Features: Adjustable Output, Remote On/Off
Packaging: Tube
Package / Case: 6-DIP Module
Size / Dimension: 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm)
Mounting Type: Through Hole
Type: Isolated Module
Operating Temperature: -40°C ~ 105°C (With Derating)
Applications: ITE (Commercial), Railway
Voltage - Input (Max): 160V
Approval Agency: CB, CE, cURus
Efficiency: 89%
Current - Output (Max): 667mA, 667mA
Voltage - Input (Min): 8.5V
Voltage - Output 1: 15V
Voltage - Output 2: -15V
Control Features: Enable, Active High
Part Status: Active
Power (Watts): 20 W
Number of Outputs: 2
Voltage - Isolation: 3 kV
Standard Number: 50155; 62368-1
Description: DC DC CONVERTER +/-15V 20W
Features: Adjustable Output, Remote On/Off
Packaging: Tube
Package / Case: 6-DIP Module
Size / Dimension: 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm)
Mounting Type: Through Hole
Type: Isolated Module
Operating Temperature: -40°C ~ 105°C (With Derating)
Applications: ITE (Commercial), Railway
Voltage - Input (Max): 160V
Approval Agency: CB, CE, cURus
Efficiency: 89%
Current - Output (Max): 667mA, 667mA
Voltage - Input (Min): 8.5V
Voltage - Output 1: 15V
Voltage - Output 2: -15V
Control Features: Enable, Active High
Part Status: Active
Power (Watts): 20 W
Number of Outputs: 2
Voltage - Isolation: 3 kV
Standard Number: 50155; 62368-1
auf Bestellung 2 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 1+ | 131.95 EUR |
| EC7BW18-72D15 |
|
Hersteller: CINCON
Category: DC/DC Converters
Description: Converter: DC/DC; 20W; Uin: 8.5÷160VDC; Uout: 15VDC; Uout2: -15VDC
Mounting: THT
Operating temperature: -40...85°C
Manufacturer series: EC7BW18
Input voltage: 8.5...160V DC
Switching frequency: 200kHz
Output current: 0.667A
Type of converter: DC/DC
Protection: anti-overload OPP; over current OCP; short circuit protection SCP; voltage drop BOP
Body dimensions: 50.8x25.4x10.2mm
Efficiency: 88%
Application: railway industry
Insulation voltage: 3kV DC
Power: 20W
Output voltage: 15V DC
Conform to the norm: EN 50155
Number of outputs: 2
Output voltage 2: -15V DC
Category: DC/DC Converters
Description: Converter: DC/DC; 20W; Uin: 8.5÷160VDC; Uout: 15VDC; Uout2: -15VDC
Mounting: THT
Operating temperature: -40...85°C
Manufacturer series: EC7BW18
Input voltage: 8.5...160V DC
Switching frequency: 200kHz
Output current: 0.667A
Type of converter: DC/DC
Protection: anti-overload OPP; over current OCP; short circuit protection SCP; voltage drop BOP
Body dimensions: 50.8x25.4x10.2mm
Efficiency: 88%
Application: railway industry
Insulation voltage: 3kV DC
Power: 20W
Output voltage: 15V DC
Conform to the norm: EN 50155
Number of outputs: 2
Output voltage 2: -15V DC
auf Bestellung 10 Stücke:
Lieferzeit 14-21 Tag (e)
