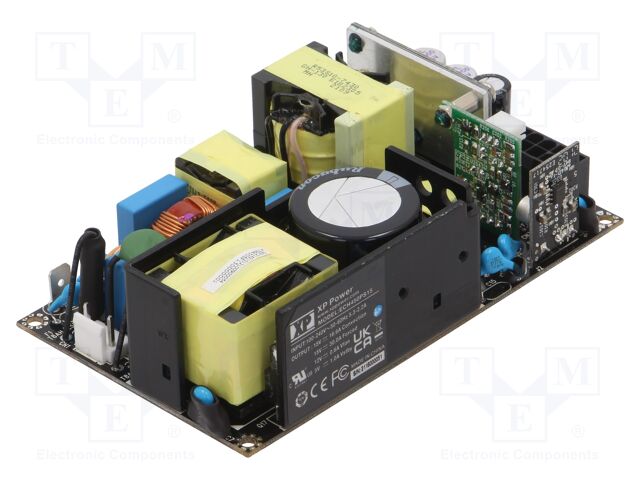

ECH450PS15 XP POWER
Hersteller: XP POWER
Category: Open Frame Power Supplies
Description: Power supply: switching; open; 450W; 90÷264VAC; OUT: 2; 15VDC; 16.6A
Type of power supply: switching
Output voltage: 15V DC
Power: 450W
Supply voltage: 90...264V AC
Kind of power supply: open
Body dimensions: 76.2x127x36.1mm
Operating temperature: -20...70°C
Protection: anti-overload OPP; short circuit protection SCP
Efficiency: 93%
Electrical connection: connector with snap lock
Application: IT; medical applications
Mounting: mounting holes
Caution!: the maximum current only with additional cooling
Power consumption without load: <0.9W
Number of outputs: 2
Dimensions: 5"x3"
Output current: 16.6A
Insulation voltage: 4kV
Additional functions: 5V standby; auxiliary DC output 12V/600mA; remote ON/OFF control
Manufacturer series: ECH450
Produktrezensionen
Produktbewertung abgeben
Technische Details ECH450PS15 XP POWER
Category: Open Frame Power Supplies, Description: Power supply: switching; open; 450W; 90÷264VAC; OUT: 2; 15VDC; 16.6A, Type of power supply: switching, Output voltage: 15V DC, Power: 450W, Supply voltage: 90...264V AC, Kind of power supply: open, Body dimensions: 76.2x127x36.1mm, Operating temperature: -20...70°C, Protection: anti-overload OPP; short circuit protection SCP, Efficiency: 93%, Electrical connection: connector with snap lock, Application: IT; medical applications, Mounting: mounting holes, Caution!: the maximum current only with additional cooling, Power consumption without load: .
Weitere Produktangebote ECH450PS15 nach Preis ab 289.3 EUR bis 344.42 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
ECH450PS15 | XP Power |
Description: AC/DC CONVERTER 15V 249W Power (Watts): 249W (450W Forced Air) Features: Remote On/Off, Standby Output, Universal Input Packaging: Bulk Size / Dimension: 5.00" L x 3.00" W x 1.26" H (127.0mm x 76.2mm x 32.0mm) Mounting Type: Chassis Mount Voltage - Input: 90 ~ 264 VAC Type: Open Frame Operating Temperature: -20°C ~ 70°C (With Derating) Applications: ITE (Commercial), Medical Approval Agency: CB, CE, TUV, UL Efficiency: 95% Voltage - Output 1: 15V Part Status: Active Number of Outputs: 1 Voltage - Isolation: 4 kV Standard Number: 62368-1 Current - Output 1: 16.6 A |
auf Bestellung 25 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||
 |
ECH450PS15 | XP Power |
Switching Power Supplies AC-DC 450W 3x5" ITE & MEDICAL |
auf Bestellung 3 Stücke: Lieferzeit 10-14 Tag (e) |
|
| ECH450PS15 |
|
Hersteller: XP Power
Description: AC/DC CONVERTER 15V 249W
Power (Watts): 249W (450W Forced Air)
Features: Remote On/Off, Standby Output, Universal Input
Packaging: Bulk
Size / Dimension: 5.00" L x 3.00" W x 1.26" H (127.0mm x 76.2mm x 32.0mm)
Mounting Type: Chassis Mount
Voltage - Input: 90 ~ 264 VAC
Type: Open Frame
Operating Temperature: -20°C ~ 70°C (With Derating)
Applications: ITE (Commercial), Medical
Approval Agency: CB, CE, TUV, UL
Efficiency: 95%
Voltage - Output 1: 15V
Part Status: Active
Number of Outputs: 1
Voltage - Isolation: 4 kV
Standard Number: 62368-1
Current - Output 1: 16.6 A
Description: AC/DC CONVERTER 15V 249W
Power (Watts): 249W (450W Forced Air)
Features: Remote On/Off, Standby Output, Universal Input
Packaging: Bulk
Size / Dimension: 5.00" L x 3.00" W x 1.26" H (127.0mm x 76.2mm x 32.0mm)
Mounting Type: Chassis Mount
Voltage - Input: 90 ~ 264 VAC
Type: Open Frame
Operating Temperature: -20°C ~ 70°C (With Derating)
Applications: ITE (Commercial), Medical
Approval Agency: CB, CE, TUV, UL
Efficiency: 95%
Voltage - Output 1: 15V
Part Status: Active
Number of Outputs: 1
Voltage - Isolation: 4 kV
Standard Number: 62368-1
Current - Output 1: 16.6 A
auf Bestellung 25 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 1+ | 344.42 EUR |
| 5+ | 334.09 EUR |
| 10+ | 323.78 EUR |
| 25+ | 309.98 EUR |
| ECH450PS15 |
|
Hersteller: XP Power
Switching Power Supplies AC-DC 450W 3x5" ITE & MEDICAL
Switching Power Supplies AC-DC 450W 3x5" ITE & MEDICAL
auf Bestellung 3 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 1+ | 344.42 EUR |
| 5+ | 334.08 EUR |
| 10+ | 323.75 EUR |
| 28+ | 309.97 EUR |
| 112+ | 289.3 EUR |
