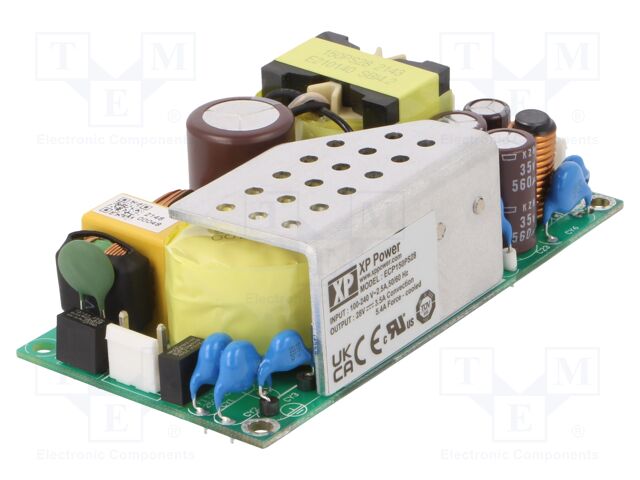

ECP150PS28 XP POWER
Hersteller: XP POWER
Category: Open Frame Power Supplies
Description: Power supply: switching; open; 150W; 85÷264VAC; OUT: 1; 28VDC; 5.4A
Operating temperature: -20...70°C
Body dimensions: 101.6x44.45x29.5mm
Power consumption without load: <0.5W
Number of outputs: 1
Output current: 5.4A
Output voltage: 28V DC
Supply voltage: 85...264V AC
Efficiency: 92%
Power: 150W
Insulation voltage: 4kV
Switching frequency: 60kHz
Protection: anti-overload OPP; anti-overvoltage OVP; short circuit protection SCP
Electrical connection: connector with snap lock
Manufacturer series: ECP
Application: medical applications; telecommunication
Mounting: mounting holes
Kind of power supply: open
Type of power supply: switching
Produktrezensionen
Produktbewertung abgeben
Technische Details ECP150PS28 XP POWER
Description: AC/DC CONVERTER 28V 100W, Current - Output 1: 3.5 A, Standard Number: 62368-1, Voltage - Isolation: 4 kV, Number of Outputs: 1, Part Status: Active, Voltage - Output 1: 28V, Efficiency: 92%, Approval Agency: CB, CE, TUV, UL, Applications: ITE (Commercial), Medical, Operating Temperature: -20°C ~ 70°C (With Derating), Type: Open Frame, Voltage - Input: 85 ~ 264 VAC, Mounting Type: Chassis Mount, Size / Dimension: 4.00" L x 2.00" W x 1.26" H (101.6mm x 50.8mm x 32.0mm), Features: Adjustable Output, Universal Input, Power (Watts): 100W (150W Forced Air), Packaging: Box.
Weitere Produktangebote ECP150PS28 nach Preis ab 171.29 EUR bis 213.5 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
ECP150PS28 | XP Power |
Description: AC/DC CONVERTER 28V 100W Current - Output 1: 3.5 A Standard Number: 62368-1 Voltage - Isolation: 4 kV Number of Outputs: 1 Part Status: Active Voltage - Output 1: 28V Efficiency: 92% Approval Agency: CB, CE, TUV, UL Applications: ITE (Commercial), Medical Operating Temperature: -20°C ~ 70°C (With Derating) Type: Open Frame Voltage - Input: 85 ~ 264 VAC Mounting Type: Chassis Mount Size / Dimension: 4.00" L x 2.00" W x 1.26" H (101.6mm x 50.8mm x 32.0mm) Features: Adjustable Output, Universal Input Power (Watts): 100W (150W Forced Air) Packaging: Box |
auf Bestellung 145 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||
 |
ECP150PS28 | XP Power |
AC/DC Power Supply Single-OUT 28V 3.5A 150W Medical 11-Pin |
auf Bestellung 10 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||
 |
ECP150PS28 | XP Power |
Power Supplies - Chassis Mount PSU, 150W, 1U 2X4" OPEN FRAME |
auf Bestellung 2 Stücke: Lieferzeit 10-14 Tag (e) |
|
| ECP150PS28 |
|
Hersteller: XP Power
Description: AC/DC CONVERTER 28V 100W
Current - Output 1: 3.5 A
Standard Number: 62368-1
Voltage - Isolation: 4 kV
Number of Outputs: 1
Part Status: Active
Voltage - Output 1: 28V
Efficiency: 92%
Approval Agency: CB, CE, TUV, UL
Applications: ITE (Commercial), Medical
Operating Temperature: -20°C ~ 70°C (With Derating)
Type: Open Frame
Voltage - Input: 85 ~ 264 VAC
Mounting Type: Chassis Mount
Size / Dimension: 4.00" L x 2.00" W x 1.26" H (101.6mm x 50.8mm x 32.0mm)
Features: Adjustable Output, Universal Input
Power (Watts): 100W (150W Forced Air)
Packaging: Box
Description: AC/DC CONVERTER 28V 100W
Current - Output 1: 3.5 A
Standard Number: 62368-1
Voltage - Isolation: 4 kV
Number of Outputs: 1
Part Status: Active
Voltage - Output 1: 28V
Efficiency: 92%
Approval Agency: CB, CE, TUV, UL
Applications: ITE (Commercial), Medical
Operating Temperature: -20°C ~ 70°C (With Derating)
Type: Open Frame
Voltage - Input: 85 ~ 264 VAC
Mounting Type: Chassis Mount
Size / Dimension: 4.00" L x 2.00" W x 1.26" H (101.6mm x 50.8mm x 32.0mm)
Features: Adjustable Output, Universal Input
Power (Watts): 100W (150W Forced Air)
Packaging: Box
auf Bestellung 145 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 1+ | 203.91 EUR |
| 5+ | 197.79 EUR |
| 10+ | 191.69 EUR |
| 25+ | 183.52 EUR |
| 100+ | 171.29 EUR |
| ECP150PS28 |
|
Hersteller: XP Power
AC/DC Power Supply Single-OUT 28V 3.5A 150W Medical 11-Pin
AC/DC Power Supply Single-OUT 28V 3.5A 150W Medical 11-Pin
auf Bestellung 10 Stücke:
Lieferzeit 14-21 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 1+ | 205.83 EUR |
| ECP150PS28 |
|
Hersteller: XP Power
Power Supplies - Chassis Mount PSU, 150W, 1U 2X4" OPEN FRAME
Power Supplies - Chassis Mount PSU, 150W, 1U 2X4" OPEN FRAME
auf Bestellung 2 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 1+ | 213.5 EUR |
| 5+ | 207.1 EUR |
| 10+ | 200.68 EUR |
| 25+ | 192.16 EUR |
| 120+ | 179.34 EUR |
