Produkte > COILTRONICS / EATON > ECST1V0805-1050-R
ECST1V0805-1050-R

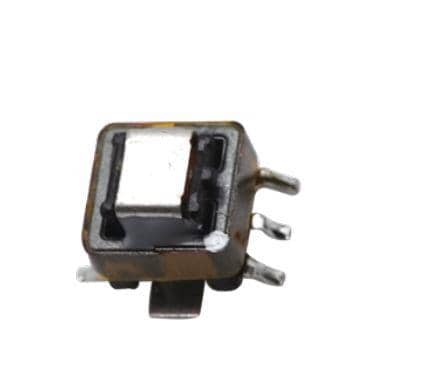

ECST1V0805-1050-R Coiltronics / Eaton

eaton-ecst1v0805-current-sense-transformer-data-sheet-elx1187-en.pdf Hersteller: Coiltronics / Eaton
Current Transformers 10A 1:50, 500 uH, 0.7 m? Pri, 1.85 ? Sec, 50 KHz-1MHz, SMT
auf Bestellung 1000 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis ohne MwSt
1+4.42 EUR
10+ 3.59 EUR
100+ 2.9 EUR
1000+ 2.46 EUR
Produktrezensionen
Produktbewertung abgeben

Technische Details ECST1V0805-1050-R Coiltronics / Eaton

Description: CURR SENSE XFMR 50:1 10A SMD, Packaging: Tape & Reel (TR), Size / Dimension: 0.330" L x 0.315" W (8.38mm x 8.00mm), Mounting Type: Surface Mount, Type: Invasive, Termination Style: Gull Wing, DC Resistance (DCR): 700mOhm Primary, 1.85Ohm Secondary Max, Turns Ratio - Primary:Secondary: 50:1, Frequency Range: 50kHz ~ 1MHz, Height - Seated (Max): 0.217" (5.50mm), Part Status: Active, Inductance: 500 µH, Current Rating (Amps): 10 A.

Weitere Produktangebote ECST1V0805-1050-R nach Preis ab 2.79 EUR bis 4.65 EUR

Foto Bezeichnung Hersteller Beschreibung Verfügbarkeit
Preis ohne MwSt
ECST1V0805-1050-R ECST1V0805-1050-R Hersteller : Eaton - Electronics Division eaton-ecst1v0805-current-sense-transformer-data-sheet-elx1187-en.pdf Description: CURR SENSE XFMR 50:1 10A SMD
Packaging: Cut Tape (CT)
Size / Dimension: 0.330" L x 0.315" W (8.38mm x 8.00mm)
Mounting Type: Surface Mount
Type: Invasive
Termination Style: Gull Wing
DC Resistance (DCR): 700mOhm Primary, 1.85Ohm Secondary Max
Turns Ratio - Primary:Secondary: 50:1
Frequency Range: 50kHz ~ 1MHz
Height - Seated (Max): 0.217" (5.50mm)
Part Status: Active
Inductance: 500 µH
Current Rating (Amps): 10 A
auf Bestellung 345 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis ohne MwSt
4+4.65 EUR
10+ 3.72 EUR
25+ 3.02 EUR
50+ 2.94 EUR
100+ 2.87 EUR
250+ 2.79 EUR
Mindestbestellmenge: 4
ECST1V0805-1050-R ECST1V0805-1050-R Hersteller : Eaton - Electronics Division eaton-ecst1v0805-current-sense-transformer-data-sheet-elx1187-en.pdf Description: CURR SENSE XFMR 50:1 10A SMD
Packaging: Tape & Reel (TR)
Size / Dimension: 0.330" L x 0.315" W (8.38mm x 8.00mm)
Mounting Type: Surface Mount
Type: Invasive
Termination Style: Gull Wing
DC Resistance (DCR): 700mOhm Primary, 1.85Ohm Secondary Max
Turns Ratio - Primary:Secondary: 50:1
Frequency Range: 50kHz ~ 1MHz
Height - Seated (Max): 0.217" (5.50mm)
Part Status: Active
Inductance: 500 µH
Current Rating (Amps): 10 A
Produkt ist nicht verfügbar
