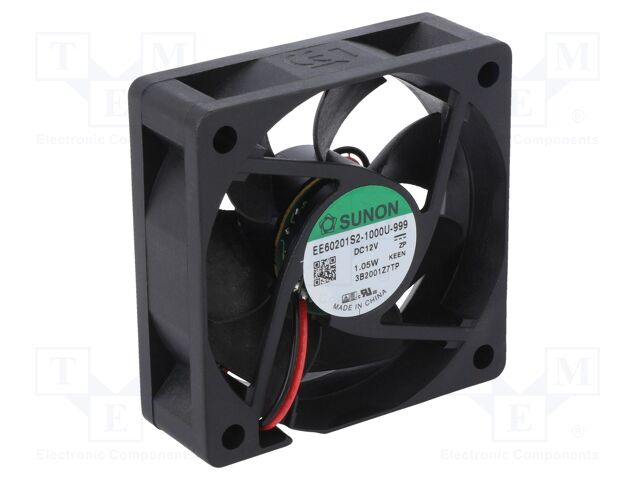

EE60201S2-1000U-999 SUNON
Hersteller: SUNON
Category: DC12V Fans
Description: Fan: DC; axial; 12VDC; 60x60x20mm; 31.43m3/h; 26.3dBA; slide
Type of fan: DC
Kind of fan: axial
Supply voltage: 12V DC
Operating voltage: 4.5...13.8V DC
Fan dimensions: 60x60x20mm
Power consumption: 0.99W
Current rating: 82mA
Fan efficiency: 31.43m3/h
Noise level: 26.3dBA
Kind of Bearing: slide
Rotational rate/speed: 3900rpm
Current and power consumption tolerance: ±15%
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Insulation class: A
Leads: leads x2
Lead length: 0.29m
Operating temperature: -10...70°C
Flammability rating: UL94V-0
Fan motor: brushless DC
| Anzahl | Privatkunde |
|---|---|
| 18+ | 4.9 EUR |
| 20+ | 4.44 EUR |
| 50+ | 4.13 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details EE60201S2-1000U-999 SUNON
Category: DC12V Fans, Description: Fan: DC; axial; 12VDC; 60x60x20mm; 31.43m3/h; 26.3dBA; slide, Type of fan: DC, Kind of fan: axial, Supply voltage: 12V DC, Operating voltage: 4.5...13.8V DC, Fan dimensions: 60x60x20mm, Power consumption: 0.99W, Current rating: 82mA, Fan efficiency: 31.43m3/h, Noise level: 26.3dBA, Kind of Bearing: slide, Rotational rate/speed: 3900rpm, Current and power consumption tolerance: ±15%, Min. insulation resistance: 10MΩ, Impeller material: thermoplastic, Enclosure material: thermoplastic, Insulation class: A, Leads: leads x2, Lead length: 0.29m, Operating temperature: -10...70°C, Flammability rating: UL94V-0, Fan motor: brushless DC.
