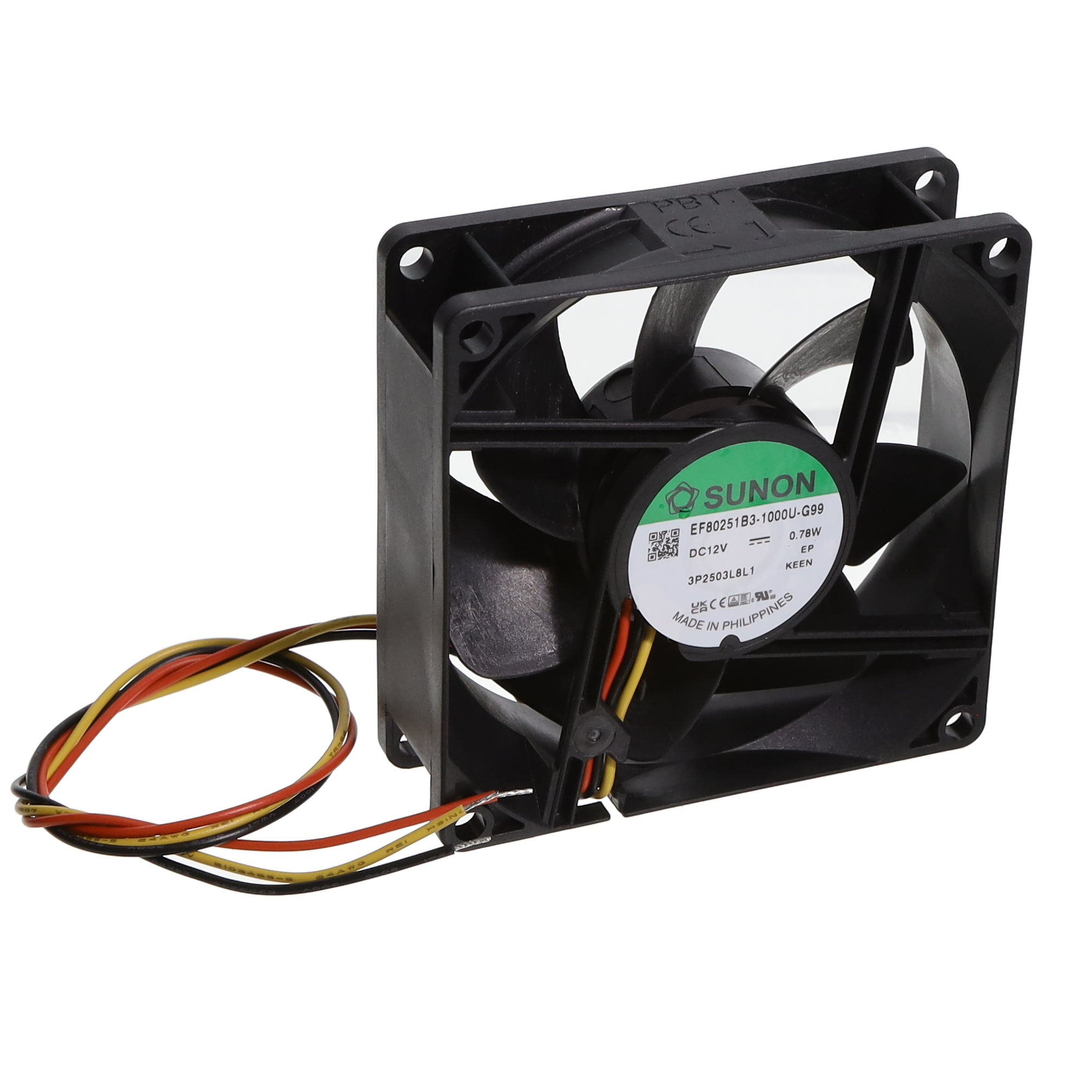

EF80251B3-1000U-G99 Sunon Fans
Hersteller: Sunon FansDescription: 12VDC FAN 80X25MM ALARM
Features: Auto Restart, Speed Sensor (Tach)
Packaging: Box
Voltage - Rated: 12VDC
Size / Dimension: Square - 80mm L x 80mm H
Bearing Type: Ball
RPM: 2600 RPM
Air Flow: 33.0 CFM (0.924m³/min)
Width: 25.00mm
Termination: 3 Wire Leads
Approval Agency: CCC, CE, cURus, TUV, UKCA
Fan Type: Tubeaxial
Noise: 28.0dB(A)
Static Pressure: 0.110 in H2O (27.4 Pa)
Power (Watts): 0.78 W
auf Bestellung 50 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 2+ | 16.4 EUR |
| 10+ | 13.53 EUR |
| 25+ | 12.42 EUR |
| 50+ | 11.62 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details EF80251B3-1000U-G99 Sunon Fans
Category: DC12V Fans, Description: Fan: DC; axial; 12VDC; 80x80x25mm; 56.1m3/h; 28dBA; ball; 2.79mmH2O, Type of fan: DC, Kind of fan: axial, Supply voltage: 12V DC, Operating voltage: 4.5...13.8V DC, Fan dimensions: 80x80x25mm, Power consumption: 0.78W, Current rating: 65mA, Fan efficiency: 56.1m3/h, Noise level: 28dBA, Kind of Bearing: ball, Rotational rate/speed: 2600 (±15%)rpm, Min. insulation resistance: 10MΩ, Impeller material: thermoplastic, Enclosure material: thermoplastic, Insulation class: A, Leads: leads x3, Lead length: 0.315m, Operating temperature: -10...70°C, Flammability rating: UL94V-0, Additional functions: autorestart; reverse polarity protection, Fan motor: brushless DC, Static pressure: 2.79mm H2O, Wire size: 24AWG.
Weitere Produktangebote EF80251B3-1000U-G99
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis |
|---|---|---|---|---|---|
| EF80251B3-1000U-G99 | Hersteller : Sunon |
Blowers & Centrifugal Fans DC Axial Fan, 80x80x25mm, 12VDC, Ball, 3x Lead Wires, Auto Restart, Tach |
Produkt ist nicht verfügbar |
||
| EF80251B3-1000U-G99 | Hersteller : SUNON |
Category: DC12V Fans Description: Fan: DC; axial; 12VDC; 80x80x25mm; 56.1m3/h; 28dBA; ball; 2.79mmH2O Type of fan: DC Kind of fan: axial Supply voltage: 12V DC Operating voltage: 4.5...13.8V DC Fan dimensions: 80x80x25mm Power consumption: 0.78W Current rating: 65mA Fan efficiency: 56.1m3/h Noise level: 28dBA Kind of Bearing: ball Rotational rate/speed: 2600 (±15%)rpm Min. insulation resistance: 10MΩ Impeller material: thermoplastic Enclosure material: thermoplastic Insulation class: A Leads: leads x3 Lead length: 0.315m Operating temperature: -10...70°C Flammability rating: UL94V-0 Additional functions: autorestart; reverse polarity protection Fan motor: brushless DC Static pressure: 2.79mm H2O Wire size: 24AWG |
Produkt ist nicht verfügbar |
