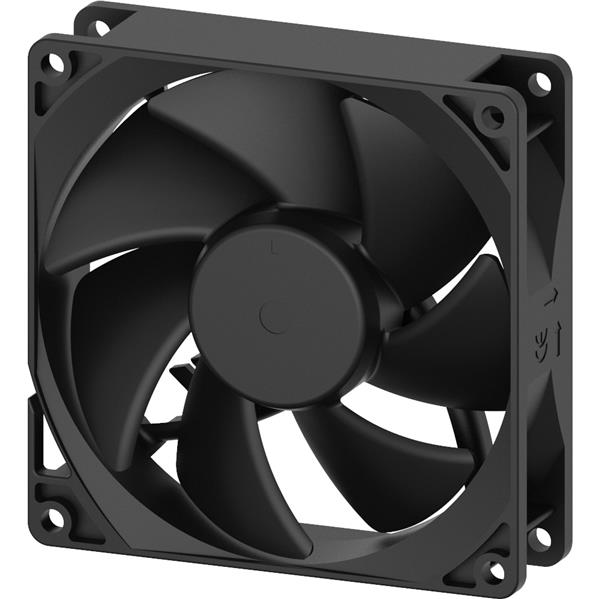

EF92252BX-1000U-H99 Sunon Fans
Hersteller: Sunon Fans
Description: 24DC FAN 92X25MM PWM
Features: Auto Restart, PWM Control
Packaging: Box
Voltage - Rated: 24VDC
Size / Dimension: Square - 92mm L x 92mm H
Bearing Type: Ball
RPM: 3400 RPM
Air Flow: 55.0 CFM (1.54m³/min)
Width: 25.00mm
Operating Temperature: 14 ~ 158°F (-10 ~ 70°C)
Termination: 3 Wire Leads
Approval Agency: CE, cURus, TUV, UKCA
Fan Type: Tubeaxial
Noise: 36.9dB(A)
Static Pressure: 0.210 in H2O (52.3 Pa)
Power (Watts): 2.16 W
| Anzahl | Privatkunde |
|---|---|
| 1+ | 31.39 EUR |
| 10+ | 25.36 EUR |
| 25+ | 23.11 EUR |
Artikel auf Bestellung
Nicht an unserem Lager — wir beziehen ihn nach Ihrer Bestellung vom Lieferantenlager.
Lieferzeit:
10-14 Tag (e)
Produktrezensionen
Produktbewertung abgeben
Technische Details EF92252BX-1000U-H99 Sunon Fans
Category: DC24V Fans, Description: Fan: DC; 92x92x25mm; axial; 24VDC; 93m3/h; 36.9dBA; ball; 5.33mmH2O, Insulation class: A, Fan efficiency: 93m3/h, Operating temperature: -10...70°C, Rotational rate/speed: 3400 (±15%)rpm, Enclosure material: thermoplastic, Kind of Bearing: ball, Fan motor: brushless DC, Leads: leads x3, Fan dimensions: 92x92x25mm, Min. insulation resistance: 10MΩ, Power consumption: 2.5W, Impeller material: thermoplastic, Type of fan: DC, Noise level: 36.9dBA, Additional functions: autorestart; reverse polarity protection, Lead length: 0.305m, Operating voltage: 20.4...27.6V DC, Kind of fan: axial, Wire size: 24AWG, Supply voltage: 24V DC, Flammability rating: UL94V-0, Current rating: 90mA, Static pressure: 5.33mm H2O.
Weitere Produktangebote EF92252BX-1000U-H99
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde |
|---|---|---|---|---|---|
 |
EF92252BX-1000U-H99 | Sunon |
DC Fans DC Axial Fan, 92x92x25mm, 24VDC, 55CFM, Ball, 3x Lead Wires, Auto Restart, PWM |
Produkt ist nicht verfügbar |
Im Einkaufswagen Stück im Wert von UAH |
| EF92252BX-1000U-H99 | SUNON |
Category: DC24V Fans Description: Fan: DC; 92x92x25mm; axial; 24VDC; 93m3/h; 36.9dBA; ball; 5.33mmH2O Insulation class: A Fan efficiency: 93m3/h Operating temperature: -10...70°C Rotational rate/speed: 3400 (±15%)rpm Enclosure material: thermoplastic Kind of Bearing: ball Fan motor: brushless DC Leads: leads x3 Fan dimensions: 92x92x25mm Min. insulation resistance: 10MΩ Power consumption: 2.5W Impeller material: thermoplastic Type of fan: DC Noise level: 36.9dBA Additional functions: autorestart; reverse polarity protection Lead length: 0.305m Operating voltage: 20.4...27.6V DC Kind of fan: axial Wire size: 24AWG Supply voltage: 24V DC Flammability rating: UL94V-0 Current rating: 90mA Static pressure: 5.33mm H2O |
Produkt ist nicht verfügbar |
Mindestbestellmenge: 200 Stücke Im Einkaufswagen Stück im Wert von UAH |
| EF92252BX-1000U-H99 |
|
Hersteller: Sunon
DC Fans DC Axial Fan, 92x92x25mm, 24VDC, 55CFM, Ball, 3x Lead Wires, Auto Restart, PWM
DC Fans DC Axial Fan, 92x92x25mm, 24VDC, 55CFM, Ball, 3x Lead Wires, Auto Restart, PWM
Produkt ist nicht verfügbar
Im Einkaufswagen
Stück im Wert von UAH
| EF92252BX-1000U-H99 |
|
Hersteller: SUNON
Category: DC24V Fans
Description: Fan: DC; 92x92x25mm; axial; 24VDC; 93m3/h; 36.9dBA; ball; 5.33mmH2O
Insulation class: A
Fan efficiency: 93m3/h
Operating temperature: -10...70°C
Rotational rate/speed: 3400 (±15%)rpm
Enclosure material: thermoplastic
Kind of Bearing: ball
Fan motor: brushless DC
Leads: leads x3
Fan dimensions: 92x92x25mm
Min. insulation resistance: 10MΩ
Power consumption: 2.5W
Impeller material: thermoplastic
Type of fan: DC
Noise level: 36.9dBA
Additional functions: autorestart; reverse polarity protection
Lead length: 0.305m
Operating voltage: 20.4...27.6V DC
Kind of fan: axial
Wire size: 24AWG
Supply voltage: 24V DC
Flammability rating: UL94V-0
Current rating: 90mA
Static pressure: 5.33mm H2O
Category: DC24V Fans
Description: Fan: DC; 92x92x25mm; axial; 24VDC; 93m3/h; 36.9dBA; ball; 5.33mmH2O
Insulation class: A
Fan efficiency: 93m3/h
Operating temperature: -10...70°C
Rotational rate/speed: 3400 (±15%)rpm
Enclosure material: thermoplastic
Kind of Bearing: ball
Fan motor: brushless DC
Leads: leads x3
Fan dimensions: 92x92x25mm
Min. insulation resistance: 10MΩ
Power consumption: 2.5W
Impeller material: thermoplastic
Type of fan: DC
Noise level: 36.9dBA
Additional functions: autorestart; reverse polarity protection
Lead length: 0.305m
Operating voltage: 20.4...27.6V DC
Kind of fan: axial
Wire size: 24AWG
Supply voltage: 24V DC
Flammability rating: UL94V-0
Current rating: 90mA
Static pressure: 5.33mm H2O
Produkt ist nicht verfügbar
Mindestbestellmenge: 200 Stücke
Im Einkaufswagen
Stück im Wert von UAH
