Produkte > SAMTEC > EHF-113-01-L-D-SM-LC
EHF-113-01-L-D-SM-LC

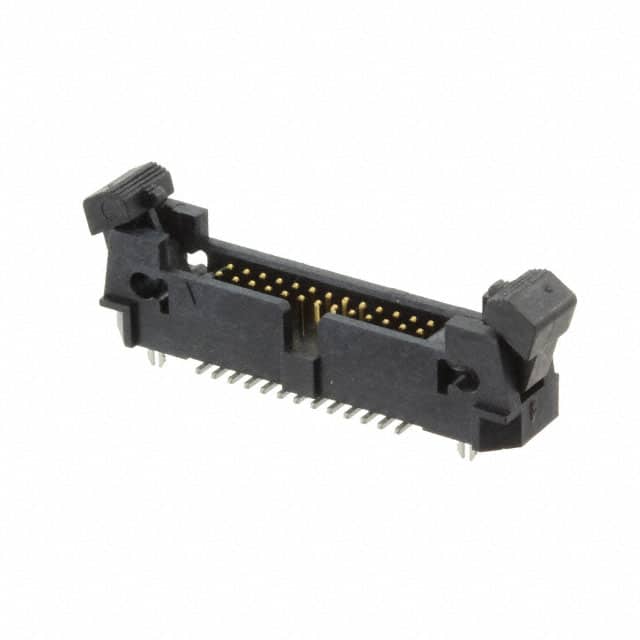

EHF-113-01-L-D-SM-LC Samtec


ehf-2854242.pdf Hersteller: Samtec
Headers & Wire Housings .050" Shrouded IDC Header with Ejectors
auf Bestellung 725 Stücke:

Lieferzeit 10-14 Tag (e)
Anzahl Preis ohne MwSt
1+16 EUR
10+ 14.4 EUR
18+ 13.57 EUR
108+ 12.87 EUR
252+ 11.48 EUR
504+ 10.79 EUR
1008+ 9.52 EUR
Produktrezensionen
Produktbewertung abgeben

Technische Details EHF-113-01-L-D-SM-LC Samtec

Description: CONN HEADER SMD 26POS 1.27MM, Packaging: Tube, Features: Board Lock, Keying Slot, Connector Type: Header, Current Rating (Amps): 1.75A, Mounting Type: Surface Mount, Number of Positions: 26, Number of Rows: 2, Style: Board to Cable/Wire, Operating Temperature: -55°C ~ 125°C, Contact Type: Male Pin, Fastening Type: Latch Lock/Eject Hooks, Number of Positions Loaded: All, Termination: Solder, Contact Material: Phosphor Bronze, Insulation Color: Black, Pitch - Mating: 0.050" (1.27mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: 10.0µin (0.25µm), Contact Finish - Post: Tin, Part Status: Active, Contact Shape: Square, Insulation Height: 0.325" (8.25mm), Shrouding: Shrouded - 4 Wall, Insulation Material: Liquid Crystal Polymer (LCP), Glass Filled, Row Spacing - Mating: 0.050" (1.27mm), Contact Length - Mating: 0.120" (3.05mm).

Weitere Produktangebote EHF-113-01-L-D-SM-LC nach Preis ab 10.25 EUR bis 17.21 EUR

Foto Bezeichnung Hersteller Beschreibung Verfügbarkeit
Preis ohne MwSt
EHF-113-01-L-D-SM-LC EHF-113-01-L-D-SM-LC Hersteller : Samtec Inc. ehf.pdf Description: CONN HEADER SMD 26POS 1.27MM
Packaging: Tube
Features: Board Lock, Keying Slot
Connector Type: Header
Current Rating (Amps): 1.75A
Mounting Type: Surface Mount
Number of Positions: 26
Number of Rows: 2
Style: Board to Cable/Wire
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Latch Lock/Eject Hooks
Number of Positions Loaded: All
Termination: Solder
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.050" (1.27mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Insulation Height: 0.325" (8.25mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Liquid Crystal Polymer (LCP), Glass Filled
Row Spacing - Mating: 0.050" (1.27mm)
Contact Length - Mating: 0.120" (3.05mm)
auf Bestellung 4465 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis ohne MwSt
2+17.21 EUR
10+ 15.49 EUR
100+ 13.84 EUR
500+ 11.6 EUR
1000+ 10.25 EUR
Mindestbestellmenge: 2
EHF-113-01-L-D-SM-LC EHF-113-01-L-D-SM-LC Hersteller : SAMTEC SAMIS23094-1.pdf?hkey=6D3A4C79FDBF58556ACFDE234799DDF0 Description: SAMTEC - EHF-113-01-L-D-SM-LC - Stiftleiste, Wire-to-Board, 1.27 mm, 2 Reihe(n), 26 Kontakt(e), Oberflächenmontage, EHF
tariffCode: 85366930
rohsCompliant: YES
Kontaktüberzug: Vergoldete Kontakte
hazardous: false
rohsPhthalatesCompliant: YES
Kontaktmaterial: Phosphorbronze
usEccn: EAR99
Steckverbinderkragen: Mit Kragen
Anzahl der Kontakte: 26Kontakt(e)
euEccn: NLR
Steckverbindersysteme: Wire-to-Board
Produktpalette: EHF
productTraceability: No
Kontaktanschluss: Oberflächenmontage
Anzahl der Reihen: 2Reihe(n)
Rastermaß: 1.27mm
SVHC: No SVHC (17-Jan-2023)
auf Bestellung 47 Stücke:
Lieferzeit 14-21 Tag (e)
