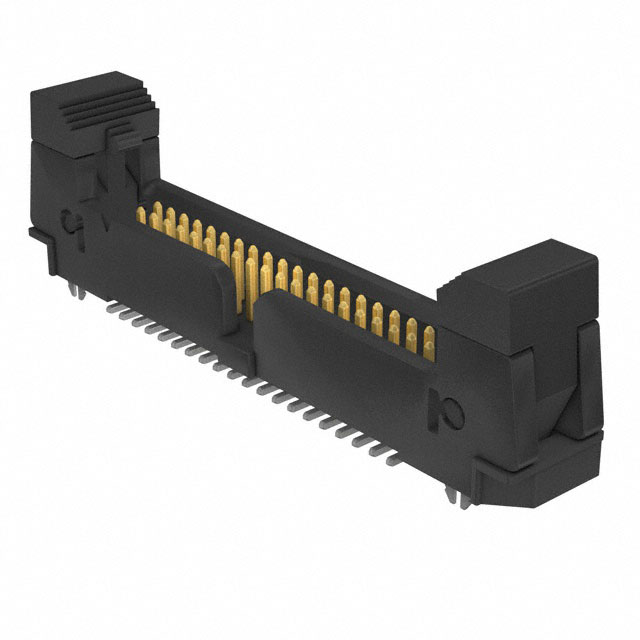

EHF-120-01-L-D-SM-LC Samtec Inc.
Hersteller: Samtec Inc.Description: CONN HEADER SMD 40POS 1.27MM
Features: Board Lock, Keying Slot
Packaging: Tube
Connector Type: Header
Current Rating (Amps): 1.75A
Mounting Type: Surface Mount
Number of Positions: 40
Number of Rows: 2
Style: Board to Cable/Wire
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Latch Lock/Eject Hooks
Number of Positions Loaded: All
Termination: Solder
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.050" (1.27mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Insulation Height: 0.325" (8.25mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Liquid Crystal Polymer (LCP), Glass Filled
Row Spacing - Mating: 0.050" (1.27mm)
Contact Length - Mating: 0.120" (3.05mm)
auf Bestellung 4149 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 3+ | 6.46 EUR |
| 10+ | 5.48 EUR |
| 100+ | 4.66 EUR |
| 500+ | 4.16 EUR |
| 1000+ | 3.97 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details EHF-120-01-L-D-SM-LC Samtec Inc.
Description: CONN HEADER SMD 40POS 1.27MM, Features: Board Lock, Keying Slot, Packaging: Tube, Connector Type: Header, Current Rating (Amps): 1.75A, Mounting Type: Surface Mount, Number of Positions: 40, Number of Rows: 2, Style: Board to Cable/Wire, Operating Temperature: -55°C ~ 125°C, Contact Type: Male Pin, Fastening Type: Latch Lock/Eject Hooks, Number of Positions Loaded: All, Termination: Solder, Contact Material: Phosphor Bronze, Insulation Color: Black, Pitch - Mating: 0.050" (1.27mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: 10.0µin (0.25µm), Contact Finish - Post: Tin, Part Status: Active, Contact Shape: Square, Insulation Height: 0.325" (8.25mm), Shrouding: Shrouded - 4 Wall, Insulation Material: Liquid Crystal Polymer (LCP), Glass Filled, Row Spacing - Mating: 0.050" (1.27mm), Contact Length - Mating: 0.120" (3.05mm).
Weitere Produktangebote EHF-120-01-L-D-SM-LC nach Preis ab 7.11 EUR bis 11.77 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
EHF-120-01-L-D-SM-LC | Hersteller : Samtec |
Headers & Wire Housings .050" Shrouded IDC Header with Ejectors |
auf Bestellung 855 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||||
 |
EHF-120-01-L-D-SM-LC | Hersteller : Samtec |
Conn Ejector Header HDR 40 POS 1.27mm Solder ST Top Entry SMD Tube |
auf Bestellung 30 Stücke: Lieferzeit 14-21 Tag (e) |
|||||||||||||||||
 |
EHF-120-01-L-D-SM-LC | Hersteller : SAMTEC |
Description: SAMTEC - EHF-120-01-L-D-SM-LC - Stiftleiste, Wannenstecker, Wire-to-Board, 1.27 mm, 2 Reihe(n), 40 Kontakt(e), Oberflächenmontage tariffCode: 85366930 rohsCompliant: YES Kontaktüberzug: Vergoldete Kontakte hazardous: false rohsPhthalatesCompliant: YES Kontaktmaterial: Phosphorbronze usEccn: EAR99 Steckverbinderkragen: Mit Kragen Anzahl der Kontakte: 40Kontakt(e) euEccn: NLR Steckverbindersysteme: Wire-to-Board Steckverbindertyp: PCB-Stiftleiste Produktpalette: EHF productTraceability: No Kontaktanschluss: Oberflächenmontage Anzahl der Reihen: 2Reihe(n) Rastermaß: 1.27mm SVHC: No SVHC (21-Jan-2025) |
auf Bestellung 59 Stücke: Lieferzeit 14-21 Tag (e) |
