Produkte > SAMTEC INC. > EHF-120-01-L-D-SM-P
EHF-120-01-L-D-SM-P

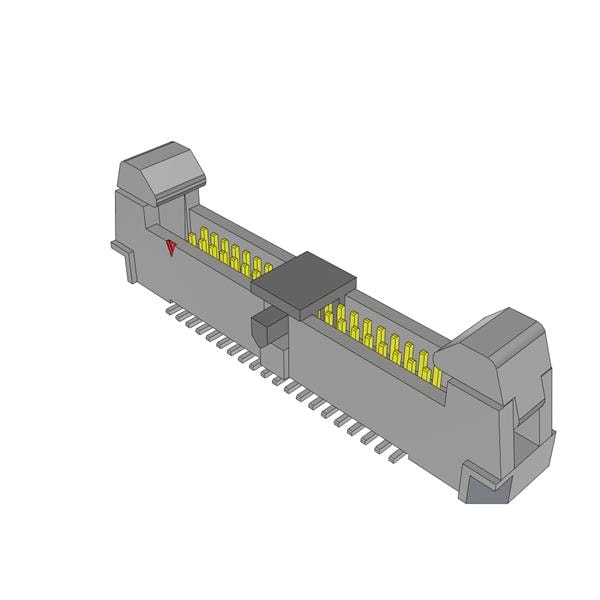

EHF-120-01-L-D-SM-P Samtec Inc.

ehf.pdf Hersteller: Samtec Inc.
Description: CONN HEADER SMD 40POS 1.27MM
Features: Keying Slot, Pick and Place
Packaging: Tube
Connector Type: Header
Current Rating (Amps): 1.75A
Mounting Type: Surface Mount
Number of Positions: 40
Number of Rows: 2
Style: Board to Cable/Wire
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Latch Lock/Eject Hooks
Number of Positions Loaded: All
Termination: Solder
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.050" (1.27mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Insulation Height: 0.325" (8.25mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Liquid Crystal Polymer (LCP), Glass Filled
Row Spacing - Mating: 0.050" (1.27mm)
Contact Length - Mating: 0.120" (3.05mm)
auf Bestellung 40 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis ohne MwSt
1+19.99 EUR
10+ 17.99 EUR
Produktrezensionen
Produktbewertung abgeben

Technische Details EHF-120-01-L-D-SM-P Samtec Inc.

Description: CONN HEADER SMD 40POS 1.27MM, Features: Keying Slot, Pick and Place, Packaging: Tube, Connector Type: Header, Current Rating (Amps): 1.75A, Mounting Type: Surface Mount, Number of Positions: 40, Number of Rows: 2, Style: Board to Cable/Wire, Operating Temperature: -55°C ~ 125°C, Contact Type: Male Pin, Fastening Type: Latch Lock/Eject Hooks, Number of Positions Loaded: All, Termination: Solder, Contact Material: Phosphor Bronze, Insulation Color: Black, Pitch - Mating: 0.050" (1.27mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: 10.0µin (0.25µm), Contact Finish - Post: Tin, Part Status: Active, Contact Shape: Square, Insulation Height: 0.325" (8.25mm), Shrouding: Shrouded - 4 Wall, Insulation Material: Liquid Crystal Polymer (LCP), Glass Filled, Row Spacing - Mating: 0.050" (1.27mm), Contact Length - Mating: 0.120" (3.05mm).

Weitere Produktangebote EHF-120-01-L-D-SM-P

Foto Bezeichnung Hersteller Beschreibung Verfügbarkeit
Preis ohne MwSt
EHF-120-01-L-D-SM-P EHF-120-01-L-D-SM-P Hersteller : Samtec eshf.pdf Conn Ejector Header HDR 40 POS 1.27mm Solder ST Top Entry SMD Tube
auf Bestellung 54 Stücke:
Lieferzeit 14-21 Tag (e)
EHF-120-01-L-D-SM-P EHF-120-01-L-D-SM-P Hersteller : Samtec ehf-1369997.pdf Headers & Wire Housings .050" Shrouded IDC Ejector Header
auf Bestellung 8 Stücke:
Lieferzeit 10-14 Tag (e)
