Produkte > ECE > ERD116RSZ

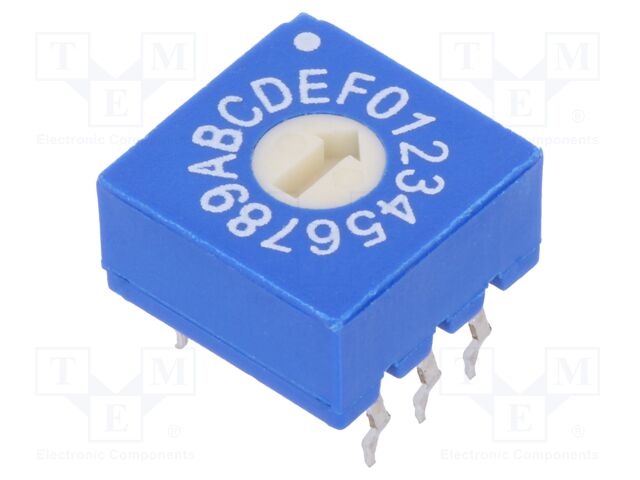

ERD116RSZ

ERD116RSZ ECE

pVersion=0046&contRep=ZT&docId=E1FE723906D4FEF1A303005056AB0C4F&compId=products_1_20120720164938.pdf?ci_sign=cd581b8e26f6dac0f45cccca35298dd014fca000 Hersteller: ECE
Category: Encoding Switches
Description: Encoding switch; HEX/BCD; Pos: 16; THT; Rcont max: 100mΩ; 4.9Ncm
Type of switch: encoding switch
Stable positions number: 16
Number of positions: 16
Operating temperature: -25...70°C
Mounting: THT
Leads: for PCB
Max. contact resistance:: 100mΩ
DC contacts rating @R: 25mA / 24V DC
Terminal pitch: 2.54mm
Body dimensions: 10x10x5.4mm
Manufacturer series: ERD
Contact plating: gold-plated
Flammability rating: UL94V-0
Switches features: without knob
Switching torque: 4.9Ncm
Soldering temperature: 260°C / 5 s
Min. insulation resistance: 1GΩ
Contact material: copper alloy
Kind of encoding switch: HEX/BCD
Output code: real code
auf Bestellung 2521 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
32+2.29 EUR
35+2.07 EUR
37+1.96 EUR
100+1.74 EUR
500+1.53 EUR
Mindestbestellmenge: 32
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details ERD116RSZ ECE

Category: Encoding Switches, Description: Encoding switch; HEX/BCD; Pos: 16; THT; Rcont max: 100mΩ; 4.9Ncm, Type of switch: encoding switch, Stable positions number: 16, Number of positions: 16, Operating temperature: -25...70°C, Mounting: THT, Leads: for PCB, Max. contact resistance:: 100mΩ, DC contacts rating @R: 25mA / 24V DC, Terminal pitch: 2.54mm, Body dimensions: 10x10x5.4mm, Manufacturer series: ERD, Contact plating: gold-plated, Flammability rating: UL94V-0, Switches features: without knob, Switching torque: 4.9Ncm, Soldering temperature: 260°C / 5 s, Min. insulation resistance: 1GΩ, Contact material: copper alloy, Kind of encoding switch: HEX/BCD, Output code: real code, Anzahl je Verpackung: 1 Stücke.
