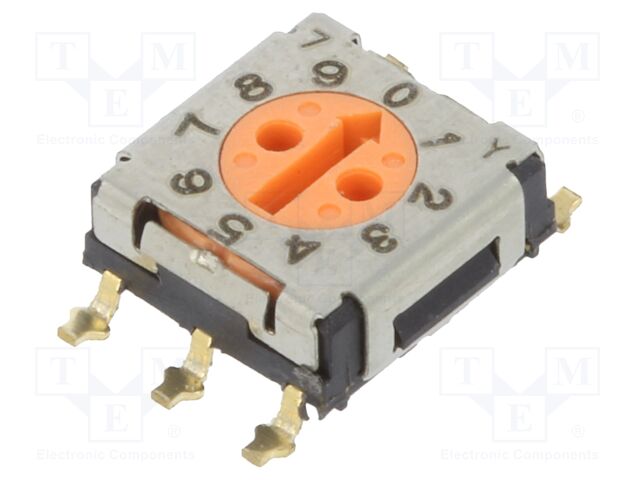

ERD710RM06Z ECE

Category: Encoding Switches, Description: Encoding switch; DEC/BCD; Pos: 10; SMT; Rcont max: 200mΩ; 5.1Ncm, Type of switch: encoding switch, Kind of encoding switch: DEC/BCD, Number of positions: 10, Operating temperature: -40...85°C, Mounting: SMT, Leads: for PCB, Max. contact resistance:: 200mΩ, DC contacts rating @R: 0.1A / 5V DC, Min. insulation resistance: 0.1GΩ, Switches features: arrow shaped slot type; without knob, Switching torque: 5.1Ncm, Body dimensions: 7.2x7.2x3mm, Manufacturer series: ERD7, Contact plating: gold-plated, Contact material: copper alloy, Flammability rating: UL94V-0, Soldering temperature: 245°C / 5 s, Output code: real code, Terminal pitch: 2.54mm.
