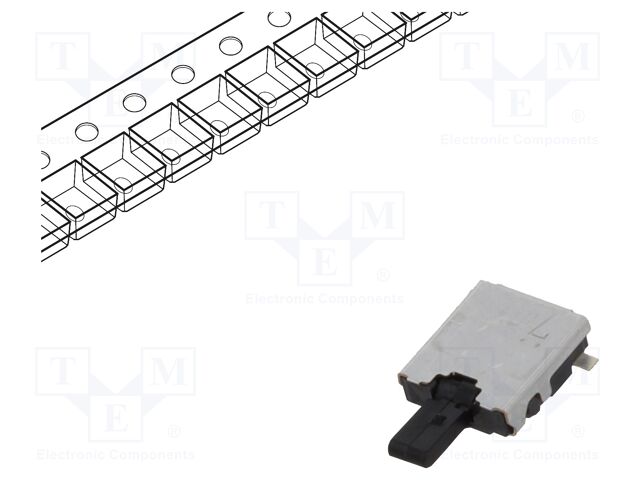

ESE13H01D PANASONIC
Hersteller: PANASONICCategory: Detect Switches
Description: Switch: detecting; Pos: 2; SPST; 0.01A/5VDC; Leads: straight; ESE13
Type of switch: detecting
Mounting: SMT
Switching method: OFF-(ON)
Contacts configuration: SPST
Operating temperature: -10...60°C
DC contacts rating @R: 0.01A / 5V DC
Max. contact resistance:: 500mΩ
Operating Force: 0.3N
Stable positions number: 1
Number of positions: 2
Mechanical durability: 50000 cycles
Manufacturer series: ESE13
Leads: straight
Anzahl je Verpackung: 1 Stücke
auf Bestellung 9718 Stücke:
Lieferzeit 7-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 100+ | 0.72 EUR |
| 132+ | 0.54 EUR |
| 150+ | 0.48 EUR |
| 158+ | 0.45 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details ESE13H01D PANASONIC
Description: SWITCH DETECTOR SPST-NO 0.01A 5V, Packaging: Tape & Reel (TR), Features: Board Guide, Current Rating (Amps): 10mA (DC), Mounting Type: Surface Mount, Right Angle, Circuit: SPST-NO, Switch Function: Off-Mom, Operating Temperature: -10°C ~ 60°C, Termination Style: SMD (SMT) Tab, Actuator Type: Angled Toggle (Detector), Operating Force: 30gf, Pretravel: 15°, Overtravel: 60°, Part Status: Active, Voltage Rating - DC: 5 V, Operating Position: 15°, Mechanical Life: 50,000 Cycles, Electrical Life: 50,000 Cycles.
Weitere Produktangebote ESE13H01D nach Preis ab 0.45 EUR bis 1.05 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
+1 |
ESE13H01D | Hersteller : PANASONIC |
Category: Detect Switches Description: Switch: detecting; Pos: 2; SPST; 0.01A/5VDC; Leads: straight; ESE13 Type of switch: detecting Mounting: SMT Switching method: OFF-(ON) Contacts configuration: SPST Operating temperature: -10...60°C DC contacts rating @R: 0.01A / 5V DC Max. contact resistance:: 500mΩ Operating Force: 0.3N Stable positions number: 1 Number of positions: 2 Mechanical durability: 50000 cycles Manufacturer series: ESE13 Leads: straight |
auf Bestellung 9718 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||||||||||
 |
ESE-13H01D | Hersteller : Panasonic Electronic Components |
Description: SWITCH DETECTOR SPST-NO 0.01A 5V Packaging: Tape & Reel (TR) Features: Board Guide Current Rating (Amps): 10mA (DC) Mounting Type: Surface Mount, Right Angle Circuit: SPST-NO Switch Function: Off-Mom Operating Temperature: -10°C ~ 60°C Termination Style: SMD (SMT) Tab Actuator Type: Angled Toggle (Detector) Operating Force: 30gf Pretravel: 15° Overtravel: 60° Part Status: Active Voltage Rating - DC: 5 V Operating Position: 15° Mechanical Life: 50,000 Cycles Electrical Life: 50,000 Cycles |
auf Bestellung 10000 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||||||
|
|
ESE-13H01D | Hersteller : Panasonic Electronic Components |
Description: SWITCH DETECTOR SPST-NO 0.01A 5V Packaging: Cut Tape (CT) Features: Board Guide Current Rating (Amps): 10mA (DC) Mounting Type: Surface Mount, Right Angle Circuit: SPST-NO Switch Function: Off-Mom Operating Temperature: -10°C ~ 60°C Termination Style: SMD (SMT) Tab Actuator Type: Angled Toggle (Detector) Operating Force: 30gf Pretravel: 15° Overtravel: 60° Part Status: Active Voltage Rating - DC: 5 V Operating Position: 15° Mechanical Life: 50,000 Cycles Electrical Life: 50,000 Cycles |
auf Bestellung 15375 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||||||
 |
ESE-13H01D | Hersteller : Panasonic |
Detector Switches 1VLSuper Thin 1.2mm DETECTOR SWITCH |
auf Bestellung 5383 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||||||
 |
ESE13H01D | Hersteller : PANASONIC |
Description: PANASONIC - ESE13H01D - Erkennungsschalter, ESE13 Series, SPST-NO, Lötanschluss, 10 mA, 5 V, 1.2 mm tariffCode: 85365019 rohsCompliant: YES Schalteranschlüsse: Lötanschluss hazardous: false rohsPhthalatesCompliant: YES Kontaktstrom, max.: 10mA usEccn: EAR99 Außenbreite: 3.6mm Außentiefe: 4.2mm euEccn: NLR DC-Kontaktspannung, nom.: 5V Außenhöhe: 1.2mm Produktpalette: ESE13 Series productTraceability: No Kontaktkonfiguration: SPST-NO SVHC: No SVHC (25-Jun-2025) |
auf Bestellung 5484 Stücke: Lieferzeit 14-21 Tag (e) |
|||||||||||||||||||
|
|
ESE13H01D | Hersteller : PANASONIC |
Description: PANASONIC - ESE13H01D - Erkennungsschalter, ESE13 Series, SPST-NO, Lötanschluss, 10 mA, 5 V, 1.2 mm tariffCode: 85365019 rohsCompliant: YES Schalteranschlüsse: Lötanschluss hazardous: false rohsPhthalatesCompliant: YES Kontaktstrom, max.: 10mA usEccn: EAR99 Außenbreite: 3.6mm Außentiefe: 4.2mm euEccn: NLR DC-Kontaktspannung, nom.: 5V Außenhöhe: 1.2mm Produktpalette: ESE13 Series productTraceability: No Kontaktkonfiguration: SPST-NO SVHC: No SVHC (25-Jun-2025) |
auf Bestellung 5484 Stücke: Lieferzeit 14-21 Tag (e) |
|||||||||||||||||||
 |
ESE13H01D | Hersteller : Panasonic |
Switch Detector N.O. SPST Lever Gull Wing 0.01A 5VDC SMD T/R |
auf Bestellung 5000 Stücke: Lieferzeit 14-21 Tag (e) |
