ESMC-M-12-SGS-SMT-C-PP-T/R

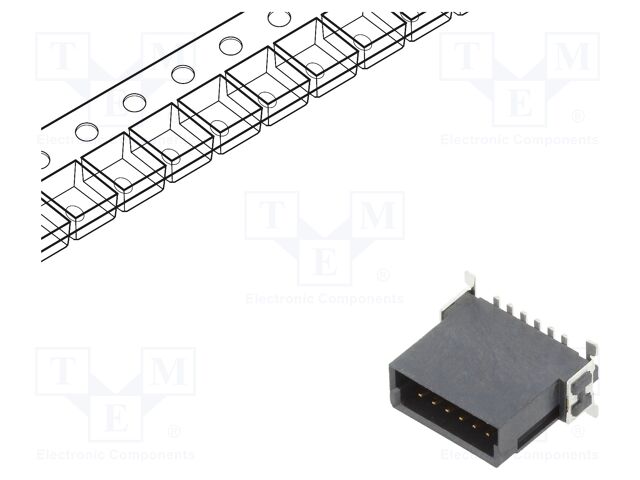

ESMC-M-12-SGS-SMT-C-PP-T/R ADAM TECH

esmc-m-xx-sgs-smt-x-pp-t-r-data-sheet.pdf Hersteller: ADAM TECH
Category: Board-to-board connectors
Description: Connector: PCB to PCB; socket; male; PIN: 12; vertical; 1.2A; SMT
Type of connector: PCB to PCB
Connector: socket
Kind of connector: male
Spatial orientation: vertical
Electrical mounting: SMT
Kind of package: reel
Quantity in set/package: 300pcs.
Operating temperature: -55...125°C
Enclosure material: thermoplastic
Current rating: 1.2A
Flammability rating: UL94V-0
Number of pins: 12
Connector variant: pick and place
Contacts pitch: 1.27mm
Anzahl je Verpackung: 1 Stücke
auf Bestellung 278 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl Preis
42+1.72 EUR
50+1.46 EUR
59+1.22 EUR
87+0.83 EUR
91+0.79 EUR
Mindestbestellmenge: 42
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details ESMC-M-12-SGS-SMT-C-PP-T/R ADAM TECH

Description: CONN HEADER VERT SMT 12POS 1.27M, Packaging: Tape & Reel (TR), Features: Board Guide, Pick and Place, Solder Retention, Connector Type: Header, Current Rating (Amps): 1.2A, Mounting Type: Surface Mount, Number of Positions: 12, Number of Rows: 2, Style: Board to Board, Operating Temperature: -55°C ~ 125°C, Contact Type: Male Pin, Fastening Type: Push-Pull, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Phosphor Bronze, Insulation Color: Black, Pitch - Mating: 0.050" (1.27mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: FLASH, Contact Finish - Post: Tin, Part Status: Active, Contact Shape: Square, Insulation Height: 0.388" (9.86mm), Shrouding: Shrouded - 4 Wall, Insulation Material: Thermoplastic, Row Spacing - Mating: 0.050" (1.27mm), Contact Length - Mating: 0.157" (4.00mm).
