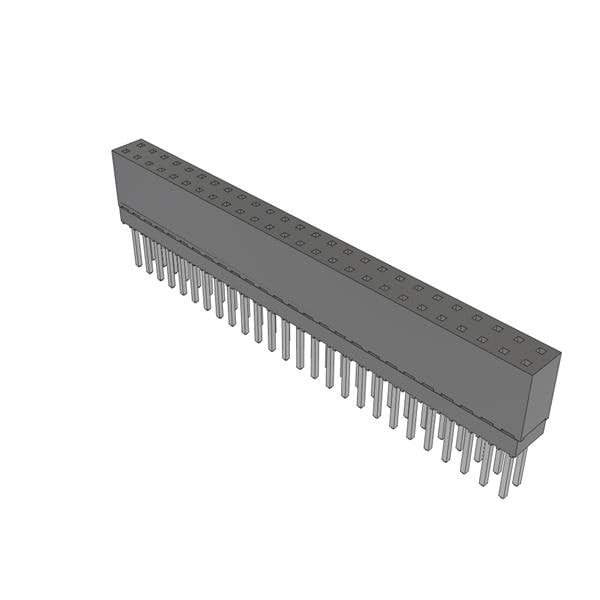

ESQ-126-13-L-D Samtec Inc.
Hersteller: Samtec Inc.
Description: CONN SOCKET 52POS 0.1 GOLD PCB
Termination: Solder
Number of Positions Loaded: All
Fastening Type: Push-Pull
Contact Type: Forked
Operating Temperature: -55°C ~ 125°C
Style: Board to Board
Number of Positions: 52
Mounting Type: Through Hole
Current Rating (Amps): 5.7A per Contact
Voltage Rating: 550VAC
Connector Type: Elevated Socket
Packaging: Tube
Number of Rows: 2
Row Spacing - Mating: 0.100" (2.54mm)
Insulation Height: 0.435" (11.05mm)
Contact Length - Post: 0.290" (7.37mm)
Part Status: Active
Contact Finish - Post: Tin
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Mating: Gold
Pitch - Mating: 0.100" (2.54mm)
Insulation Color: Black
Material Flammability Rating: UL94 V-0
| Anzahl | Preis |
|---|---|
| 2+ | 13.5 EUR |
| 10+ | 11.47 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details ESQ-126-13-L-D Samtec Inc.
Description: CONN SOCKET 52POS 0.1 GOLD PCB, Termination: Solder, Number of Positions Loaded: All, Fastening Type: Push-Pull, Contact Type: Forked, Operating Temperature: -55°C ~ 125°C, Style: Board to Board, Number of Positions: 52, Mounting Type: Through Hole, Current Rating (Amps): 5.7A per Contact, Voltage Rating: 550VAC, Connector Type: Elevated Socket, Packaging: Tube, Number of Rows: 2, Row Spacing - Mating: 0.100" (2.54mm), Insulation Height: 0.435" (11.05mm), Contact Length - Post: 0.290" (7.37mm), Part Status: Active, Contact Finish - Post: Tin, Contact Finish Thickness - Mating: 10.0µin (0.25µm), Contact Finish - Mating: Gold, Pitch - Mating: 0.100" (2.54mm), Insulation Color: Black, Material Flammability Rating: UL94 V-0.
Weitere Produktangebote ESQ-126-13-L-D nach Preis ab 9.68 EUR bis 13.76 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis |
||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
ESQ-126-13-L-D | Samtec |
PC/104 Connectors Elevated Socket Strip |
auf Bestellung 3 Stücke: Lieferzeit 10-14 Tag (e) |
|
| ESQ-126-13-L-D |
|
Hersteller: Samtec
PC/104 Connectors Elevated Socket Strip
PC/104 Connectors Elevated Socket Strip
auf Bestellung 3 Stücke:
Lieferzeit 10-14 Tag (e)| Anzahl | Preis |
|---|---|
| 1+ | 13.76 EUR |
| 24+ | 12.3 EUR |
| 56+ | 10.49 EUR |
| 104+ | 9.68 EUR |
