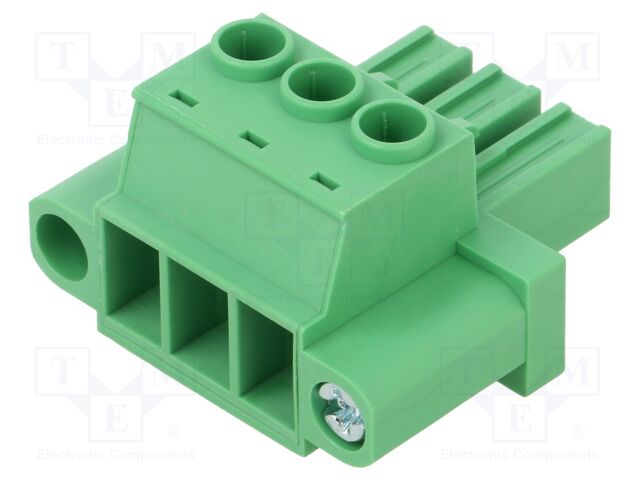

ET0301520000G AMPHENOL ANYTEK
Hersteller: AMPHENOL ANYTEK
Category: Pluggable terminal blocks
Description: Connector: pluggable terminal block; plug; female; 32A; 300V; 1x3
Colour: green
Operating temperature: -40...115°C
Mechanical mounting: for cable
Flammability rating: UL94V-0
Locking system: friction lock; threaded joint
Contact plating: tinned
Type of connector: pluggable terminal block
Connector: plug
Electrical mounting: screw terminal
Contacts pitch: 7.62mm
Number of pins: 3
Current rating: 32A
Rated voltage: 0.3kV
Connector pinout layout: 1x3
Spatial orientation: straight
Contact material: copper
Body material: thermoplastic
Kind of connector: female
| Anzahl | Privatkunde |
|---|---|
| 30+ | 2.84 EUR |
| 35+ | 2.45 EUR |
| 39+ | 2.21 EUR |
| 44+ | 1.94 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details ET0301520000G AMPHENOL ANYTEK
Category: Pluggable terminal blocks, Description: Connector: pluggable terminal block; plug; female; 32A; 300V; 1x3, Colour: green, Operating temperature: -40...115°C, Mechanical mounting: for cable, Flammability rating: UL94V-0, Locking system: friction lock; threaded joint, Contact plating: tinned, Type of connector: pluggable terminal block, Connector: plug, Electrical mounting: screw terminal, Contacts pitch: 7.62mm, Number of pins: 3, Current rating: 32A, Rated voltage: 0.3kV, Connector pinout layout: 1x3, Spatial orientation: straight, Contact material: copper, Body material: thermoplastic, Kind of connector: female.
Weitere Produktangebote ET0301520000G nach Preis ab 2.94 EUR bis 5.19 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
ET0301520000G | Amphenol Anytek |
Description: TERM BLOCK PLUG 3POS 7.62MM Features: Mating Flange, Retention Latches (Non-Wire Side) Packaging: Bulk Color: Green Mounting Type: Free Hanging (In-Line) Number of Positions: 3 Pitch: 0.300" (7.62mm) Type: Plug, Blade Sockets Operating Temperature: -40°C ~ 115°C Termination Style: Screw - Rising Cage Clamp Number of Levels: 1 Wire Gauge or Range - AWG: 8-24 AWG Wire Gauge or Range - mm²: 2.5-10mm² Positions Per Level: 3 Plug Wire Entry: 180° Contact Mating Finish: Tin Current - UL: 32 A Voltage - UL: 300 V |
auf Bestellung 92 Stücke: Lieferzeit 10-14 Tag (e) |
|
| ET0301520000G |
|
Hersteller: Amphenol Anytek
Description: TERM BLOCK PLUG 3POS 7.62MM
Features: Mating Flange, Retention Latches (Non-Wire Side)
Packaging: Bulk
Color: Green
Mounting Type: Free Hanging (In-Line)
Number of Positions: 3
Pitch: 0.300" (7.62mm)
Type: Plug, Blade Sockets
Operating Temperature: -40°C ~ 115°C
Termination Style: Screw - Rising Cage Clamp
Number of Levels: 1
Wire Gauge or Range - AWG: 8-24 AWG
Wire Gauge or Range - mm²: 2.5-10mm²
Positions Per Level: 3
Plug Wire Entry: 180°
Contact Mating Finish: Tin
Current - UL: 32 A
Voltage - UL: 300 V
Description: TERM BLOCK PLUG 3POS 7.62MM
Features: Mating Flange, Retention Latches (Non-Wire Side)
Packaging: Bulk
Color: Green
Mounting Type: Free Hanging (In-Line)
Number of Positions: 3
Pitch: 0.300" (7.62mm)
Type: Plug, Blade Sockets
Operating Temperature: -40°C ~ 115°C
Termination Style: Screw - Rising Cage Clamp
Number of Levels: 1
Wire Gauge or Range - AWG: 8-24 AWG
Wire Gauge or Range - mm²: 2.5-10mm²
Positions Per Level: 3
Plug Wire Entry: 180°
Contact Mating Finish: Tin
Current - UL: 32 A
Voltage - UL: 300 V
auf Bestellung 92 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 5+ | 5.19 EUR |
| 10+ | 3.71 EUR |
| 25+ | 3.25 EUR |
| 50+ | 2.94 EUR |
