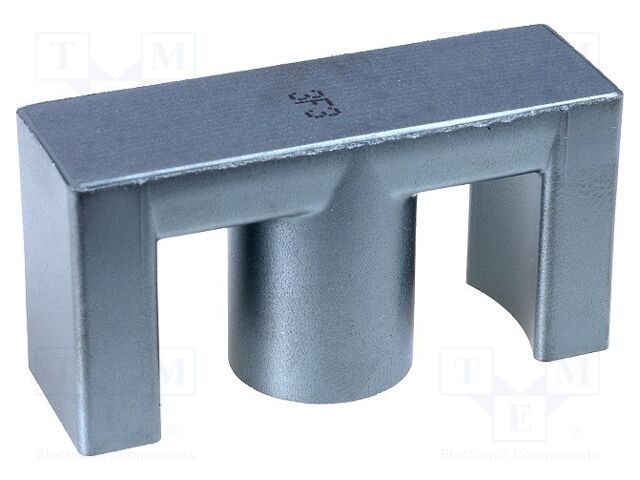

ETD49/25/16-3F3 FERROXCUBE
Hersteller: FERROXCUBECategory: Ferrite Cores
Description: Core: ferrite; ETD; 3F3; 3900nH; 24000mm3; 211mm2; A: 49.8mm
Version: ETD
Material: 3F3
B dimension: 24.7mm
Effective core volume (Ve): 24000mm3
Effective core cross-section (Ae): 211mm2
D dimension: 17.7mm
A dimension: 49.8mm
E dimension: 36.1mm
F dimension: 16.7mm
Type of core: ferrite
Inductance factor Al: 3900nH
C dimension: 16.7mm
Anzahl je Verpackung: 1 Stücke
auf Bestellung 118 Stücke:
Lieferzeit 7-14 Tag (e)
| Anzahl | Preis ohne MwSt |
|---|---|
| 12+ | 6.15 EUR |
| 30+ | 2.4 EUR |
| 32+ | 2.26 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details ETD49/25/16-3F3 FERROXCUBE
Description: Ferrite Misc, Tolerance: ±25%, Packaging: Bulk, Material: 3F3, Length: 1.961" (49.80mm), Width: 0.657" (16.70mm), Height: 0.972" (24.70mm), Core Type: ETD, Supplier Device Package: ETD 49 x 25 x 16, Inductance Factor (Al): 3.9 µH, Finish: Uncoated, Gap: Ungapped, Effective Permeability (µe): 1680, Core Factor (ΣI/A) mm⁻¹: 0.534, Effective Length (le) mm: 114, Effective Area (Ae) mm²: 211, Effective Magnetic Volume (Ve) mm³: 24000.
Weitere Produktangebote ETD49/25/16-3F3 nach Preis ab 2.26 EUR bis 6.15 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
ETD49/25/16-3F3 | Hersteller : FERROXCUBE |
Category: Ferrite Cores Description: Core: ferrite; ETD; 3F3; 3900nH; 24000mm3; 211mm2; A: 49.8mm Version: ETD Material: 3F3 B dimension: 24.7mm Effective core volume (Ve): 24000mm3 Effective core cross-section (Ae): 211mm2 D dimension: 17.7mm A dimension: 49.8mm E dimension: 36.1mm F dimension: 16.7mm Type of core: ferrite Inductance factor Al: 3900nH C dimension: 16.7mm |
auf Bestellung 118 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||
| ETD49/25/16-3F3 | Hersteller : Ferroxcube |
Description: Ferrite Misc Tolerance: ±25% Packaging: Bulk Material: 3F3 Length: 1.961" (49.80mm) Width: 0.657" (16.70mm) Height: 0.972" (24.70mm) Core Type: ETD Supplier Device Package: ETD 49 x 25 x 16 Inductance Factor (Al): 3.9 µH Finish: Uncoated Gap: Ungapped Effective Permeability (µe): 1680 Core Factor (ΣI/A) mm⁻¹: 0.534 Effective Length (le) mm: 114 Effective Area (Ae) mm²: 211 Effective Magnetic Volume (Ve) mm³: 24000 |
Produkt ist nicht verfügbar |
