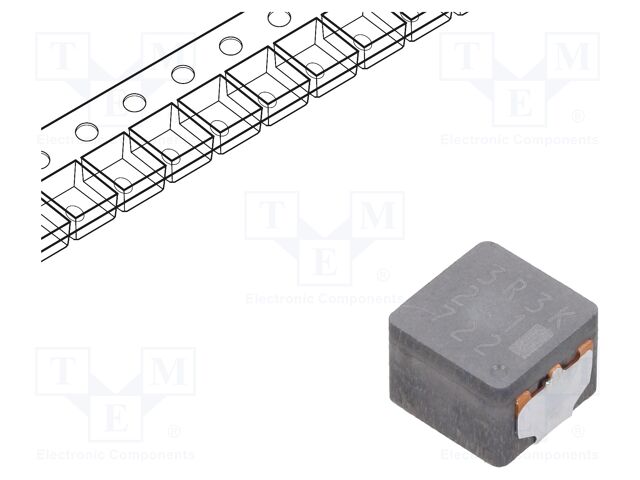

ETQ-P4M3R3KFN Panasonic Electronic Components
Hersteller: Panasonic Electronic Components
Description: FIXED IND 3.3UH 9.2A 14.41 MOHM
Current Rating (Amps): 9.2 A
Inductance: 3.3 µH
Height - Seated (Max): 0.189" (4.80mm)
Inductance Frequency - Test: 100 kHz
Material - Core: Metal Composite
Current - Saturation (Isat): 12A
Ratings: AEC-Q200
DC Resistance (DCR): 14.41mOhm Max
Operating Temperature: -40°C ~ 150°C
Type: Drum Core, Wirewound
Shielding: Shielded
Mounting Type: Surface Mount
Size / Dimension: 0.252" L x 0.236" W (6.40mm x 6.00mm)
Package / Case: 2-SMD, J-Lead
Tolerance: ±20%
Packaging: Tape & Reel (TR)
Produktrezensionen
Produktbewertung abgeben
Technische Details ETQ-P4M3R3KFN Panasonic Electronic Components
Description: FIXED IND 3.3UH 9.2A 14.41 MOHM, Current Rating (Amps): 9.2 A, Inductance: 3.3 µH, Height - Seated (Max): 0.189" (4.80mm), Inductance Frequency - Test: 100 kHz, Material - Core: Metal Composite, Current - Saturation (Isat): 12A, Ratings: AEC-Q200, DC Resistance (DCR): 14.41mOhm Max, Operating Temperature: -40°C ~ 150°C, Type: Drum Core, Wirewound, Shielding: Shielded, Mounting Type: Surface Mount, Size / Dimension: 0.252" L x 0.236" W (6.40mm x 6.00mm), Package / Case: 2-SMD, J-Lead, Tolerance: ±20%, Packaging: Tape & Reel (TR).
Weitere Produktangebote ETQ-P4M3R3KFN nach Preis ab 0.74 EUR bis 1.84 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
ETQP4M3R3KFN | PANASONIC |
Category: Inductors Description: Inductor: wire; SMD; 3.3uH; 9.2A; R: 14.41mΩ; ±20%; ETQP4M; -40÷150°C Type of inductor: wire Mounting: SMD Inductance: 3.3µH Operating current: 9.2A Resistance: 14.41mΩ Tolerance: ±20% Body dimensions: 4.8x6x6.4mm Operating temperature: -40...150°C Conform to the norm: AEC-Q200 Manufacturer series: ETQP4M |
auf Bestellung 75 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||||||
 |
ETQ-P4M3R3KFN | Panasonic |
Power Inductors - SMD 3.30uH 20% 6.4x6x4.8 SMD |
auf Bestellung 1651 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||
|
|
ETQ-P4M3R3KFN | Panasonic Electronic Components |
Description: FIXED IND 3.3UH 9.2A 14.41 MOHM Current Rating (Amps): 9.2 A Inductance: 3.3 µH Height - Seated (Max): 0.189" (4.80mm) Inductance Frequency - Test: 100 kHz Material - Core: Metal Composite Current - Saturation (Isat): 12A Ratings: AEC-Q200 DC Resistance (DCR): 14.41mOhm Max Operating Temperature: -40°C ~ 150°C Type: Drum Core, Wirewound Shielding: Shielded Mounting Type: Surface Mount Size / Dimension: 0.252" L x 0.236" W (6.40mm x 6.00mm) Package / Case: 2-SMD, J-Lead Tolerance: ±20% Packaging: Cut Tape (CT) |
auf Bestellung 2663 Stücke: Lieferzeit 10-14 Tag (e) |
|
| ETQP4M3R3KFN |
|
Hersteller: PANASONIC
Category: Inductors
Description: Inductor: wire; SMD; 3.3uH; 9.2A; R: 14.41mΩ; ±20%; ETQP4M; -40÷150°C
Type of inductor: wire
Mounting: SMD
Inductance: 3.3µH
Operating current: 9.2A
Resistance: 14.41mΩ
Tolerance: ±20%
Body dimensions: 4.8x6x6.4mm
Operating temperature: -40...150°C
Conform to the norm: AEC-Q200
Manufacturer series: ETQP4M
Category: Inductors
Description: Inductor: wire; SMD; 3.3uH; 9.2A; R: 14.41mΩ; ±20%; ETQP4M; -40÷150°C
Type of inductor: wire
Mounting: SMD
Inductance: 3.3µH
Operating current: 9.2A
Resistance: 14.41mΩ
Tolerance: ±20%
Body dimensions: 4.8x6x6.4mm
Operating temperature: -40...150°C
Conform to the norm: AEC-Q200
Manufacturer series: ETQP4M
auf Bestellung 75 Stücke:
Lieferzeit 14-21 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 70+ | 1.23 EUR |
| ETQ-P4M3R3KFN |
|
Hersteller: Panasonic
Power Inductors - SMD 3.30uH 20% 6.4x6x4.8 SMD
Power Inductors - SMD 3.30uH 20% 6.4x6x4.8 SMD
auf Bestellung 1651 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 2+ | 1.83 EUR |
| 10+ | 1.36 EUR |
| 100+ | 1.04 EUR |
| 500+ | 0.96 EUR |
| 1000+ | 0.82 EUR |
| 10000+ | 0.79 EUR |
| 25000+ | 0.74 EUR |
| ETQ-P4M3R3KFN |
|
Hersteller: Panasonic Electronic Components
Description: FIXED IND 3.3UH 9.2A 14.41 MOHM
Current Rating (Amps): 9.2 A
Inductance: 3.3 µH
Height - Seated (Max): 0.189" (4.80mm)
Inductance Frequency - Test: 100 kHz
Material - Core: Metal Composite
Current - Saturation (Isat): 12A
Ratings: AEC-Q200
DC Resistance (DCR): 14.41mOhm Max
Operating Temperature: -40°C ~ 150°C
Type: Drum Core, Wirewound
Shielding: Shielded
Mounting Type: Surface Mount
Size / Dimension: 0.252" L x 0.236" W (6.40mm x 6.00mm)
Package / Case: 2-SMD, J-Lead
Tolerance: ±20%
Packaging: Cut Tape (CT)
Description: FIXED IND 3.3UH 9.2A 14.41 MOHM
Current Rating (Amps): 9.2 A
Inductance: 3.3 µH
Height - Seated (Max): 0.189" (4.80mm)
Inductance Frequency - Test: 100 kHz
Material - Core: Metal Composite
Current - Saturation (Isat): 12A
Ratings: AEC-Q200
DC Resistance (DCR): 14.41mOhm Max
Operating Temperature: -40°C ~ 150°C
Type: Drum Core, Wirewound
Shielding: Shielded
Mounting Type: Surface Mount
Size / Dimension: 0.252" L x 0.236" W (6.40mm x 6.00mm)
Package / Case: 2-SMD, J-Lead
Tolerance: ±20%
Packaging: Cut Tape (CT)
auf Bestellung 2663 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 12+ | 1.84 EUR |
| 14+ | 1.57 EUR |
| 25+ | 1.43 EUR |
| 50+ | 1.33 EUR |
| 100+ | 1.11 EUR |
| 250+ | 1.02 EUR |
