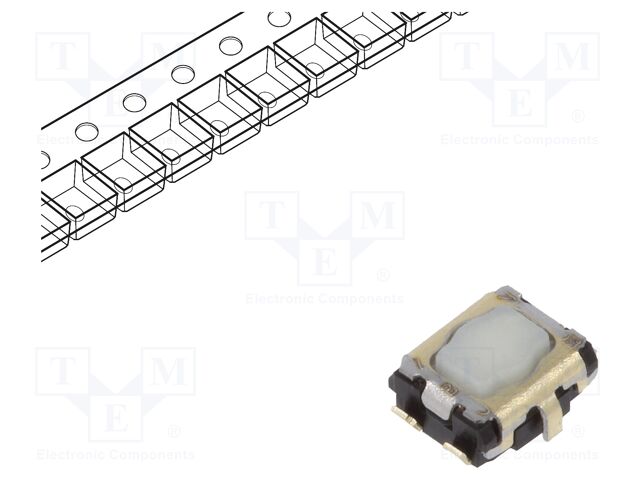

EVPAA502W PANASONIC

Category: Microswitches TACT
Description: Microswitch TACT; SPST; Pos: 2; SMT; none; 2.4N; 2.9x3.5x1.4mm
Type of switch: microswitch TACT
Number of positions: 2
Stable positions number: 1
Mounting: SMT
Illumination: none
Body dimensions: 2.9x3.5x1.4mm
Button height: 1.7mm
Switching method: (ON)-OFF
Operating temperature: -40...85°C
Leads: curved
Max. contact resistance:: 100mΩ
Contacts configuration: SPST
Operating Force: 2.4N
Actuator colour: white
Button shape: rectangular
Kind of package: reel
Manufacturer series: EVPAA
Mechanical durability: 200000 cycles
Min. insulation resistance: 0.1GΩ
Anzahl je Verpackung: 1 Stücke
auf Bestellung 7222 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl | Preis |
---|---|
103+ | 0.70 EUR |
182+ | 0.39 EUR |
192+ | 0.37 EUR |
50000+ | 0.36 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details EVPAA502W PANASONIC
Description: PANASONIC - EVPAA502W - Taster, leichte Berührung, EVPAA, Von oben zu betätigen, Oberflächenmontage, Rechteckige Taste, tariffCode: 85365007, Betätiger: Rechteckige Taste, rohsCompliant: YES, Schalteranschlüsse: Lötanschluss, Schalterabmessungen (L x B): 3.5mm x 2.9mm, hazardous: false, rohsPhthalatesCompliant: YES, Kontaktstrom, max.: 20mA, Betätigerausrichtung: Von oben zu betätigen, IP-Schutzart: -, usEccn: EAR99, Betätigungskraft: 2.4N, euEccn: NLR, DC-Kontaktspannung, nom.: 15V, Beleuchtung: Nicht beleuchtet, Schaltermontage: Oberflächenmontage, Produktpalette: EVPAA, Betätigungskraft: 240gf, productTraceability: No, Schaltleistung: 20mA bei 15V DC, SVHC: To Be Advised.
Weitere Produktangebote EVPAA502W nach Preis ab 0.37 EUR bis 1.44 EUR
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis | ||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
EVPAA502W | Hersteller : PANASONIC |
![]() Description: Microswitch TACT; SPST; Pos: 2; SMT; none; 2.4N; 2.9x3.5x1.4mm Type of switch: microswitch TACT Number of positions: 2 Stable positions number: 1 Mounting: SMT Illumination: none Body dimensions: 2.9x3.5x1.4mm Button height: 1.7mm Switching method: (ON)-OFF Operating temperature: -40...85°C Leads: curved Max. contact resistance:: 100mΩ Contacts configuration: SPST Operating Force: 2.4N Actuator colour: white Button shape: rectangular Kind of package: reel Manufacturer series: EVPAA Mechanical durability: 200000 cycles Min. insulation resistance: 0.1GΩ |
auf Bestellung 7222 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||||||||||
|
EVP-AA502W | Hersteller : Panasonic Electronic Components |
![]() Packaging: Tape & Reel (TR) Features: Grounding Pin Mounting Type: Surface Mount Circuit: SPST-NO Switch Function: Off-Mom Operating Temperature: -40°C ~ 85°C Termination Style: J Lead Illumination: Non-Illuminated Contact Rating @ Voltage: 0.02A @ 15VDC Actuator Type: Rectangular Button Operating Force: 240gf Outline: 3.50mm x 2.90mm Actuator Height off PCB, Vertical: 1.70mm Actuator Orientation: Top Actuated Part Status: Active |
auf Bestellung 10000 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||||||
![]() |
EVP-AA502W | Hersteller : Panasonic |
![]() |
auf Bestellung 3872 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||||||
![]() |
EVP-AA502W | Hersteller : Panasonic |
![]() |
auf Bestellung 35000 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||||||||||
|
EVP-AA502W | Hersteller : Panasonic Electronic Components |
![]() Packaging: Cut Tape (CT) Features: Grounding Pin Mounting Type: Surface Mount Circuit: SPST-NO Switch Function: Off-Mom Operating Temperature: -40°C ~ 85°C Termination Style: J Lead Illumination: Non-Illuminated Contact Rating @ Voltage: 0.02A @ 15VDC Actuator Type: Rectangular Button Operating Force: 240gf Outline: 3.50mm x 2.90mm Actuator Height off PCB, Vertical: 1.70mm Actuator Orientation: Top Actuated Part Status: Active |
auf Bestellung 11231 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||||||
![]() |
EVPAA502W | Hersteller : PANASONIC |
![]() tariffCode: 85365007 Betätiger: Rechteckige Taste rohsCompliant: YES Schalteranschlüsse: Lötanschluss Schalterabmessungen (L x B): 3.5mm x 2.9mm hazardous: false rohsPhthalatesCompliant: YES Kontaktstrom, max.: 20mA Betätigerausrichtung: Von oben zu betätigen IP-Schutzart: - usEccn: EAR99 Betätigungskraft: 2.4N euEccn: NLR DC-Kontaktspannung, nom.: 15V Beleuchtung: Nicht beleuchtet Schaltermontage: Oberflächenmontage Produktpalette: EVPAA Betätigungskraft: 240gf productTraceability: No Schaltleistung: 20mA bei 15V DC SVHC: To Be Advised |
auf Bestellung 4634 Stücke: Lieferzeit 14-21 Tag (e) |
|||||||||||||||||||
![]() |
EVPAA502W | Hersteller : PANASONIC |
![]() tariffCode: 85365007 Betätiger: Rechteckige Taste rohsCompliant: YES Schalterabmessungen (L x B): 3.5mm x 2.9mm hazardous: false rohsPhthalatesCompliant: YES Betätigerausrichtung: Von oben zu betätigen IP-Schutzart: - usEccn: EAR99 euEccn: NLR Beleuchtung: Nicht beleuchtet Schaltermontage: Oberflächenmontage Produktpalette: EVPAA Betätigungskraft: 240gf productTraceability: No Schaltleistung: 20mA bei 15V DC SVHC: To Be Advised |
auf Bestellung 4634 Stücke: Lieferzeit 14-21 Tag (e) |
|||||||||||||||||||
![]() |
EVPAA502W | Hersteller : Panasonic |
![]() |
Produkt ist nicht verfügbar |
|||||||||||||||||||
![]() |
EVP-AA502W | Hersteller : Panasonic |
![]() |
Produkt ist nicht verfügbar |
