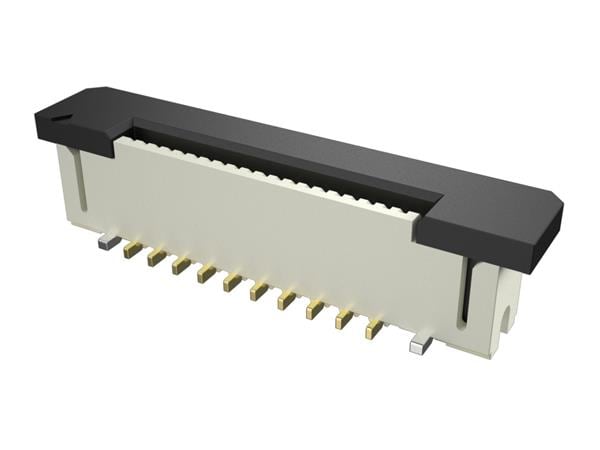

F31W-1A7H1-11020 Amphenol ICC (FCI)
Hersteller: Amphenol ICC (FCI)
Description: CONN FFC VERT 20POS 0.5MM SMD
Part Status: Active
Connector/Contact Type: Contacts, Vertical - 1 Sided
Flat Flex Type: FFC, FPC
Cable End Type: Notched
Housing Material: Liquid Crystal Polymer (LCP), Glass Filled
FFC, FCB Thickness: 0.33mm
Contact Material: Phosphor Bronze
Actuator Material: Polyamide (PA9T), Nylon 9T, Glass Filled, Halogen Free
Material Flammability Rating: UL94 V-0
Locking Feature: Slide Lock
Height Above Board: 0.167" (4.25mm)
Termination: Solder
Operating Temperature: -40°C ~ 105°C
Pitch: 0.020" (0.50mm)
Number of Positions: 20
Mounting Type: Surface Mount
Voltage Rating: 50V
Contact Finish: Gold
Features: Solder Retention, Zero Insertion Force (ZIF)
Packaging: Tape & Reel (TR)
Produktrezensionen
Produktbewertung abgeben
Technische Details F31W-1A7H1-11020 Amphenol ICC (FCI)
Description: CONN FFC VERT 20POS 0.5MM SMD, Part Status: Active, Connector/Contact Type: Contacts, Vertical - 1 Sided, Flat Flex Type: FFC, FPC, Cable End Type: Notched, Housing Material: Liquid Crystal Polymer (LCP), Glass Filled, FFC, FCB Thickness: 0.33mm, Contact Material: Phosphor Bronze, Actuator Material: Polyamide (PA9T), Nylon 9T, Glass Filled, Halogen Free, Material Flammability Rating: UL94 V-0, Locking Feature: Slide Lock, Height Above Board: 0.167" (4.25mm), Termination: Solder, Operating Temperature: -40°C ~ 105°C, Pitch: 0.020" (0.50mm), Number of Positions: 20, Mounting Type: Surface Mount, Voltage Rating: 50V, Contact Finish: Gold, Features: Solder Retention, Zero Insertion Force (ZIF), Packaging: Tape & Reel (TR).
Weitere Produktangebote F31W-1A7H1-11020 nach Preis ab 0.87 EUR bis 1.48 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Preis |
||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
F31W-1A7H1-11020 | Amphenol ICC (FCI) |
Description: CONN FFC VERT 20POS 0.5MM SMD Features: Solder Retention, Zero Insertion Force (ZIF) Packaging: Cut Tape (CT) Contact Finish: Gold Voltage Rating: 50V Mounting Type: Surface Mount Number of Positions: 20 Pitch: 0.020" (0.50mm) Operating Temperature: -40°C ~ 105°C Termination: Solder Height Above Board: 0.167" (4.25mm) Locking Feature: Slide Lock Material Flammability Rating: UL94 V-0 Actuator Material: Polyamide (PA9T), Nylon 9T, Glass Filled, Halogen Free Contact Material: Phosphor Bronze FFC, FCB Thickness: 0.33mm Housing Material: Liquid Crystal Polymer (LCP), Glass Filled Cable End Type: Notched Flat Flex Type: FFC, FPC Connector/Contact Type: Contacts, Vertical - 1 Sided Part Status: Active |
auf Bestellung 1930 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||
 |
F31W-1A7H1-11020 | Amphenol Aorora |
FFC & FPC Connectors FPCP0.5 V/T SMT ATYPE20P-F31W-1A7H1-11020 |
auf Bestellung 7961 Stücke: Lieferzeit 10-14 Tag (e) |
|
| F31W-1A7H1-11020 |
|
Hersteller: Amphenol ICC (FCI)
Description: CONN FFC VERT 20POS 0.5MM SMD
Features: Solder Retention, Zero Insertion Force (ZIF)
Packaging: Cut Tape (CT)
Contact Finish: Gold
Voltage Rating: 50V
Mounting Type: Surface Mount
Number of Positions: 20
Pitch: 0.020" (0.50mm)
Operating Temperature: -40°C ~ 105°C
Termination: Solder
Height Above Board: 0.167" (4.25mm)
Locking Feature: Slide Lock
Material Flammability Rating: UL94 V-0
Actuator Material: Polyamide (PA9T), Nylon 9T, Glass Filled, Halogen Free
Contact Material: Phosphor Bronze
FFC, FCB Thickness: 0.33mm
Housing Material: Liquid Crystal Polymer (LCP), Glass Filled
Cable End Type: Notched
Flat Flex Type: FFC, FPC
Connector/Contact Type: Contacts, Vertical - 1 Sided
Part Status: Active
Description: CONN FFC VERT 20POS 0.5MM SMD
Features: Solder Retention, Zero Insertion Force (ZIF)
Packaging: Cut Tape (CT)
Contact Finish: Gold
Voltage Rating: 50V
Mounting Type: Surface Mount
Number of Positions: 20
Pitch: 0.020" (0.50mm)
Operating Temperature: -40°C ~ 105°C
Termination: Solder
Height Above Board: 0.167" (4.25mm)
Locking Feature: Slide Lock
Material Flammability Rating: UL94 V-0
Actuator Material: Polyamide (PA9T), Nylon 9T, Glass Filled, Halogen Free
Contact Material: Phosphor Bronze
FFC, FCB Thickness: 0.33mm
Housing Material: Liquid Crystal Polymer (LCP), Glass Filled
Cable End Type: Notched
Flat Flex Type: FFC, FPC
Connector/Contact Type: Contacts, Vertical - 1 Sided
Part Status: Active
auf Bestellung 1930 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 13+ | 1.36 EUR |
| 16+ | 1.15 EUR |
| 25+ | 1.08 EUR |
| 50+ | 1.02 EUR |
| 100+ | 0.98 EUR |
| 250+ | 0.91 EUR |
| 500+ | 0.87 EUR |
| F31W-1A7H1-11020 |
|
Hersteller: Amphenol Aorora
FFC & FPC Connectors FPCP0.5 V/T SMT ATYPE20P-F31W-1A7H1-11020
FFC & FPC Connectors FPCP0.5 V/T SMT ATYPE20P-F31W-1A7H1-11020
auf Bestellung 7961 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 2+ | 1.48 EUR |
| 10+ | 1.26 EUR |
| 25+ | 1.13 EUR |
| 100+ | 1.07 EUR |
| 250+ | 1.01 EUR |
| 500+ | 0.96 EUR |
| 1200+ | 0.89 EUR |
