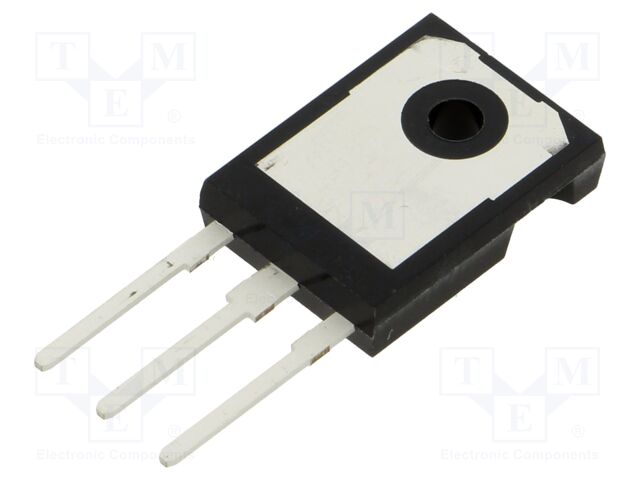

FCH47N60F-F133 ONSEMI
Hersteller: ONSEMI
Category: THT N channel transistors
Description: Transistor: N-MOSFET; unipolar; 600V; 47A; Idm: 141A; 417W; TO247-3
Type of transistor: N-MOSFET
Polarisation: unipolar
Drain-source voltage: 600V
Drain current: 47A
Power dissipation: 417W
Case: TO247-3
Gate-source voltage: ±30V
On-state resistance: 73mΩ
Mounting: THT
Kind of package: tube
Kind of channel: enhancement
Gate charge: 0.21µC
Pulsed drain current: 141A
| Anzahl | Preis |
|---|---|
| 6+ | 13.2 EUR |
| 10+ | 11.68 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details FCH47N60F-F133 ONSEMI
Description: MOSFET N-CH 600V 47A TO247-3, Packaging: Tube, Package / Case: TO-247-3, Mounting Type: Through Hole, Operating Temperature: -55°C ~ 150°C (TJ), Technology: MOSFET (Metal Oxide), FET Type: N-Channel, Current - Continuous Drain (Id) @ 25°C: 47A (Tc), Rds On (Max) @ Id, Vgs: 70mOhm @ 23.5A, 10V, Power Dissipation (Max): 417W (Tc), Vgs(th) (Max) @ Id: 5V @ 250µA, Supplier Device Package: TO-247-3, Part Status: Not For New Designs, Drive Voltage (Max Rds On, Min Rds On): 10V, Vgs (Max): ±30V, Drain to Source Voltage (Vdss): 600 V, Gate Charge (Qg) (Max) @ Vgs: 270 nC @ 10 V, Input Capacitance (Ciss) (Max) @ Vds: 8000 pF @ 25 V.
Weitere Produktangebote FCH47N60F-F133 nach Preis ab 11.14 EUR bis 21.51 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis |
||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
FCH47N60F-F133 | onsemi |
Description: MOSFET N-CH 600V 47A TO247-3 Packaging: Tube Package / Case: TO-247-3 Mounting Type: Through Hole Operating Temperature: -55°C ~ 150°C (TJ) Technology: MOSFET (Metal Oxide) FET Type: N-Channel Current - Continuous Drain (Id) @ 25°C: 47A (Tc) Rds On (Max) @ Id, Vgs: 70mOhm @ 23.5A, 10V Power Dissipation (Max): 417W (Tc) Vgs(th) (Max) @ Id: 5V @ 250µA Supplier Device Package: TO-247-3 Part Status: Not For New Designs Drive Voltage (Max Rds On, Min Rds On): 10V Vgs (Max): ±30V Drain to Source Voltage (Vdss): 600 V Gate Charge (Qg) (Max) @ Vgs: 270 nC @ 10 V Input Capacitance (Ciss) (Max) @ Vds: 8000 pF @ 25 V |
auf Bestellung 256 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||
 |
FCH47N60F-F133 | onsemi |
MOSFETs 600V N-Channel MOSFET |
auf Bestellung 414 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||
| FCH47N60F_F133 | FCS | 10+ T0-247 |
auf Bestellung 1000 Stücke: Lieferzeit 21-28 Tag (e) |
Im Einkaufswagen Stück im Wert von UAH | |||||||
| FCH47N60F-F133 | ON Semiconductor |
|
auf Bestellung 905 Stücke: Lieferzeit 21-28 Tag (e) |
Im Einkaufswagen Stück im Wert von UAH |
| FCH47N60F-F133 |
|
Hersteller: onsemi
Description: MOSFET N-CH 600V 47A TO247-3
Packaging: Tube
Package / Case: TO-247-3
Mounting Type: Through Hole
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 47A (Tc)
Rds On (Max) @ Id, Vgs: 70mOhm @ 23.5A, 10V
Power Dissipation (Max): 417W (Tc)
Vgs(th) (Max) @ Id: 5V @ 250µA
Supplier Device Package: TO-247-3
Part Status: Not For New Designs
Drive Voltage (Max Rds On, Min Rds On): 10V
Vgs (Max): ±30V
Drain to Source Voltage (Vdss): 600 V
Gate Charge (Qg) (Max) @ Vgs: 270 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 8000 pF @ 25 V
Description: MOSFET N-CH 600V 47A TO247-3
Packaging: Tube
Package / Case: TO-247-3
Mounting Type: Through Hole
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 47A (Tc)
Rds On (Max) @ Id, Vgs: 70mOhm @ 23.5A, 10V
Power Dissipation (Max): 417W (Tc)
Vgs(th) (Max) @ Id: 5V @ 250µA
Supplier Device Package: TO-247-3
Part Status: Not For New Designs
Drive Voltage (Max Rds On, Min Rds On): 10V
Vgs (Max): ±30V
Drain to Source Voltage (Vdss): 600 V
Gate Charge (Qg) (Max) @ Vgs: 270 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 8000 pF @ 25 V
auf Bestellung 256 Stücke:
Lieferzeit 10-14 Tag (e)| Anzahl | Preis |
|---|---|
| 1+ | 21.26 EUR |
| 30+ | 12.96 EUR |
| 120+ | 11.14 EUR |
| FCH47N60F-F133 |
|
Hersteller: onsemi
MOSFETs 600V N-Channel MOSFET
MOSFETs 600V N-Channel MOSFET
auf Bestellung 414 Stücke:
Lieferzeit 10-14 Tag (e)| Anzahl | Preis |
|---|---|
| 1+ | 21.51 EUR |
| 10+ | 13.13 EUR |
| 120+ | 12.76 EUR |
| FCH47N60F_F133 |
Hersteller: FCS
10+ T0-247
10+ T0-247
auf Bestellung 1000 Stücke:
Lieferzeit 21-28 Tag (e)Im Einkaufswagen Stück im Wert von UAH
| FCH47N60F-F133 |
|
Hersteller: ON Semiconductor
auf Bestellung 905 Stücke:
Lieferzeit 21-28 Tag (e)Im Einkaufswagen Stück im Wert von UAH
