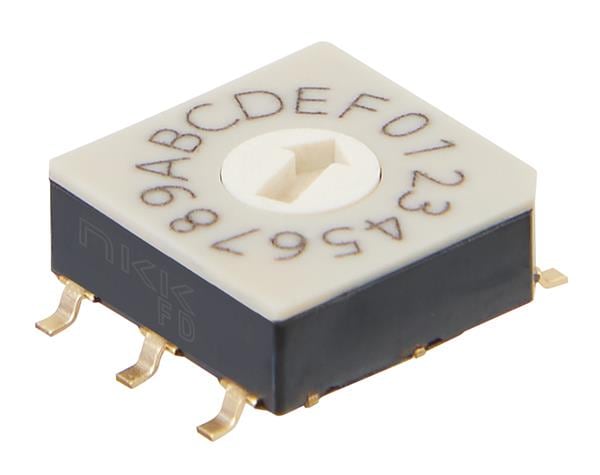

FD02FC16P-R NKK Switches
Hersteller: NKK SwitchesDescription: SW ROTARY DIP HEX COMP 100MA 5V
Packaging: Tape & Reel (TR)
Contact Finish: Gold
Voltage Rating: 20VAC/DC
Current Rating (Amps): 0.4VA
Mounting Type: Surface Mount
Circuit: Hexadecimal Complement
Operating Temperature: -25°C ~ 85°C
Termination Style: Gull Wing
Actuator Type: Rotary for Tool
Actuator Level: Flush
Washable: No
Contact Material: Brass
Number of Positions: 16
auf Bestellung 3000 Stücke:
Lieferzeit 10-14 Tag (e)
Produktrezensionen
Produktbewertung abgeben
Technische Details FD02FC16P-R NKK Switches
Category: Encoding Switches, Description: Encoding switch; HEX/BCD; Pos: 16; SMT; Rcont max: 100mΩ; PPS; reel, Type of switch: encoding switch, Leads: Gull Wing, Contact plating: gold-plated, Kind of encoding switch: HEX/BCD, Body material: PPS, Kind of package: reel, Mounting: SMT, Operating temperature: -25...85°C, Terminal pitch: 2.54mm, Body dimensions: 7.2x7.2x3.1mm, AC contacts rating @R: 20mA / 20V AC, DC contacts rating @R: 20mA / 20V DC, Max. contact resistance:: 100mΩ, Stable positions number: 16, Number of positions: 16, Electrical life: 10000 cycles, Mechanical durability: 10000 cycles, Min. insulation resistance: 1GΩ, Output code: complementary code, Contact material: copper alloy.
Weitere Produktangebote FD02FC16P-R
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis |
|---|---|---|---|---|---|
|
|
FD02FC16P-R | Hersteller : NKK Switches |
Description: SW ROTARY DIP HEX COMP 100MA 5V Packaging: Cut Tape (CT) Contact Finish: Gold Voltage Rating: 20VAC/DC Current Rating (Amps): 0.4VA Mounting Type: Surface Mount Circuit: Hexadecimal Complement Operating Temperature: -25°C ~ 85°C Termination Style: Gull Wing Actuator Type: Rotary for Tool Actuator Level: Flush Washable: No Contact Material: Brass Number of Positions: 16 |
auf Bestellung 3000 Stücke: Lieferzeit 10-14 Tag (e) |
|
 |
FD02FC16P-R | Hersteller : NKK Switches |
DIP Switches/SIP Switches SWITCH ROTARY |
Produkt ist nicht verfügbar |
|
| FD02FC16P-R | Hersteller : NKK SWITCHES |
Category: Encoding Switches Description: Encoding switch; HEX/BCD; Pos: 16; SMT; Rcont max: 100mΩ; PPS; reel Type of switch: encoding switch Leads: Gull Wing Contact plating: gold-plated Kind of encoding switch: HEX/BCD Body material: PPS Kind of package: reel Mounting: SMT Operating temperature: -25...85°C Terminal pitch: 2.54mm Body dimensions: 7.2x7.2x3.1mm AC contacts rating @R: 20mA / 20V AC DC contacts rating @R: 20mA / 20V DC Max. contact resistance:: 100mΩ Stable positions number: 16 Number of positions: 16 Electrical life: 10000 cycles Mechanical durability: 10000 cycles Min. insulation resistance: 1GΩ Output code: complementary code Contact material: copper alloy |
Produkt ist nicht verfügbar |
