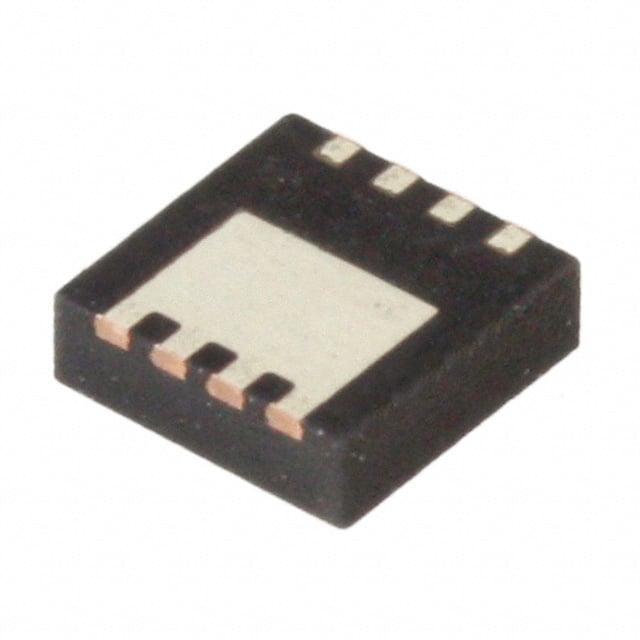

FDMC7692

Hersteller: onsemi
Description: MOSFET N-CH 30V 13.3A/16A 8MLP
Input Capacitance (Ciss) (Max) @ Vds: 1680 pF @ 15 V
Gate Charge (Qg) (Max) @ Vgs: 29 nC @ 10 V
Drain to Source Voltage (Vdss): 30 V
Vgs (Max): ±20V
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Supplier Device Package: 8-MLP (3.3x3.3)
Vgs(th) (Max) @ Id: 3V @ 250µA
Power Dissipation (Max): 2.3W (Ta), 29W (Tc)
Rds On (Max) @ Id, Vgs: 8.5mOhm @ 13.3A, 10V
Current - Continuous Drain (Id) @ 25°C: 13.3A (Ta), 16A (Tc)
FET Type: N-Channel
Technology: MOSFET (Metal Oxide)
Operating Temperature: -55°C ~ 150°C (TJ)
Mounting Type: Surface Mount
Package / Case: 8-PowerWDFN
Packaging: Tape & Reel (TR)

Hersteller: ONSEMI
Category: SMD N channel transistors
Description: Transistor: N-MOSFET; unipolar; 30V; 16A; Idm: 40A; 29W; WDFN8
Type of transistor: N-MOSFET
Polarisation: unipolar
Drain-source voltage: 30V
Drain current: 16A
Power dissipation: 29W
Case: WDFN8
Gate-source voltage: ±20V
On-state resistance: 12mΩ
Mounting: SMD
Gate charge: 29nC
Kind of package: reel; tape
Kind of channel: enhancement
Pulsed drain current: 40A

Hersteller: onsemi
Description: MOSFET N-CH 30V 13.3A/16A 8MLP
Packaging: Cut Tape (CT)
Package / Case: 8-PowerWDFN
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 13.3A (Ta), 16A (Tc)
Rds On (Max) @ Id, Vgs: 8.5mOhm @ 13.3A, 10V
Power Dissipation (Max): 2.3W (Ta), 29W (Tc)
Vgs(th) (Max) @ Id: 3V @ 250µA
Supplier Device Package: 8-MLP (3.3x3.3)
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 30 V
Gate Charge (Qg) (Max) @ Vgs: 29 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 1680 pF @ 15 V

Hersteller: onsemi / Fairchild
MOSFETs N-Chan, 30/20V PowerTrench

Hersteller: onsemi
MOSFETs N-Chan, 30/20V PowerTrench

Hersteller: ONSEMI
Description: ONSEMI - FDMC7692 - Leistungs-MOSFET, n-Kanal, 30 V, 16 A, 7200 µohm, MLP, Oberflächenmontage
tariffCode: 85412900
Transistormontage: Oberflächenmontage
Drain-Source-Spannung Vds: 30V
rohsCompliant: YES
Dauer-Drainstrom Id: 16A
hazardous: false
rohsPhthalatesCompliant: YES
Qualifikation: -
isCanonical: Y
MSL: MSL 1 - unbegrenzt
usEccn: EAR99
Gate-Source-Schwellenspannung, max.: 1.9V
euEccn: NLR
Verlustleistung: 29W
Bauform - Transistor: MLP
Anzahl der Pins: 8Pin(s)
Produktpalette: -
productTraceability: Yes-Date/Lot Code
Kanaltyp: n-Kanal
Rds(on)-Prüfspannung: 10V
Betriebstemperatur, max.: 150°C
Drain-Source-Durchgangswiderstand: 7200µohm
SVHC: No SVHC (25-Jun-2025)

Hersteller: ON Semiconductor / Fairchild
MOSFET N-Chan, 30/20V PowerTrench

Hersteller: ON Semiconductor
