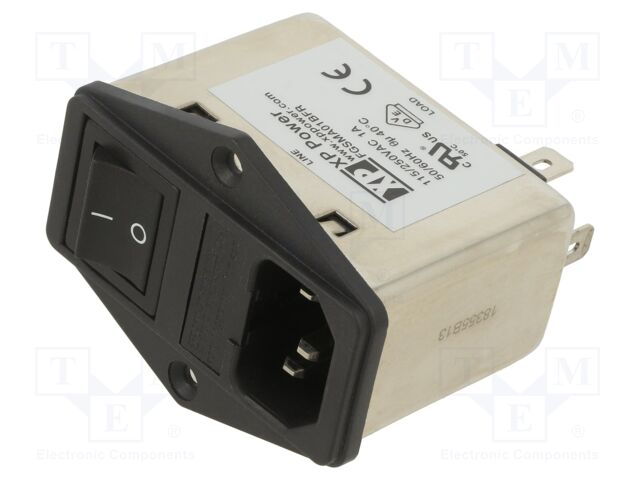

FGSMA01BFR

FGSMA01BFR XP POWER


pVersion=0046&contRep=ZT&docId=005056AB281E1EDCA19E9CEE69F9A0CE&compId=FGSMA01BFR.pdf?ci_sign=b03ad8750f1585640b9c2ca40d40e058065ca8a3 Hersteller: XP POWER
Category: IEC 60320 connectors
Description: Connector: AC supply; socket; male; Inom: 1A; Ir: 2÷5uA; 250VAC; 1MΩ
Operating temperature: -40...110°C
Resistance: 1MΩ
Leads dimensions: 6.3x0.8mm
Mounting holes pitch: 40mm
Current rating: 1A
Leads: connectors
Leakage current: 2...5µA
Connector variant: C14 (E)
Inductance: 6.5mH
Capacitance Cx: 0.1µF
Electrical mounting: 6.3x0,8mm connectors
Mechanical mounting: flange (2 holes); for panel mounting; screw
Standard: IEC 60320
Design: filter; fuse x1; on/off switch
Type of connector: AC supply
Connector: socket
Kind of connector: male
Rated voltage: 250V AC
Anzahl je Verpackung: 1 Stücke
auf Bestellung 15 Stücke:

Lieferzeit 7-14 Tag (e)
Anzahl Preis
2+38.28 EUR
5+38.27 EUR
15+36.81 EUR
Mindestbestellmenge: 2
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details FGSMA01BFR XP POWER

Category: IEC 60320 connectors, Description: Connector: AC supply; socket; male; Inom: 1A; Ir: 2÷5uA; 250VAC; 1MΩ, Operating temperature: -40...110°C, Resistance: 1MΩ, Leads dimensions: 6.3x0.8mm, Mounting holes pitch: 40mm, Current rating: 1A, Leads: connectors, Leakage current: 2...5µA, Connector variant: C14 (E), Inductance: 6.5mH, Capacitance Cx: 0.1µF, Electrical mounting: 6.3x0,8mm connectors, Mechanical mounting: flange (2 holes); for panel mounting; screw, Standard: IEC 60320, Design: filter; fuse x1; on/off switch, Type of connector: AC supply, Connector: socket, Kind of connector: male, Rated voltage: 250V AC, Anzahl je Verpackung: 1 Stücke.
