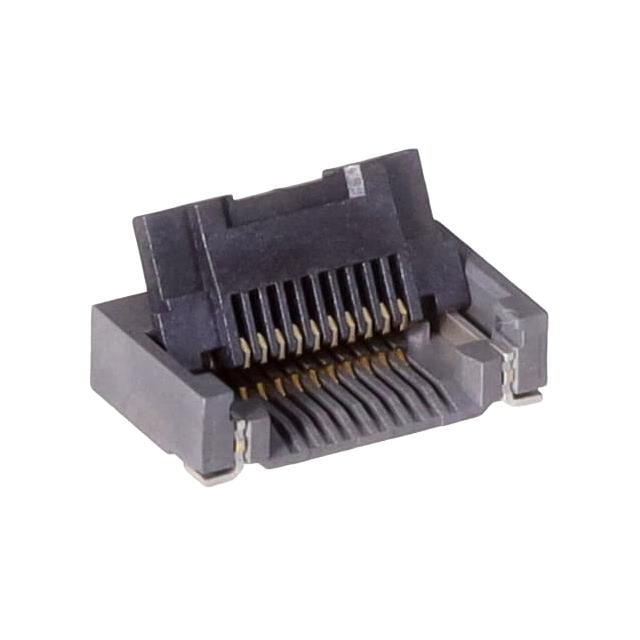

FH28K-10S-0.5SH(98) HIROSE
Hersteller: HIROSE
Category: Connectors FFC/FPC 0.5mm
Description: Connector: FFC/FPC; gold-plated; SMT; 500mA; 50V; FH28K; PIN: 10
Type of connector: FFC/FPC
Electrical mounting: SMT
Number of pins: 10
Tape pitch: 0.5mm
Spatial orientation: horizontal
Connector variant: bottom contacts; ZIF
Operating temperature: -40...125°C
Current rating: 0.5A
Rated voltage: 50V
Contact material: phosphor bronze
Manufacturer series: FH28K
Locking system: FlipLock
Contact plating: gold-plated
Body material: LCP
Flammability rating: UL94V-0
| Anzahl | Privatkunde |
|---|---|
| 48+ | 1.81 EUR |
| 59+ | 1.46 EUR |
| 64+ | 1.34 EUR |
| 67+ | 1.27 EUR |
| 100+ | 1.21 EUR |
| 500+ | 1.11 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details FH28K-10S-0.5SH(98) HIROSE
Description: RECEPTACLE, 0.5MM PITCH, 9.58MM, Features: Solder Retention, Packaging: Tape & Reel (TR), Contact Finish: Gold, Voltage Rating: 50V, Mounting Type: Surface Mount, Right Angle, Number of Positions: 10, Pitch: 0.020" (0.50mm), Operating Temperature: -40°C ~ 125°C, Termination: Solder, Height Above Board: 0.100" (2.54mm), Locking Feature: Flip Lock, Material Flammability Rating: UL94 V-0, Actuator Material: Liquid Crystal Polymer (LCP), Contact Material: Copper Alloy, FFC, FCB Thickness: 0.30mm, Housing Material: Liquid Crystal Polymer (LCP), Cable End Type: Tabbed, Flat Flex Type: FFC, FPC, Connector/Contact Type: Contacts, Bottom.
Weitere Produktangebote FH28K-10S-0.5SH(98) nach Preis ab 1.65 EUR bis 4.65 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
FH28K-10S-0.5SH(98) | Hirose Electric Co Ltd |
Description: RECEPTACLE, 0.5MM PITCH, 9.58MM Features: Solder Retention Packaging: Cut Tape (CT) Contact Finish: Gold Voltage Rating: 50V Mounting Type: Surface Mount, Right Angle Number of Positions: 10 Pitch: 0.020" (0.50mm) Operating Temperature: -40°C ~ 125°C Termination: Solder Height Above Board: 0.100" (2.54mm) Locking Feature: Flip Lock Material Flammability Rating: UL94 V-0 Actuator Material: Liquid Crystal Polymer (LCP) Contact Material: Copper Alloy FFC, FCB Thickness: 0.30mm Housing Material: Liquid Crystal Polymer (LCP) Cable End Type: Tabbed Flat Flex Type: FFC, FPC Connector/Contact Type: Contacts, Bottom |
auf Bestellung 393 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||
 |
FH28K-10S-0.5SH(98) | HIROSE / HRS |
Description: HIROSE / HRS - FH28K-10S-0.5SH(98) - FFC/FPC-Leiterplattensteckverbinder, 0.5 mm, 10 Kontakt(e), Buchse, FH28K Series tariffCode: 85366930 rohsCompliant: YES FFC/FPC-Dicke: 0.3mm Kontaktüberzug: Vergoldete Kontakte hazardous: false rohsPhthalatesCompliant: TBA Kontaktmaterial: Kupferlegierung Ausführung: Buchse usEccn: EAR99 Anzahl der Kontakte: 10Kontakt(e) euEccn: NLR Kontaktposition: Unten Produktpalette: FH28K Series productTraceability: No Kontaktanschluss: Oberflächenmontage, abgewinkelt Anzahl der Reihen: 1 Reihe Rastermaß: 0.5mm SVHC: To Be Advised |
auf Bestellung 480 Stücke: Lieferzeit 14-21 Tag (e) |
|
| FH28K-10S-0.5SH(98) |
|
Hersteller: Hirose Electric Co Ltd
Description: RECEPTACLE, 0.5MM PITCH, 9.58MM
Features: Solder Retention
Packaging: Cut Tape (CT)
Contact Finish: Gold
Voltage Rating: 50V
Mounting Type: Surface Mount, Right Angle
Number of Positions: 10
Pitch: 0.020" (0.50mm)
Operating Temperature: -40°C ~ 125°C
Termination: Solder
Height Above Board: 0.100" (2.54mm)
Locking Feature: Flip Lock
Material Flammability Rating: UL94 V-0
Actuator Material: Liquid Crystal Polymer (LCP)
Contact Material: Copper Alloy
FFC, FCB Thickness: 0.30mm
Housing Material: Liquid Crystal Polymer (LCP)
Cable End Type: Tabbed
Flat Flex Type: FFC, FPC
Connector/Contact Type: Contacts, Bottom
Description: RECEPTACLE, 0.5MM PITCH, 9.58MM
Features: Solder Retention
Packaging: Cut Tape (CT)
Contact Finish: Gold
Voltage Rating: 50V
Mounting Type: Surface Mount, Right Angle
Number of Positions: 10
Pitch: 0.020" (0.50mm)
Operating Temperature: -40°C ~ 125°C
Termination: Solder
Height Above Board: 0.100" (2.54mm)
Locking Feature: Flip Lock
Material Flammability Rating: UL94 V-0
Actuator Material: Liquid Crystal Polymer (LCP)
Contact Material: Copper Alloy
FFC, FCB Thickness: 0.30mm
Housing Material: Liquid Crystal Polymer (LCP)
Cable End Type: Tabbed
Flat Flex Type: FFC, FPC
Connector/Contact Type: Contacts, Bottom
auf Bestellung 393 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 8+ | 2.7 EUR |
| 10+ | 2.2 EUR |
| 25+ | 2.02 EUR |
| 50+ | 1.9 EUR |
| 100+ | 1.78 EUR |
| 250+ | 1.65 EUR |
| FH28K-10S-0.5SH(98) |
|
Hersteller: HIROSE / HRS
Description: HIROSE / HRS - FH28K-10S-0.5SH(98) - FFC/FPC-Leiterplattensteckverbinder, 0.5 mm, 10 Kontakt(e), Buchse, FH28K Series
tariffCode: 85366930
rohsCompliant: YES
FFC/FPC-Dicke: 0.3mm
Kontaktüberzug: Vergoldete Kontakte
hazardous: false
rohsPhthalatesCompliant: TBA
Kontaktmaterial: Kupferlegierung
Ausführung: Buchse
usEccn: EAR99
Anzahl der Kontakte: 10Kontakt(e)
euEccn: NLR
Kontaktposition: Unten
Produktpalette: FH28K Series
productTraceability: No
Kontaktanschluss: Oberflächenmontage, abgewinkelt
Anzahl der Reihen: 1 Reihe
Rastermaß: 0.5mm
SVHC: To Be Advised
Description: HIROSE / HRS - FH28K-10S-0.5SH(98) - FFC/FPC-Leiterplattensteckverbinder, 0.5 mm, 10 Kontakt(e), Buchse, FH28K Series
tariffCode: 85366930
rohsCompliant: YES
FFC/FPC-Dicke: 0.3mm
Kontaktüberzug: Vergoldete Kontakte
hazardous: false
rohsPhthalatesCompliant: TBA
Kontaktmaterial: Kupferlegierung
Ausführung: Buchse
usEccn: EAR99
Anzahl der Kontakte: 10Kontakt(e)
euEccn: NLR
Kontaktposition: Unten
Produktpalette: FH28K Series
productTraceability: No
Kontaktanschluss: Oberflächenmontage, abgewinkelt
Anzahl der Reihen: 1 Reihe
Rastermaß: 0.5mm
SVHC: To Be Advised
auf Bestellung 480 Stücke:
Lieferzeit 14-21 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 54+ | 4.65 EUR |
| 75+ | 3.13 EUR |
| 100+ | 2.51 EUR |
