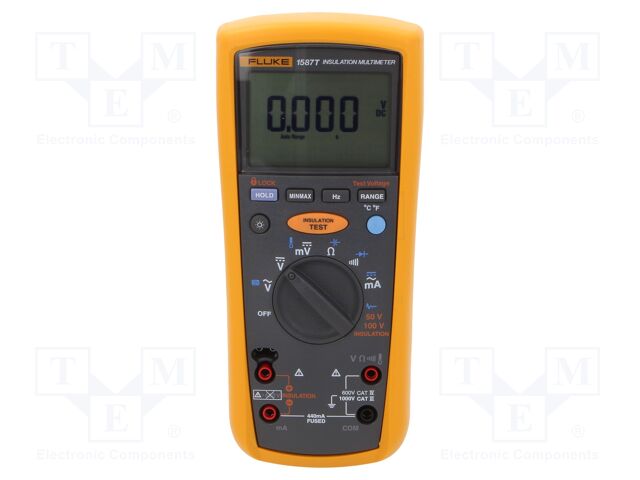

FLUKE-1587 T
Hersteller: FLUKECategory: Portable digital multimeters
Description: Digital multimeter; LCD; (6000); VDC: 0.1÷600mV,6V,60V,600V,1kV
Type of meter: digital multimeter
Measurement: AC current; capacitance; DC current; frequency; insulation resistance; resistance; temperature
Kind of display used: LCD
Display parameters: (6000)
DC voltage measuring range: 0.1...600mV; 6V; 60V; 600V; 1kV
DC voltage measuring accuracy: ±(0.09% + 2 digit)
AC voltage measuring range: 0.1...600mV; 6V; 60V; 600V; 1kV
AC voltage measuring accuracy: ±(1% + 3 digit)
DC current measuring range: 10µA...60mA; 400mA
DC current measuring accuracy: ±(0.2% + 2 digit)
Resistance measuring range: 100mΩ...600Ω; 6kΩ; 60kΩ; 600kΩ; 6MΩ; 50MΩ
Capacitance measuring range: 1nF...1µF; 10µF; 100µF; 9.999mF
Capacitance measuring accuracy: ±(1.2%+ 2 digit)
Resistance measuring accuracy: ±(0.9%+2 digit)
Continuity test: acoustic indication; <25Ω
Power supply: battery LR6 AA 1,5V x4
Standard equipment: crocodile clips FLK-AC285; FLK-80BK-A drop-like K-type probe; harda case FLK-C101; test leads FLK-TL224 SureGrip; test probe FLK-TP165X
Conform to the norm: CAT III 1000V; CAT IV 600V; EN 61010
Dimensions (W x H x D): 100x203x50mm
Measuring instrument features: auto and manual ranging; automatic discharge of capacitance charge function; automatic power-off; automatic stop of insulation test when voltage higher than 30V is detected; for telecommunication; HOLD function; indicates incorrect connection of test leads; insulation resistance test; MIN/MAX/MEDIUM function
Illumination: yes
Optional equipment: FLK-C25 soft cover
Temperature measurement resolution: 0.1°C
Temperature measuring range: -40...537°C
True effective value measurement: True RMS
Test voltage: 50V; 100V
AC current measuring range: 10µA...60mA; 400mA
Frequency measuring range: 10mHz...99.99Hz; 999.9Hz; 9.999kHz; 99.99kHz
Diode test: 1mA @6V
Battery/ rechargeable battery: battery LR6 AA 1,5V x4
Insulation resistance measuring ranges: 10kΩ...100MΩ
Frequency measuring accuracy: ±(0.1%+1 digit)
AC current measuring accuracy: ±(1.5% + 2 digit)
Temperature measurement accuracy: ±(1% + 10 digit)
IP rating: IP40
auf Bestellung 4 Stücke:
Lieferzeit 14-21 Tag (e)
| Anzahl | Preis |
|---|---|
| 1+ | 1221.29 EUR |
