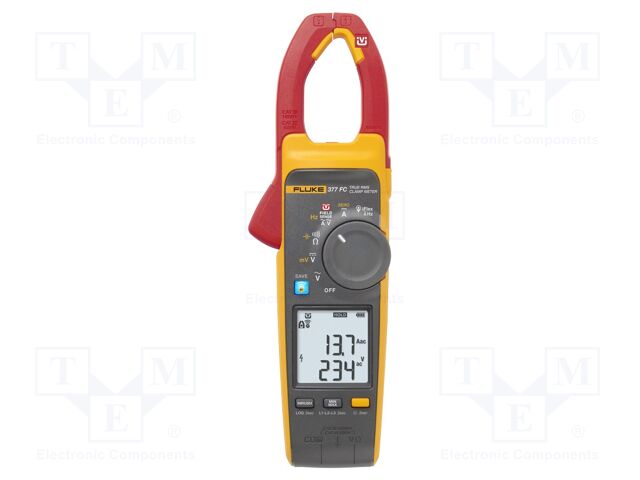

FLUKE-377 FC/E
Hersteller: FLUKECategory: Meters and AC/DC Clamp Probes
Description: Meter: multifunction; digital,pincers type; Øcable: 34mm; LCD
Interface: Bluetooth
Conform to the norm: CAT III 1000V; CAT IV 600V; EN 61010
Illumination: yes
Dimensions: 274x86x47mm
Standard equipment: case; crocodile clip FLK-AC285; FLK-I2500-18 flexible current probe; magnetic hanging strap FLK-TOOLPAK; test leads FLK-TL-224; test probes TP175
Measuring instrument features: automatic power-off; contactless voltage measurement; flexible current probe up to 2500A; HOLD function; low battery indicator; MIN/MAX/MEDIUM function; transfer measurement data wireless
Type of meter: multifunction
Weight with battery: 463g
Test: diodes
Continuity test: acoustic indication; <30Ω
Pollution degree: 2
Max. diameter of measured cable: 34mm
True effective value measurement: True RMS
Measurement: AC current; AC voltage; capacitance; DC current; DC voltage; frequency; inrush current; resistance
Kind of meter: digital; pincers type
AC current measuring range: 100mA...999.9A
Resistance measuring range: 600Ω; 6kΩ; 60kΩ
DC current measuring range: 100mA...999.9A
DC voltage measuring range: 600V; 1kV
AC voltage measuring range: 600V; 1kV
Frequency measuring range: 5...500Hz
Capacitance measuring range: 0.1...100µF; 1mF
CF crest factor: 1.42 @ 1kA; 2.5 @ 600A; 3 @ 500A
Battery/ rechargeable battery: battery LR6 AA 1,5V x2
Software: Fluke Connect
Frequency measuring accuracy: ±(0.5%+5 digit)
Capacitance measuring accuracy: ±(1%+ 4 digit)
AC current measuring accuracy: ±(2% + 5 digit)
DC voltage measuring accuracy: ±(1% + 5 digit)
DC current measuring accuracy: ±(2% + 5 digit)
AC voltage measuring accuracy: ±(1.5% + 5 digit)
Resistance measuring accuracy: ±(1%+5 digit)
Kind of display used: LCD
Power supply: battery LR6 AA 1,5V x2
auf Bestellung 5 Stücke:
Lieferzeit 14-21 Tag (e)
| Anzahl | Preis |
|---|---|
| 1+ | 923.15 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details FLUKE-377 FC/E FLUKE
Category: Meters and AC/DC Clamp Probes, Description: Meter: multifunction; digital,pincers type; Øcable: 34mm; LCD, Interface: Bluetooth, Conform to the norm: CAT III 1000V; CAT IV 600V; EN 61010, Illumination: yes, Dimensions: 274x86x47mm, Standard equipment: case; crocodile clip FLK-AC285; FLK-I2500-18 flexible current probe; magnetic hanging strap FLK-TOOLPAK; test leads FLK-TL-224; test probes TP175, Measuring instrument features: automatic power-off; contactless voltage measurement; flexible current probe up to 2500A; HOLD function; low battery indicator; MIN/MAX/MEDIUM function; transfer measurement data wireless, Type of meter: multifunction, Weight with battery: 463g, Test: diodes, Continuity test: acoustic indication; .
Weitere Produktangebote FLUKE-377 FC/E
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis |
|---|---|---|---|---|---|
 |
FLUKE-377 FC/E | Hersteller : FLUKE |
Description: FLUKE - FLUKE-377 FC/E - Strommesszange, AC/DC-Strom, AC/DC-Spannung, Kapazität, Durchgang, Widerstand, Temperatur, 2.5 kA tariffCode: 90303100 Messwert Gleichspannung, max.: 1kV Messwert Wechselspannung, max.: 1kV Messwert Widerstand, max.: 60kohm rohsCompliant: YES hazardous: false rohsPhthalatesCompliant: TBA usEccn: 3A992.a Backenöffnung, max.: 34mm euEccn: NLR DMM-Messverfahren: Echteffektivwert Anzahl der Stellen: - DMM-Funktionen: AC/DC-Strom, AC/DC-Spannung, Kapazität, Durchgang, Widerstand, Temperatur Produktpalette: - productTraceability: No Messwert Wechselstrom, max.: 2.5kA Bereichswahl: Automatisch SVHC: No SVHC (19-Jan-2021) |
auf Bestellung 1 Stücke: Lieferzeit 14-21 Tag (e) |
