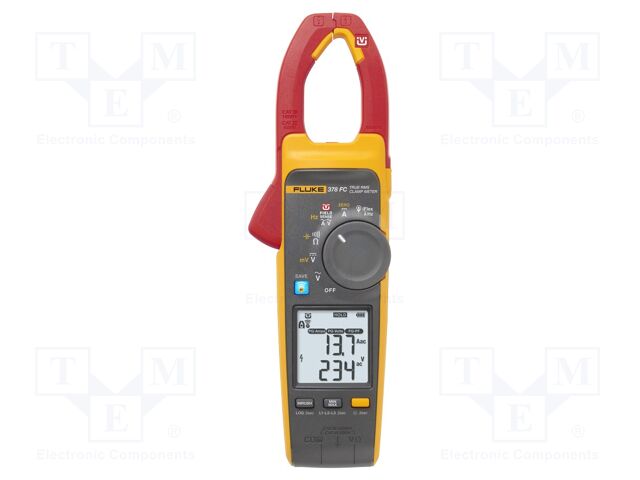

FLUKE-378 FC/E
Hersteller: FLUKE
Category: Meters and AC/DC Clamp Probes
Description: Meter: multifunction; digital,AC/DC pincers type; Øcable: 34mm
Standard equipment: case; crocodile clip FLK-AC285; FLK-I2500-18 flexible current probe; magnetic hanging strap FLK-TOOLPAK; test leads FLK-TL-224; test probes TP175
AC current measuring range: 100mA...999.9A
Capacitance measuring range: 0.1...100µF; 1mF
Test: diodes
Battery/ rechargeable battery: battery LR6 AA 1,5V x2
Capacitance measuring accuracy: ±(1%+ 4 digit)
Measuring instrument features: automatic power-off; contactless voltage measurement; flexible current probe up to 2500A; HOLD function; low battery indicator; MIN/MAX/MEDIUM function; power quality indicator shows whether a problem is in the equipment or the power line; transfer measurement data wireless
Power supply: battery LR6 AA 1,5V x2
DC voltage measuring accuracy: ±(1% + 5 digit)
Kind of meter: AC/DC pincers type; digital
DC current measuring accuracy: ±(2% + 5 digit)
Pollution degree: 2
Kind of display used: LCD
Continuity test: acoustic indication; <30Ω
True effective value measurement: True RMS
DC current measuring range: 100mA...999.9A
DC voltage measuring range: 600V; 1kV
AC current measuring accuracy: ±(2% + 5 digit)
Max. diameter of measured cable: 34mm
Weight with battery: 463g
Dimensions: 274x86x47mm
Frequency measuring range: 5...500Hz
CF crest factor: 1.42 @ 1kA; 2.5 @ 600A; 3 @ 500A
AC voltage measuring range: 600V; 1kV
Resistance measuring range: 600Ω; 6kΩ; 60kΩ
Frequency measuring accuracy: ±(0.5%+5 digit)
Interface: Bluetooth
Conform to the norm: CAT III 1000V; CAT IV 600V; EN 61010
Resistance measuring accuracy: ±(1%+5 digit)
Illumination: yes
AC voltage measuring accuracy: ±(1.5% + 5 digit)
Type of meter: multifunction
Software: Fluke Connect
Measurement: AC current; AC voltage; capacitance; DC current; DC voltage; frequency; inrush current; resistance
Produktrezensionen
Produktbewertung abgeben
Technische Details FLUKE-378 FC/E FLUKE
Category: Meters and AC/DC Clamp Probes, Description: Meter: multifunction; digital,AC/DC pincers type; Øcable: 34mm, Standard equipment: case; crocodile clip FLK-AC285; FLK-I2500-18 flexible current probe; magnetic hanging strap FLK-TOOLPAK; test leads FLK-TL-224; test probes TP175, AC current measuring range: 100mA...999.9A, Capacitance measuring range: 0.1...100µF; 1mF, Test: diodes, Battery/ rechargeable battery: battery LR6 AA 1,5V x2, Capacitance measuring accuracy: ±(1%+ 4 digit), Measuring instrument features: automatic power-off; contactless voltage measurement; flexible current probe up to 2500A; HOLD function; low battery indicator; MIN/MAX/MEDIUM function; power quality indicator shows whether a problem is in the equipment or the power line; transfer measurement data wireless, Power supply: battery LR6 AA 1,5V x2, DC voltage measuring accuracy: ±(1% + 5 digit), Kind of meter: AC/DC pincers type; digital, DC current measuring accuracy: ±(2% + 5 digit), Pollution degree: 2, Kind of display used: LCD, Continuity test: acoustic indication; .
Weitere Produktangebote FLUKE-378 FC/E nach Preis ab 1957.32 EUR bis 2150.89 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde | ||||
|---|---|---|---|---|---|---|---|---|---|
 |
FLUKE-378 FC/E | FLUKE |
 Description: FLUKE - FLUKE-378 FC/E - STROMMESSZANGE, 2.5KA, TRMS, AUTOtariffCode: 90303100 Messwert Gleichspannung, max.: 1kV Messwert Wechselspannung, max.: 1kV Messwert Widerstand, max.: 60kohm euEccn: NLR rohsCompliant: YES hazardous: false rohsPhthalatesCompliant: TBA isCanonical: Y Backenöffnung, max.: 34mm SVHC: No SVHC (19-Jan-2021) Anzahl der Stellen: - DMM-Messverfahren: Echteffektivwert DMM-Funktionen: AC/DC-Strom, AC/DC-Spannung, Kapazität, Durchgang, Widerstand, Temperatur Produktpalette: - productTraceability: No usEccn: 3A992.a Messwert Wechselstrom, max.: 2.5kA Bereichswahl: Automatisch |
auf Bestellung 4 Stücke: Lieferzeit 14-21 Tag (e) |
|
| FLUKE-378 FC/E |
|
Hersteller: FLUKE
Description: FLUKE - FLUKE-378 FC/E - STROMMESSZANGE, 2.5KA, TRMS, AUTO
tariffCode: 90303100
Messwert Gleichspannung, max.: 1kV
Messwert Wechselspannung, max.: 1kV
Messwert Widerstand, max.: 60kohm
euEccn: NLR
rohsCompliant: YES
hazardous: false
rohsPhthalatesCompliant: TBA
isCanonical: Y
Backenöffnung, max.: 34mm
SVHC: No SVHC (19-Jan-2021)
Anzahl der Stellen: -
DMM-Messverfahren: Echteffektivwert
DMM-Funktionen: AC/DC-Strom, AC/DC-Spannung, Kapazität, Durchgang, Widerstand, Temperatur
Produktpalette: -
productTraceability: No
usEccn: 3A992.a
Messwert Wechselstrom, max.: 2.5kA
Bereichswahl: Automatisch
Description: FLUKE - FLUKE-378 FC/E - STROMMESSZANGE, 2.5KA, TRMS, AUTO
tariffCode: 90303100
Messwert Gleichspannung, max.: 1kV
Messwert Wechselspannung, max.: 1kV
Messwert Widerstand, max.: 60kohm
euEccn: NLR
rohsCompliant: YES
hazardous: false
rohsPhthalatesCompliant: TBA
isCanonical: Y
Backenöffnung, max.: 34mm
SVHC: No SVHC (19-Jan-2021)
Anzahl der Stellen: -
DMM-Messverfahren: Echteffektivwert
DMM-Funktionen: AC/DC-Strom, AC/DC-Spannung, Kapazität, Durchgang, Widerstand, Temperatur
Produktpalette: -
productTraceability: No
usEccn: 3A992.a
Messwert Wechselstrom, max.: 2.5kA
Bereichswahl: Automatisch
auf Bestellung 4 Stücke:
Lieferzeit 14-21 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 1+ | 2150.89 EUR |
| 3+ | 1957.32 EUR |
