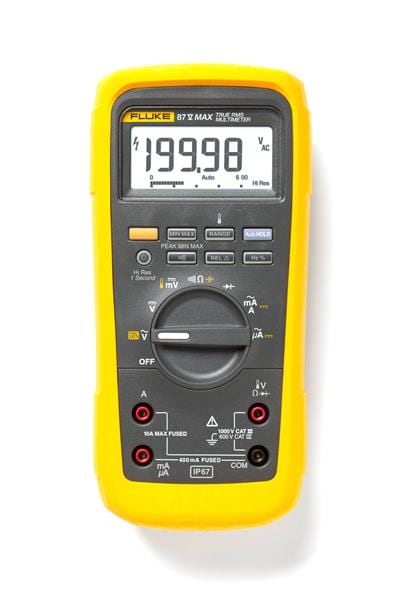

FLUKE-87V-MAX
Hersteller: FLUKECategory: Portable digital multimeters
Description: Digital multimeter; LCD; (6000/20000); Bargraph: 33segm.40x/s
Power supply: battery LR6 AA 1,5V x3
IP rating: IP67
Conform to the norm: CAT III 1000V; CAT IV 600V; EN 61010
Illumination: yes
Related items: FLK-80BK-A; FLK-80PJ-1; FLK-80PJ-9; FLK-80PJ-EXT; FLK-80PK-1; FLK-80PK-3A; FLK-80PK-8; FLK-80PK-9; FLK-80PK-11; FLK-80PK-22; FLK-80PK-24; FLK-80PK-25; FLK-80PK-26; FLK-80PK-27; FLK-80PR-60; FLK-80PT-EXT; FLK-80T-150UA; POM-4408; POM-5519A; POM-5673B
Standard equipment: crocodile clip FLK-AC175 x2; FLK-80BK-A drop-like K-type probe; FLK-TL175 test leads
Measuring instrument features: auto and manual ranging; automatic power-off; built-in thermometer; filter ensuring voltage and frequency measuring accuracy; HOLD function; impact resistant holster; indicates incorrect connection of test leads; MIN/MAX/MEDIUM function; PEAK HOLD function; test leads resistance compensation
Type of meter: digital multimeter
Weight with battery: 700g
Optional equipment: 400A AC/DC FLK-I410 current clamp probe; FLK-C25 soft cover; FLK-TL238 set; FLK-TOOLPAK strap with magnet for suspending the meter
Continuity test: acoustic indication
Pollution degree: 2
Temperature measurement resolution: 0.1°C
Conductance measurement: 0.01...60nS
Temperature measuring range: -200...1090°C
True effective value measurement: True RMS AC
Bargraph: 33 segm. 40x/s
Measurement: AC current; AC voltage; capacitance; DC current; DC voltage; frequency; resistance; temperature
Dimensions (W x H x D): 63x198x100mm
AC current measuring range: 0.1...600µA; 6mA; 60mA; 400mA; 6A; 10A; (20A <30s)
Resistance measuring range: 100mΩ...600Ω; 6kΩ; 60kΩ; 600kΩ; 6MΩ; 50MΩ
DC current measuring range: 0.1...600µA; 6mA; 60mA; 400mA; 6A; 10A; 20A < 30s
DC voltage measuring range: 0.1...600mV; 6V; 60V; 600V; 1kV
AC voltage measuring range: 0.1...600mV; 6V; 60V; 600V; 1kV
Frequency measuring range: 10mHz...199.99Hz; 1999.9Hz; 19.999kHz; 199.99kHz
Capacitance measuring range: 10pF...10nF; 100nF; 1µF; 10µF; 100µF; 9.999mF
Diode test: 1mA @3V
Battery/ rechargeable battery: battery LR6 AA 1,5V x3
Display parameters: (6000/20000)
Frequency measuring accuracy: ±(0.005%+1 digit)
Capacitance measuring accuracy: ±(1%+ 2 digit)
AC current measuring accuracy: ±(1% + 2 digit)
DC voltage measuring accuracy: ±(0.05% + 1 digit)
DC current measuring accuracy: ±(0.2% + 4 digit)
AC voltage measuring accuracy: ±(0.7% + 4 digit)
Conductance measuring accuracy: ±(1% + 10digit)
Resistance measuring accuracy: ±(0.2%+1 digit)
Temperature measurement accuracy: ±(1% + 10 digit)
Kind of display used: LCD
auf Bestellung 7 Stücke:
Lieferzeit 14-21 Tag (e)
| Anzahl | Preis |
|---|---|
| 1+ | 955.47 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details FLUKE-87V-MAX FLUKE
Category: Portable digital multimeters, Description: Digital multimeter; LCD; (6000/20000); Bargraph: 33segm.40x/s, Power supply: battery LR6 AA 1,5V x3, IP rating: IP67, Conform to the norm: CAT III 1000V; CAT IV 600V; EN 61010, Illumination: yes, Related items: FLK-80BK-A; FLK-80PJ-1; FLK-80PJ-9; FLK-80PJ-EXT; FLK-80PK-1; FLK-80PK-3A; FLK-80PK-8; FLK-80PK-9; FLK-80PK-11; FLK-80PK-22; FLK-80PK-24; FLK-80PK-25; FLK-80PK-26; FLK-80PK-27; FLK-80PR-60; FLK-80PT-EXT; FLK-80T-150UA; POM-4408; POM-5519A; POM-5673B, Standard equipment: crocodile clip FLK-AC175 x2; FLK-80BK-A drop-like K-type probe; FLK-TL175 test leads, Measuring instrument features: auto and manual ranging; automatic power-off; built-in thermometer; filter ensuring voltage and frequency measuring accuracy; HOLD function; impact resistant holster; indicates incorrect connection of test leads; MIN/MAX/MEDIUM function; PEAK HOLD function; test leads resistance compensation, Type of meter: digital multimeter, Weight with battery: 700g, Optional equipment: 400A AC/DC FLK-I410 current clamp probe; FLK-C25 soft cover; FLK-TL238 set; FLK-TOOLPAK strap with magnet for suspending the meter, Continuity test: acoustic indication, Pollution degree: 2, Temperature measurement resolution: 0.1°C, Conductance measurement: 0.01...60nS, Temperature measuring range: -200...1090°C, True effective value measurement: True RMS AC, Bargraph: 33 segm. 40x/s, Measurement: AC current; AC voltage; capacitance; DC current; DC voltage; frequency; resistance; temperature, Dimensions (W x H x D): 63x198x100mm, AC current measuring range: 0.1...600µA; 6mA; 60mA; 400mA; 6A; 10A; (20A .
Weitere Produktangebote FLUKE-87V-MAX nach Preis ab 957.73 EUR bis 1036.62 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis | ||||
|---|---|---|---|---|---|---|---|---|---|
 |
FLUKE-87V-MAX | Hersteller : Fluke Electronics |
Description: INDUSTRIAL TRUE RMS HEAVY DUTY M Features: Backlight, Hold, Min/Max/Ave Packaging: Bulk Style: Handheld Function: Voltage, Current, Resistance, Capacitance, Temperature, Frequency Type: Digital (DMM) Ranging: Auto Ratings: CAT III 1000V, CAT IV 600V Display Count: 19999 Response: True RMS Part Status: Active Display Digits: 5 |
auf Bestellung 14 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||
 |
FLUKE-87V-MAX | Hersteller : FLUKE |
Description: FLUKE - FLUKE-87V-MAX - Digitalmultimeter, automatisch, manuell, 1kV AC/DC, 10A AC/DC, TRMS, 19999 Zählwerte, 4.5-stellig tariffCode: 90303100 Messwert Gleichspannung, max.: 1kV Messwert Wechselspannung, max.: 1kV Messwert Widerstand, max.: 50Mohm Messwert Gleichstrom, max.: 10A rohsCompliant: Y-EX hazardous: false rohsPhthalatesCompliant: TBA usEccn: 3A992.a Schritte: 19999 Herstellergewährleistung: Begrenzte Lebenszeitgewährleistung euEccn: NLR Anzahl der Stellen: 4.5 DMM-Messverfahren: Echteffektivwert DMM-Funktionen: AC/DC-Strom, AC/DC-Spannung, Kapazität, Durchgang, Diode, Frequenz, Widerstand, Temperatur Produktpalette: - productTraceability: No Messwert Wechselstrom, max.: 10A Bereichswahl: Automatisch, manuell SVHC: No SVHC (15-Jun-2015) |
auf Bestellung 10 Stücke: Lieferzeit 14-21 Tag (e) |
|||||
| FLUKE-87V-MAX | Hersteller : Pomona |
Digital Multimeter |
auf Bestellung 10 Stücke: Lieferzeit 14-21 Tag (e) |
|
|||||
| FLUKE-87V-MAX | Hersteller : Pomona |
Digital Multimeter |
auf Bestellung 10 Stücke: Lieferzeit 14-21 Tag (e) |
|
|||||
| FLUKE-87V-MAX | Hersteller : Fluke | Digital Multimeter |
auf Bestellung 9 Stücke: Lieferzeit 14-21 Tag (e) |
|
|||||
| FLUKE 87-V MAX | Hersteller : FLUKE | FLK-87VMAX Portable digital multimeters |
Produkt ist nicht verfügbar |
||||||
 |
FLUKE-87V-MAX | Hersteller : Fluke |
Digital Multimeters Industrial True rms Heavy Duty Multimeter |
Produkt ist nicht verfügbar |
