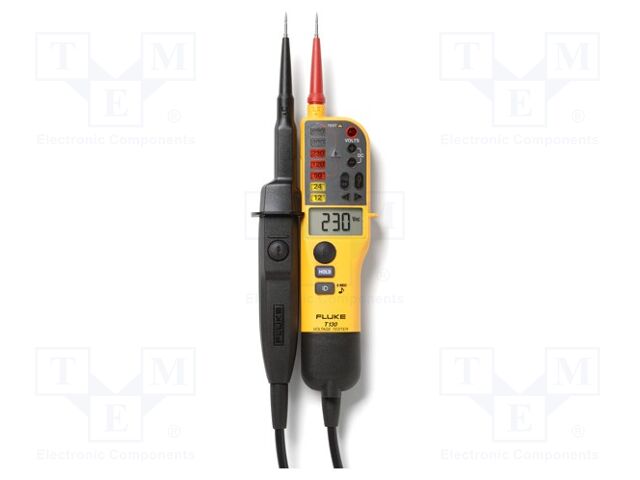

Fluke T130

Hersteller: FLUKE
Category: Indicators, Voltage & Continuity Testers
Description: Tester: electrical; LEDs,LCD; 3,5 digit; 6÷690VAC; 0÷400Hz; IP64
Type of tester: electrical
Kind of display used: LCD; LEDs
Conform to the norm: CAT III 690V; CAT IV 600V; EN 61010
Measuring instrument features: checks AC/DC voltage levels (6...690V) even at discharged batteries; HOLD function; indicates phase sequence; polarity identification; polarization indicator; possibility to turning off a buzzer; RCD triggering via a button
Phase-to-phase voltage range for phase sequence indication: 6...690V AC
Bandwidth for AC voltage measurements: 0...400Hz
Power supply: battery LR03 AAA 1,5V x2
DC voltage measuring accuracy: ±(3% + 5 digit)
Body dimensions: 255x78x35mm
Continuity test: acoustic indication; optical indication; 0Ω...400kΩ
DC voltage measuring range: 6V; 12V; 24V; 50V; 120V; 230V; 400V; 690V
Weight with battery: 270g
AC voltage measuring range: 6V; 12V; 24V; 50V; 120V; 230V; 400V; 690V
AC voltage measuring accuracy: ±(3% + 5 digit)
Additional functions: illumination lamp
IP rating: IP64
Measurement: AC voltage; DC voltage
Display parameters: 3,5 digit
Battery/ rechargeable battery: battery LR03 AAA 1,5V x2

Hersteller: FLUKE
Description: FLUKE - FLUKE T130 - Spannungsprüfer, 0 bis 4 kOhm, 6V bis 690V, LCD, -15 °C, 45 °C
tariffCode: 90303370
euEccn: NLR
rohsCompliant: Y-EX
Betriebstemperatur: -15°C bis +45°C
hazardous: false
rohsPhthalatesCompliant: TBA
isCanonical: Y
Spannungsmessbereich AC: 6V bis 690V
Messanzeige: LCD
Netzsteckertyp: -
Betriebstemperatur, min.: -15°C
SVHC: To Be Advised
Produktpalette: -
productTraceability: No
usEccn: 3A992
Gewicht: 280g
Betriebstemperatur, max.: 45°C
