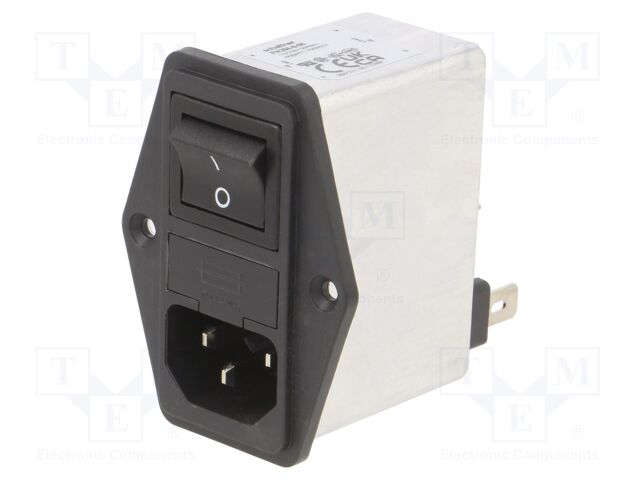

800338-SF SCHAFFNER / TE Connectivity
Hersteller: SCHAFFNER / TE Connectivity
Category: IEC 60320 connectors
Description: Connector: AC supply; socket; male; Inom: 6A; Ir: 373uA; 250VAC; 1MΩ
Operating temperature: -25...85°C
Trade name: power entry module; power module
Rated voltage: 250V AC
Manufacturer series: FN284
Connector variant: C14 (E)
Current rating: 6A
Capacitance Cx: 0.22µF
Inductance: 0.45mH
Design: filter; fuse x2
Resistance: 1MΩ
Mechanical mounting: for panel mounting; screw
Leads: connectors
Fuse size: 5x20mm
Type of connector: AC supply
Caution!: fuses not included
Leakage current: 373µA
Leads dimensions: 6.3x0.8mm
Conform to the norm: CSA 22.2 No. 8 1986; IEC EN 60939; UL 1283
Kind of connector: male
Connector: socket
Capacitance Cy: 2.2nF
| Anzahl | Privatkunde |
|---|---|
| 3+ | 42.3 EUR |
| 5+ | 39.31 EUR |
| 10+ | 37.08 EUR |
| 20+ | 34.95 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details 800338-SF SCHAFFNER / TE Connectivity
Category: IEC 60320 connectors, Description: Connector: AC supply; socket; male; Inom: 6A; Ir: 373uA; 250VAC; 1MΩ, Operating temperature: -25...85°C, Trade name: power entry module; power module, Rated voltage: 250V AC, Manufacturer series: FN284, Connector variant: C14 (E), Current rating: 6A, Capacitance Cx: 0.22µF, Inductance: 0.45mH, Design: filter; fuse x2, Resistance: 1MΩ, Mechanical mounting: for panel mounting; screw, Leads: connectors, Fuse size: 5x20mm, Type of connector: AC supply, Caution!: fuses not included, Leakage current: 373µA, Leads dimensions: 6.3x0.8mm, Conform to the norm: CSA 22.2 No. 8 1986; IEC EN 60939; UL 1283, Kind of connector: male, Connector: socket, Capacitance Cy: 2.2nF.
Weitere Produktangebote 800338-SF nach Preis ab 38.72 EUR bis 66.71 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
FN284-6-06 | TE Connectivity / Schaffner |
AC Power Entry Modules FN284-6/06 |
auf Bestellung 184 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||
 |
FN284-6-06 | TE Connectivity Schaffner |
Description: PWR ENT MOD RCPT IEC320-C14 PNL Number of Positions: 3 Mounting Type: Panel Mount, Flange Connector Type: Receptacle, Male Blades - Module Filter Type: Filtered (EMI, RFI) - Commercial Features: Front or Rear Side Mount Packaging: Tray Current Rating - Filter: 6A Part Status: Active Fuse Holder, Drawer: Fuse Holder, Twin Fused Switch Features: Switch On-Off Accomodates a Fuse: Yes (Fuse Not Included) Material Flammability Rating: UL94 V-2 Connector Style: IEC 320-C14 Panel Cutout Dimensions: Rectangular - 29.00mm x 60.00mm Ingress Protection: IP40 Approval Agency: CQC, CSA, ENEC, UL Termination: Quick Connect - 0.250" (6.3mm) |
auf Bestellung 296 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||
 |
FN 284-6-06 | SCHAFFNER - TE CONNECTIVITY |
Description: SCHAFFNER - TE CONNECTIVITY - FN 284-6-06 - Gerätesteckverbindermodul mit Filter, IEC C14, Universell, 6 A, 250 VAC, 2-poliger Schalter tariffCode: 85366990 euEccn: NLR rohsCompliant: YES Schaltertyp: 2-poliger Schalter hazardous: false rohsPhthalatesCompliant: YES Sicherungsgröße: 5mm x 20mm isCanonical: Y Steckverbindermontage: Einrast-, Flanschmontage IP-Schutzart: IP40 Anwendungen des Gerätestecker-Kombielements: Universell Nennstrom: 6A SVHC: No SVHC (14-Jun-2023) Steckverbinder: IEC C14 Sicherungshalter: 2-poliger Sicherungshalter Produktpalette: FN 280 productTraceability: No usEccn: EAR99 Nennspannung: 250VAC Steckverbinderanschlüsse: Steckanschluss |
auf Bestellung 970 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||||
 |
FN284-6-06 | TE Connectivity |
Power Entry Module Filtered M 3 POS 250VACVAC 6A Fuse/Switch ST 1 Port |
auf Bestellung 66 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||||
|
|
FN284-6-06 | Schaffner |
Power Entry Module Filtered M 3 POS 250VACVAC 6A Fuse/Switch ST 1 Port |
auf Bestellung 1 Stücke: Lieferzeit 14-21 Tag (e) |
Im Einkaufswagen Stück im Wert von UAH | ||||||||||||
|
|
FN284-6-06 | Schaffner |
Power Entry Module Filtered M 3 POS 250VACVAC 6A Fuse/Switch ST 1 Port |
auf Bestellung 1 Stücke: Lieferzeit 14-21 Tag (e) |
Im Einkaufswagen Stück im Wert von UAH | ||||||||||||
|
|
FN284-6-06 | Schaffner |
Power Entry Module Filtered M 3 POS 250VACVAC 6A Fuse/Switch ST 1 Port |
auf Bestellung 1 Stücke: Lieferzeit 14-21 Tag (e) |
Im Einkaufswagen Stück im Wert von UAH |
| FN284-6-06 |
|
Hersteller: TE Connectivity / Schaffner
AC Power Entry Modules FN284-6/06
AC Power Entry Modules FN284-6/06
auf Bestellung 184 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 1+ | 55.31 EUR |
| 10+ | 46.74 EUR |
| 25+ | 46.18 EUR |
| 40+ | 40.59 EUR |
| 200+ | 40.36 EUR |
| 600+ | 38.72 EUR |
| FN284-6-06 |
|
Hersteller: TE Connectivity Schaffner
Description: PWR ENT MOD RCPT IEC320-C14 PNL
Number of Positions: 3
Mounting Type: Panel Mount, Flange
Connector Type: Receptacle, Male Blades - Module
Filter Type: Filtered (EMI, RFI) - Commercial
Features: Front or Rear Side Mount
Packaging: Tray
Current Rating - Filter: 6A
Part Status: Active
Fuse Holder, Drawer: Fuse Holder, Twin Fused
Switch Features: Switch On-Off
Accomodates a Fuse: Yes (Fuse Not Included)
Material Flammability Rating: UL94 V-2
Connector Style: IEC 320-C14
Panel Cutout Dimensions: Rectangular - 29.00mm x 60.00mm
Ingress Protection: IP40
Approval Agency: CQC, CSA, ENEC, UL
Termination: Quick Connect - 0.250" (6.3mm)
Description: PWR ENT MOD RCPT IEC320-C14 PNL
Number of Positions: 3
Mounting Type: Panel Mount, Flange
Connector Type: Receptacle, Male Blades - Module
Filter Type: Filtered (EMI, RFI) - Commercial
Features: Front or Rear Side Mount
Packaging: Tray
Current Rating - Filter: 6A
Part Status: Active
Fuse Holder, Drawer: Fuse Holder, Twin Fused
Switch Features: Switch On-Off
Accomodates a Fuse: Yes (Fuse Not Included)
Material Flammability Rating: UL94 V-2
Connector Style: IEC 320-C14
Panel Cutout Dimensions: Rectangular - 29.00mm x 60.00mm
Ingress Protection: IP40
Approval Agency: CQC, CSA, ENEC, UL
Termination: Quick Connect - 0.250" (6.3mm)
auf Bestellung 296 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 1+ | 62.75 EUR |
| 10+ | 53.32 EUR |
| 40+ | 48.35 EUR |
| 80+ | 46.05 EUR |
| 120+ | 44.76 EUR |
| 280+ | 42.16 EUR |
| FN 284-6-06 |
|
Hersteller: SCHAFFNER - TE CONNECTIVITY
Description: SCHAFFNER - TE CONNECTIVITY - FN 284-6-06 - Gerätesteckverbindermodul mit Filter, IEC C14, Universell, 6 A, 250 VAC, 2-poliger Schalter
tariffCode: 85366990
euEccn: NLR
rohsCompliant: YES
Schaltertyp: 2-poliger Schalter
hazardous: false
rohsPhthalatesCompliant: YES
Sicherungsgröße: 5mm x 20mm
isCanonical: Y
Steckverbindermontage: Einrast-, Flanschmontage
IP-Schutzart: IP40
Anwendungen des Gerätestecker-Kombielements: Universell
Nennstrom: 6A
SVHC: No SVHC (14-Jun-2023)
Steckverbinder: IEC C14
Sicherungshalter: 2-poliger Sicherungshalter
Produktpalette: FN 280
productTraceability: No
usEccn: EAR99
Nennspannung: 250VAC
Steckverbinderanschlüsse: Steckanschluss
Description: SCHAFFNER - TE CONNECTIVITY - FN 284-6-06 - Gerätesteckverbindermodul mit Filter, IEC C14, Universell, 6 A, 250 VAC, 2-poliger Schalter
tariffCode: 85366990
euEccn: NLR
rohsCompliant: YES
Schaltertyp: 2-poliger Schalter
hazardous: false
rohsPhthalatesCompliant: YES
Sicherungsgröße: 5mm x 20mm
isCanonical: Y
Steckverbindermontage: Einrast-, Flanschmontage
IP-Schutzart: IP40
Anwendungen des Gerätestecker-Kombielements: Universell
Nennstrom: 6A
SVHC: No SVHC (14-Jun-2023)
Steckverbinder: IEC C14
Sicherungshalter: 2-poliger Sicherungshalter
Produktpalette: FN 280
productTraceability: No
usEccn: EAR99
Nennspannung: 250VAC
Steckverbinderanschlüsse: Steckanschluss
auf Bestellung 970 Stücke:
Lieferzeit 14-21 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 4+ | 66.18 EUR |
| 5+ | 57.31 EUR |
| 10+ | 49.08 EUR |
| 25+ | 44.49 EUR |
| FN284-6-06 |
|
Hersteller: TE Connectivity
Power Entry Module Filtered M 3 POS 250VACVAC 6A Fuse/Switch ST 1 Port
Power Entry Module Filtered M 3 POS 250VACVAC 6A Fuse/Switch ST 1 Port
auf Bestellung 66 Stücke:
Lieferzeit 14-21 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 3+ | 66.71 EUR |
| 10+ | 49.78 EUR |
| 40+ | 44.29 EUR |
| FN284-6-06 |
|
Hersteller: Schaffner
Power Entry Module Filtered M 3 POS 250VACVAC 6A Fuse/Switch ST 1 Port
Power Entry Module Filtered M 3 POS 250VACVAC 6A Fuse/Switch ST 1 Port
auf Bestellung 1 Stücke:
Lieferzeit 14-21 Tag (e)
| FN284-6-06 |
|
Hersteller: Schaffner
Power Entry Module Filtered M 3 POS 250VACVAC 6A Fuse/Switch ST 1 Port
Power Entry Module Filtered M 3 POS 250VACVAC 6A Fuse/Switch ST 1 Port
auf Bestellung 1 Stücke:
Lieferzeit 14-21 Tag (e)
| FN284-6-06 |
|
Hersteller: Schaffner
Power Entry Module Filtered M 3 POS 250VACVAC 6A Fuse/Switch ST 1 Port
Power Entry Module Filtered M 3 POS 250VACVAC 6A Fuse/Switch ST 1 Port
auf Bestellung 1 Stücke:
Lieferzeit 14-21 Tag (e)
